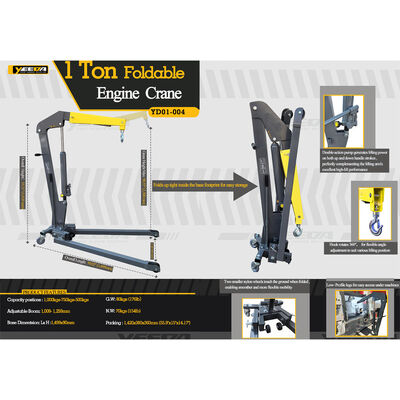

Foldable 1 Ton Capacity Engine Crane with Adjustable Boom for Garage and Shop Use

This foldable 1 ton engine crane is designed for garage, workshop, and auto repair tasks that require controlled lifting, positioning, and removal of engines or similar workshop loads. Model YD01-004 features a steel frame, an adjustable boom, a double-action hydraulic pump, and a space-saving foldable structure, making it practical for daily maintenance environments where floor space and maneuverability matter.

The crane provides three capacity positions at 1000kg, 750kg, and 500kg, allowing operators to match lifting performance to different workload requirements. The adjustable boom ranges from 1009mm to 1259mm, helping adapt the lifting arm to various engine bays, repair stands, and shop layouts. With low-profile legs, the crane can be positioned more easily under vehicles and equipment, while the foldable frame stores compactly within the base footprint when not in use.

Operation is supported by a double-action pump that generates lifting pressure on both up and down handle strokes, working with the lifting arm to provide steady handling. The hook rotates 360 degrees to assist with angle adjustment and alignment during lifting. When folded, two smaller nylon wheels contact the ground to help move the unit with less effort around the workshop.
