Foldable 2 Ton Shop Crane with Double Speed Pump for Engine Hoist and Hydraulic Lifting
Product Details
| Adjustableboom: | Yes, With Multiple Positions | Finish: | Powder-coated |
|---|---|---|---|
| Key Dimensions: | 169CM Maximum Lifting Height | Base Structure: | H-frame Base, With 2 Front Castors |
| Wheelbase: | Front 1020mm, Rear 660mm | Base Size: | 270mm×270mm (10.6"×10.6") |
| Boom Length: | Max. 1360mm | Max Lifting Height: | 2015mm (79.3") |
| Package Dimensions: | 92 Cm × 45 Cm × 18 Cm | Panel Function: | 360° Rotatable And Fixable Face Plate |
| Material: | Heavy-duty Steel | Payment Term: | T/T 30% Deposit, 70% Before Shipment |
| Basic Info: | Pick-Up Truck Mount Crane | Product Size: | 900 × 700 × 950 Mm |
| Base Width: | 950mm (outside), 800mm (inside) | ||
| Highlight |
Foldable Shop Crane,2 Ton Capacity Engine Hoist,Double Speed Pump Hydraulic Crane |
||
Product Description

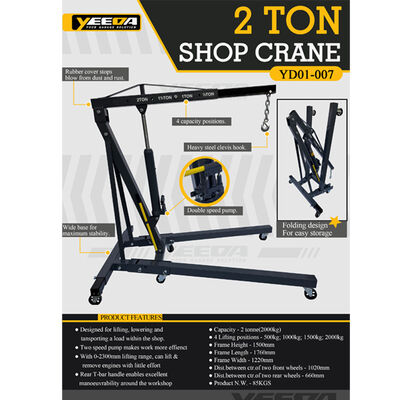

This foldable 2 ton shop crane is designed for lifting, lowering, and transporting loads within shop environments. Model YD01-007 is built for garage and workshop applications where engine handling, equipment positioning, and controlled load movement are required. The frame features a wide base for enhanced stability, and the folding design allows for convenient storage when not in use.
The crane offers four capacity positions at 500kg, 1000kg, 1500kg, and 2000kg, corresponding to the marked boom positions shown as 1/2TON, 1TON, 1-1/2TON, and 2TON. With a lifting range of 0-2300mm, it supports shop tasks involving engine raising and removal with reduced effort. A double speed pump ensures efficient lifting operations, while the rear T-bar handle provides superior maneuverability around the workshop.
Additional features include a heavy steel clevis hook for secure load attachment, rubber cover stops to protect against dust and rust, and castor wheels arranged on a wide base frame. Frame dimensions are 1500mm height, 1760mm length, and 1220mm width. The distance between centers of the two front wheels is 1020mm, and between the two rear wheels is 660mm. Product net weight is 85kg.
| Item | Specification |
|---|---|
| Model | YD01-007 |
| Capacity | 2000kg / 1500kg / 1000kg / 500kg |
| Lifting Positions | 4 |
| Lifting Range | 0-2300mm |
| Frame Height | 1500mm |
| Frame Length | 1760mm |
| Frame Width | 1220mm |
| Front Wheel Centre Distance | 1020mm |
| Rear Wheel Centre Distance | 660mm |
| Net Weight | 85kg |
| Hook | Heavy Steel Clevis Hook |
| Pump | Double Speed Pump |
| Base | Wide Base for Stability |
| Handle | Rear T-Bar Handle |
| Storage | Folding Design |
| Protection Detail | Rubber Cover Stops |
- Foldable design for easy storage after shop use
- 2 ton capacity with 4 capacity positions
- Double speed pump for efficient lifting control
- Wide base for maximum stability
- Rear T-bar handle for workshop maneuverability
- Heavy steel clevis hook for load connection
- Rubber cover stops to help protect from dust and rust
- 0-2300mm lifting range for engine lifting tasks
This 2 ton shop crane is suitable for garage and workshop applications such as lifting, lowering, and transporting engines or similar shop loads. The folding structure and wheelbase layout support use in areas where space and movement control matter.
