1500LB Capacity Engine Stand with 60:1 Gear-Driven Rotation and Ergonomic Comfort Handle for Garage Use

Large Image : 1500LB Capacity Engine Stand with 60:1 Gear-Driven Rotation and Ergonomic Comfort Handle for Garage Use

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD04-001A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No:	YD04-001A	Main Material:	High-grade Steel (Q345 Low-carbon Steel)
Base Size:	270mm×270mm (10.6"×10.6")	Test Video:	Provided
Basic Info:	Pick-Up Truck Mount Crane	Nett Weight:	23 Kg
Safe Working Capacity:	500 Kg	Hook Height:	Max. 2150mm, Min. 470mm
Boomlength:	Adjustable, Up To 48 Inches	Lifting Range:	800-1500mm
Certification Mark:	CE Certified	Type:	Foldable Hydraulic Engine Hoist
Base Structure:	H-frame Base, With 2 Front Castors	Minimum Extension:	1020 Mm
Mounting Arms:	Fully Adjustable
Highlight:	1500LB Capacity Engine Stand , 60:1 Gear-Driven Rotation Engine Stand , Ergonomic Comfort Handle Rotating Mount

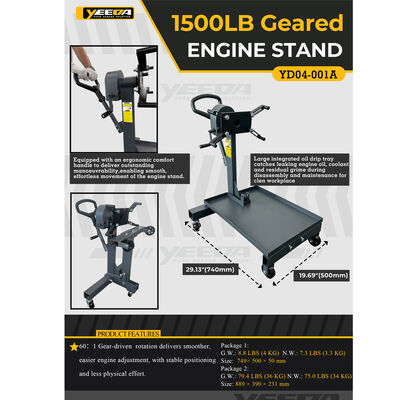

1500LB Geared Engine Stand Garage Rotating Mount

This geared 1500LB engine stand is made for garage and workshop engine repair, disassembly, and maintenance work. Model YD04-001A uses a 60:1 gear-driven rotation to help position the engine more smoothly with stable control and less physical effort. It is equipped with an ergonomic comfort handle to support smooth manoeuvrability, and a large integrated oil drip tray to catch leaking engine oil, coolant, and residual grime during service.

The stand includes a wheeled base for movement around the workshop. Base dimensions are 29.13 inches (740mm) by 19.69 inches (500mm). Package options are listed as Package 1: G.W. 8.8 LBS (4 KG), N.W. 7.3 LBS (3.3 KG), Size 749 x 500 x 50 mm; Package 2: G.W. 79.4 LBS (36 KG), N.W. 75.0 LBS (34 KG), Size 889 x 390 x 231 mm.

Product Parameters

Item	Specification
Model	YD04-001A
Capacity	1500LB
Rotation	60:1 Gear-Driven
Handle	Ergonomic Comfort Handle
Drip Tray	Large Integrated Oil Drip Tray
Base Dimension	740mm x 500mm / 29.13" x 19.69"
Package 1	G.W. 8.8 LBS (4 KG), N.W. 7.3 LBS (3.3 KG), Size 749 x 500 x 50 mm
Package 2	G.W. 79.4 LBS (36 KG), N.W. 75.0 LBS (34 KG), Size 889 x 390 x 231 mm
Application	Garage Engine Repair, Disassembly, Maintenance

Key Features

1500LB capacity for garage engine work
60:1 gear-driven rotation for smoother engine adjustment
Ergonomic comfort handle for easier movement and control
Large integrated oil drip tray to catch oil, coolant, and grime
Wheeled base for workshop manoeuvrability
Stable positioning during engine maintenance tasks

Application

This geared engine stand is suitable for garage and workshop use in engine repair, disassembly, and maintenance. The drip tray and rotating design support cleaner, more controlled service work.

Product Questions and Answers

What is the capacity of YD04-001A?

It is a 1500LB engine stand.

How does the rotation work?

It uses 60:1 gear-driven rotation for smoother adjustment and stable positioning.

Does it have an oil drip tray?

Yes, it has a large integrated oil drip tray to catch leaking engine oil, coolant, and residual grime.

What handle is used?

It is equipped with an ergonomic comfort handle.

What are the base dimensions?

Base size is 29.13 inches (740mm) by 19.69 inches (500mm).

Where is this engine stand used?

It is used in garages and workshops for engine repair, disassembly, and maintenance.
