500KG Capacity Hydraulic Transmission Jack with Multi-Position Adjustable Head and Full Adjustable Saddle

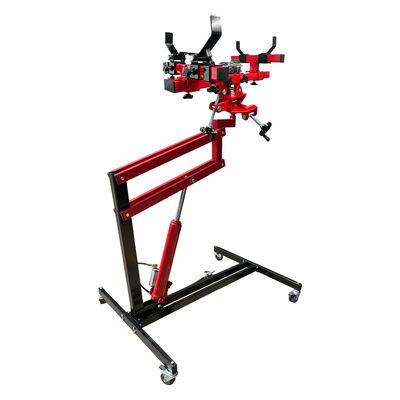

Large Image : 500KG Capacity Hydraulic Transmission Jack with Multi-Position Adjustable Head and Full Adjustable Saddle

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD05-001C

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model No:	YD05-01C	Base Dimensions:	690 Mm × 780 Mm, Wide-base Design
Test Video:	Available	Wheels:	4 Swivel Casters With Brakes
Lifting Platform:	Size: 340 Mm × 240 Mm	Base Dimension:	31" × 31" (787 Mm × 787 Mm)
Material:	Heavy-duty Steel	Stroke:	815mm
Context Of Use:	Workshop, Garage Shop	Assemblyrequired:	Yes, Partial Assembly Needed
Lifting Height:	Min: 8.67" (22 Cm) Max: 32.28" (82 Cm)	Height Range:	820mm (min) To 1768mm (max)
Main Material:	Heavy Duty Solid Alloy Steel	Delivery Date:	30-40days
Package:	11322280mm
Highlight:	500KG Capacity Hydraulic Transmission Jack , Multi-Position Adjustable Head Transmission Jack , Full Adjustable Saddle Hydraulic Jack

500KG Multi-Position Transmission Jack YD05-001C Adjustable Saddle Hydraulic

This 500KG multi-position transmission jack is built for garage and workshop transmission service, providing controlled lifting and positioning during repair, removal, or installation tasks. Model YD05-001C features smooth hydraulic operation and a heavy-duty 500KG capacity. The head is multi-position adjustable, and the unit includes a full adjustable saddle with chains for secure load support.

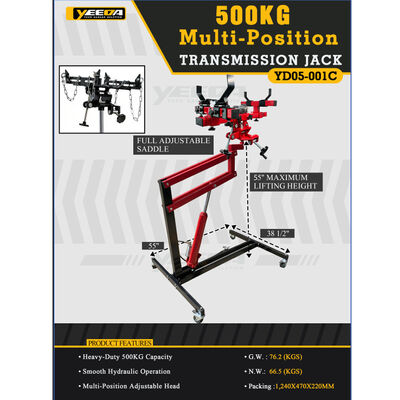

The frame has a wheeled base for movement around the service area. Dimensional references shown are 55 inches maximum lifting height, 55 inches base length, and 38 1/2 inches base width. Product weight and packing details are G.W. 76.2KGS, N.W. 66.5KGS, packing size 1240 x 470 x 220mm.

Product Parameters

Item	Specification
Model	YD05-001C
Capacity	500KG
Operation	Smooth Hydraulic Operation
Saddle	Full Adjustable Saddle
Head	Multi-Position Adjustable Head
Max Lifting Height	55"
Base Length	55"
Base Width	38 1/2"
G.W.	76.2KGS
N.W.	66.5KGS
Packing Size	1240 x 470 x 220mm
Application	Garage Transmission Lifting and Service

Key Features

500KG heavy-duty capacity
Multi-position adjustable head
Full adjustable saddle with chains
Smooth hydraulic operation
Wheeled base for workshop manoeuvrability
55" maximum lifting height

Application

This multi-position transmission jack is suitable for garage and workshop use where transmissions need to be lifted, held, aligned, or lowered during service. The adjustable saddle and head support varied positioning needs.

Product Questions and Answers

What is the capacity of YD05-001C?

It has a heavy-duty 500KG capacity.

Does it have an adjustable saddle?

Yes, it has a full adjustable saddle.

What is the head design?

It has a multi-position adjustable head.

What is the maximum lifting height?

Maximum lifting height is 55 inches.

What are the base dimensions?

Base length is 55 inches, width is 38 1/2 inches.

What are the weight and packing details?

G.W. 76.2KGS, N.W. 66.5KGS, packing size 1240 x 470 x 220mm.

Where is this transmission jack used?

It is used in garages and workshops for transmission lifting, positioning, and service work.
