50 Ton Pneumatic Hydraulic Shop Press with Adjustable Working Bed Height for Garage Floor Press

Large Image : 50 Ton Pneumatic Hydraulic Shop Press with Adjustable Working Bed Height for Garage Floor Press

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD06-017

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	50 Ton Pneumatic Hydraulic Shop Press Garage Floor Press	Model:	YD06-017
Capacity:	50 Ton	Operation:	Pneumatic Hydraulic
Ram Stroke:	9" / 228mm	Overall Height:	63.4" / 1,610mm
Working Bed Max Height:	45.7" / 1,160mm	G.W. / N.W.:	560LB (255KG) / 495LB (225KG)
Highlight:	50 Ton Capacity Hydraulic Shop Press , Pneumatic Hydraulic Operation Garage Floor Press , Adjustable Working Bed Height Pneumatic Hydraulic Press

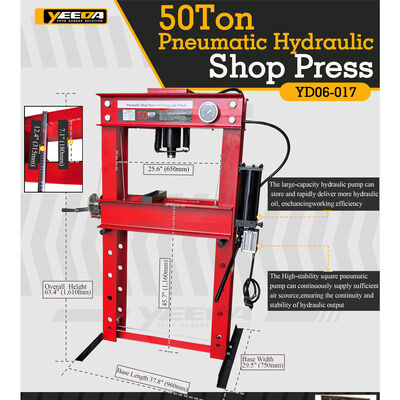

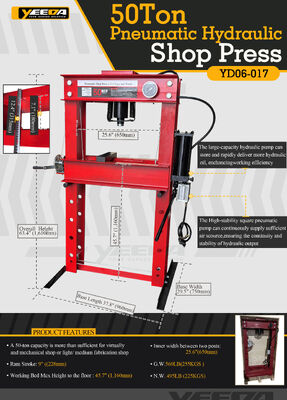

50 Ton Pneumatic Hydraulic Shop Press YD06-017 Garage Floor Press

This 50 ton pneumatic hydraulic shop press is built for garage, mechanical shop, and light/medium fabrication shop use. Model YD06-017 delivers pressing force for workshop tasks with a large-capacity hydraulic pump that can store and rapidly deliver more hydraulic oil, enhancing working efficiency. It also uses a high-stability square pneumatic pump that can continuously supply sufficient air source, ensuring continuity and stability of hydraulic output.

The frame includes adjustable working bed height, a ram stroke of 9 inches (228mm), and measured dimensions of overall height 63.4 inches (1,610mm), width between two posts 25.6 inches (650mm), inner width between two posts 25.6 inches (639mm), working bed maximum height to floor 45.7 inches (1,160mm), base length 37.8 inches (960mm), and base width 29.5 inches (750mm). Shipping weight is G.W. 560LB (255KGS), N.W. 495LB (225KGS).

Product Parameters

Item	Specification
Model	YD06-017
Capacity	50 Ton
Operation	Pneumatic Hydraulic
Ram Stroke	9" / 228mm
Overall Height	63.4" / 1,610mm
Width Between Two Posts	25.6" / 650mm
Inner Width Between Two Posts	25.6" / 639mm
Working Bed Max Height to Floor	45.7" / 1,160mm
Base Length	37.8" / 960mm
Base Width	29.5" / 750mm
G.W.	560LB / 255KGS
N.W.	495LB / 225KGS
Application	Garage, Mechanical Shop, Light/Medium Fabrication

Key Features

50-ton capacity for shop and fabrication use
Pneumatic hydraulic operation
Large-capacity hydraulic pump for efficient oil delivery
High-stability square pneumatic pump for continuous air supply
Ram stroke 9 inches / 228mm
Adjustable working bed height up to 45.7 inches / 1,160mm
Heavy-duty frame for garage and workshop pressing tasks

Application

This pneumatic hydraulic shop press is suitable for garage, mechanical shop, or light/medium fabrication shop work where controlled pressing force is needed. The pneumatic pump and hydraulic system support consistent output during operation.

Product Questions and Answers

What is the capacity of YD06-017?

It is a 50 ton shop press.

How is it operated?

It uses pneumatic hydraulic operation with a large-capacity hydraulic pump and a high-stability square pneumatic pump.

What is the ram stroke?

Ram stroke is 9 inches / 228mm.

What is the working bed maximum height?

Working bed maximum height to the floor is 45.7 inches / 1,160mm.

What are the overall dimensions?

Overall height 63.4 inches / 1,610mm, width between posts 25.6 inches / 650mm, inner width between posts 25.6 inches / 639mm, base length 37.8 inches / 960mm, base width 29.5 inches / 750mm.

What are the weight details?

G.W. 560LB / 255KGS, N.W. 495LB / 225KGS.

Where is this press used?

It is used in garages, mechanical shops, and light/medium fabrication shops.
