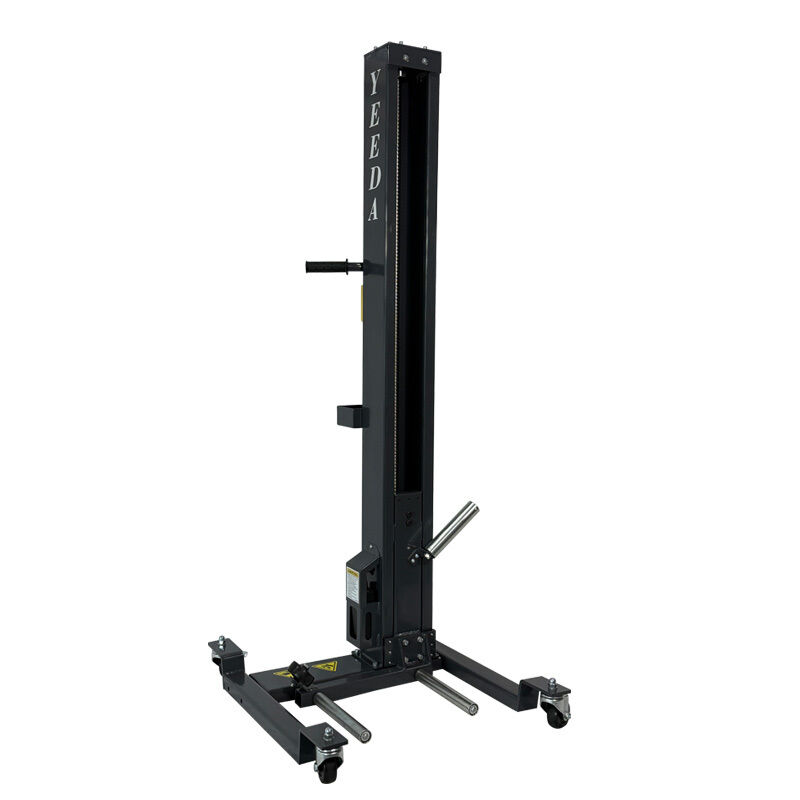

Lithium Battery Wheel Lift YD10-016B Ball Screw Lift with Tool Tray
This lithium battery wheel lift is built for garage and workshop tire, wheel, and hub handling. Model YD10-016B features lift controls and a tool tray on the unit, with a ball screw lift mechanism. The image notes 15 seconds travel time for full stroke up or down. It is designed to raise and position wheels with a max lift capacity of 200LB / 90.7KG. The minimum lowered height at the wheel roller is 2.5" / 65mm, and the roller distance center to center is 12.5" / 318.75mm.

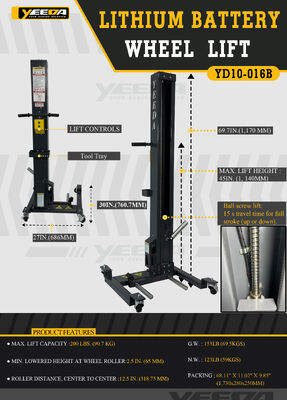

Dimensions from the image: overall height reference 69.71" / 1170mm, max lift height 45" / 1140mm, base width 30" / 760.7mm, length 27" / 686mm. The base is fitted with casters for mobility. Weight and packing: G.W. 153LB / 69.5KGS, N.W. 123LB / 59KGS, packing size 68.11" x 11.02" x 9.85" / 1730 x 280 x 250mm.
Product Specifications
| Item |
Specification |
| Model |
YD10-016B |
| Product Type |
Lithium Battery Wheel Lift |
| Power Source |
Lithium Battery |
| Max Lift Capacity |
200LB / 90.7KG |
| Max Lift Height |
45" / 1140mm |
| Min. Lowered Height at Wheel Roller |
2.5" / 65mm |
| Roller Distance, Center to Center |
12.5" / 318.75mm |
| Overall Height Reference |
69.71" / 1170mm |
| Base Width |
30" / 760.7mm |
| Length |
27" / 686mm |
| Lift Mechanism |
Ball Screw Lift |
| Travel Time |
15s for full stroke up or down |
| Features |
Lift Controls, Tool Tray, Casters |
| G.W. |
153LB / 69.5KGS |
| N.W. |
123LB / 59KGS |
| Packing Size |
68.11 x 11.02 x 9.85" / 1730 x 280 x 250mm |
| Application |
Garage Wheel/Tire Handling |
Key Features
- Lithium battery powered wheel lift
- Max lift capacity 200LB / 90.7KG
- Ball screw lift with 15s travel time for full stroke up or down
- Lift controls and tool tray
- Max lift height 45" / 1140mm
- Min. lowered height at wheel roller 2.5" / 65mm
- Roller distance center to center 12.5" / 318.75mm
- Mobile base with casters
- Suitable for garage wheel and tire handling
Application
This lithium battery wheel lift is suitable for garage and workshop use when lifting, positioning, moving, or servicing wheels and tires. The battery operation, ball screw lift, lift controls, tool tray, rollers, and caster base help with controlled wheel handling.
Product Questions and Answers
What is the model and power source?
Model YD10-016B, lithium battery powered.
What is the max lift capacity?
Max lift capacity is 200LB / 90.7KG.
What lift mechanism does it use?
Ball screw lift, with 15 seconds travel time for full stroke up or down.
What is the max lift height?
Max lift height is 45" / 1140mm.
What is the minimum lowered height at the wheel roller?
2.5" / 65mm.
What is the roller distance?
Roller distance center to center is 12.5" / 318.75mm.
What are the main dimensions?
Overall height reference 69.71" / 1170mm, base width 30" / 760.7mm, length 27" / 686mm.
Does it have a tool tray?
Yes, it has a tool tray and lift controls.
What are the weight and packing details?
G.W. 153LB / 69.5KGS, N.W. 123LB / 59KGS. Packing size 68.11 x 11.02 x 9.85" / 1730 x 280 x 250mm.
Where is this lift used?
Used in garages and workshops for wheel and tire handling.
