10T Capacity Long Chassis Service Jack with 61" Chassis and 5" Reinforced Steel Wheels

Large Image : 10T Capacity Long Chassis Service Jack with 61" Chassis and 5" Reinforced Steel Wheels

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD20-005

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	10T Long Chassis Service Jack YD20-005	Model:	YD20-005
Type:	Long Chassis Service / Floor Jack	Capacity:	10T
Handle Length:	48.43" / 1230mm	Chassis Length:	61" / 1550mm
Wheels:	5" Reinforced Steel Wheels	Min/Max Height:	6.3" / 160mm – 22.64" / 575mm
Highlight:	10T Capacity Hydraulic Floor Jack , 61" Long Chassis Service Jack , 5" Reinforced Steel Wheels Long Chassis Jack

10T Long Chassis Service Jack YD20-005 Heavy Duty Hydraulic Floor Jack

This 10T long chassis service jack is designed for heavy-duty lifting applications. Model YD20-005 features a 61" / 1550mm long chassis design that can access very low, hard-to-reach areas, and 5" reinforced steel wheels for maximum durability. The 48.43" / 1230mm long handle enables easy lifting of 10-Ton heavy loads.

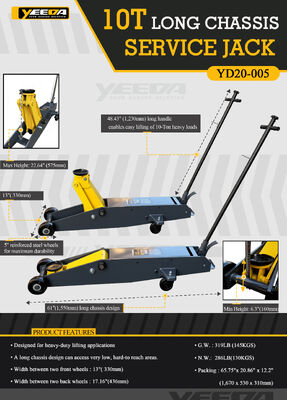

Height range shown: min height 6.3" / 160mm, max height 22.64" / 575mm. Wheel widths: front wheel width 13" / 330mm, back wheel width 17.16" / 436mm. Weight and packing: G.W. 319LB / 145KGS, N.W. 286LB / 130KGS, packing size 65.75 x 20.86 x 12.2" / 1670 x 530 x 310mm.

Product Parameters

Item	Specification
Model	YD20-005
Product Name	10T Long Chassis Service Jack
Type	Long Chassis Service Jack / Floor Jack
Capacity	10T
Application	Heavy-Duty Lifting
Handle Length	48.43" / 1230mm
Chassis Length	61" / 1550mm
Min Height	6.3" / 160mm
Max Height	22.64" / 575mm
Wheels	5" Reinforced Steel Wheels
Front Wheel Width	13" / 330mm
Back Wheel Width	17.16" / 436mm
G.W.	319LB / 145KGS
N.W.	286LB / 130KGS
Packing Size	65.75 x 20.86 x 12.2" / 1670 x 530 x 310mm

Key Features

10T long chassis service jack for heavy-duty lifting
61" / 1550mm long chassis to access low, hard-to-reach areas
5" reinforced steel wheels for maximum durability
48.43" / 1230mm long handle for easier lifting of 10-Ton loads
Min height 6.3" / 160mm, max height 22.64" / 575mm
Front wheel width 13" / 330mm, back wheel width 17.16" / 436mm
G.W. 319LB / 145KGS, N.W. 286LB / 130KGS

Application

This 10T long chassis service jack is suitable for garages and workshops where heavy-duty vehicle lifting is needed. The long chassis, reinforced wheels, and long handle help with stable positioning and lifting in low-clearance or heavy-load service situations.

Product Questions and Answers

What is the model and capacity?

Model YD20-005, 10T capacity.

What is it designed for?

Heavy-duty lifting applications.

What are the key dimensions?

Chassis length 61" / 1550mm, handle length 48.43" / 1230mm, min height 6.3" / 160mm, max height 22.64" / 575mm.

What wheels does it have?

5" reinforced steel wheels for maximum durability.

What are the wheel widths?

Width between two front wheels: 13" / 330mm. Width between two back wheels: 17.16" / 436mm.

What are the weight and packing details?

G.W. 319LB / 145KGS, N.W. 286LB / 130KGS. Packing size 65.75 x 20.86 x 12.2" / 1670 x 530 x 310mm.

Where is it used?

Garages and workshops for heavy-duty vehicle service and lifting.
