• Multi Functional Mobile Waste Oil Drainer
Multi Functional Mobile Waste Oil Drainer

Multi Functional Mobile Waste Oil Drainer

Product Details:

Place of Origin: Zhejiang , China
Brand Name: YEEDA
Model Number: YD44-015

Payment & Shipping Terms:

Minimum Order Quantity: 30 PCS
Packaging Details: Carton Box
Delivery Time: 45 Days
Payment Terms: T/T
Supply Ability: 500 PCS/MONTH
Get Best Price Contact Now

Detail Information

Model No.: YD44-015 Name: Portable Multi-Functional Oil Drainer
Material: Steel Funnel Size: 53 X 35.5 X 15.5cm
Color: Red,Black, Customized Color Acceptable Max.Height: 166cm
Min. Height: 120cm 1-Package Size: 79 X 45.5 X 53cm
2-Package Size: 47.5 X 38.5 X 58.5cm 1-G.W./N.W.: 25/23kgs
2-G.W./N.W.: 11/8kgs Payment: T/T
High Light:

15.5cm Mobile Waste Oil Drainer


Multi Functional Mobile Waste Oil Drainer


65L Waste Engine Oil Drainer

Product Description

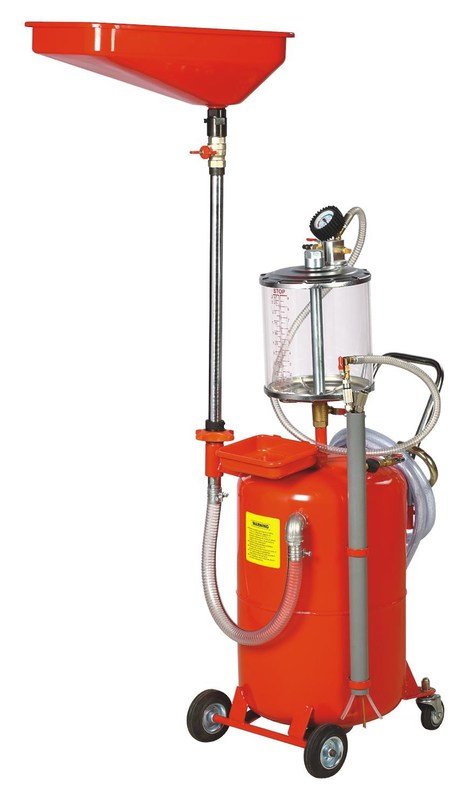

Portable Multi-Functional Oil Drainer With Adjustable Funnel Height,Red


Portable Multi-Functional Oil Drainer Air Evacation Oil Drains employ the benefits of the drain and ecacuate system without an evacuation pump. The fluid drain is air pressured to evacuate the used oil.


  • Sucking speed: 0.6-1.6L/min
  • Collecting height: 1.85m
  • Work pressure: 7-8ba
  • Tank volume: 65L
  • Volume of measuring cup: 9L
  • Draining pressure: 0.5bar
  • Length of suction pipe: 1.4m
  • Length of drainpipe: 1.9m
  • Total sucking capacity: 40-50L
  • Total weight: 32kgs
  • Exterior dimension: 480x500x1850mm
  • The multi-functional oil drainer has three functions: sucking, collecting and filling oil.


  • It is easy used to drain oil in low pressure.
  • The oil drainer makes use of compressed air as power to produce vacuum in order to achieve its sucking function.
  • It is a safe, convenient and quick machine. It never bring spark to you.
  • This machine is mainly used in garage, cars beautification, and cars producing etc.
  • It can collect and fill oil for cars or other machines to achieve its fixed or movable working functions.
  • The movable body could meet your needs of using it in different places at any time.
  • The outside-layed cursor shows you the height of oil clearly.
  • The adjustable oil tray adapts to any types of cars.
  • Trashy oil can be sucked by minus pressure that is produced by air, and also can be collected by gravity.
  • Each machine is equipped with different specifications of nozzles.
  • The transparent visual measuring cup is convenent to observe oil.
  • The tool tray can be disassembled.


  • The temperature must be below 70-80 when draining oil.
  • The highest pressure is 0.5bar when draining oil.
  • Never use it for corrosive products.
Modle No. Pcs/ctn G.W./N.W. Dimension Qty/20'FT Remarks
YD44-015 1/2 25/23 kgs 79 x 45.5 x 53 cm 99pcs
1/2 11/8 kgs 47.5 x 38.5 x 58.5 cm
