Home ProductsHydraulic Transmission Jack

0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack

China Jiaxing Yeeda International Co.,Ltd certification
China Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack

0.5T One Stage Hydraulic Transmission Jack Gearbox Support  Jack
0.5T One Stage Hydraulic Transmission Jack Gearbox Support  Jack 0.5T One Stage Hydraulic Transmission Jack Gearbox Support  Jack 0.5T One Stage Hydraulic Transmission Jack Gearbox Support  Jack 0.5T One Stage Hydraulic Transmission Jack Gearbox Support  Jack 0.5T One Stage Hydraulic Transmission Jack Gearbox Support  Jack

Large Image :  0.5T One Stage Hydraulic Transmission Jack Gearbox Support Jack

Product Details:
Place of Origin: Zhejiang , China
Brand Name: YEEDA
Certification: CE
Model Number: YD05-001
Payment & Shipping Terms:
Minimum Order Quantity: 20 PCS
Price: USD90.95/PCS
Packaging Details: Wood Box
Delivery Time: 15DAYS
Payment Terms: T/T
Supply Ability: 1000PCS/MONTH
Detailed Product Description
Payment Term: T/T 30% Deposit, 70% Before Shipment Applicable Industries: Machinery Repair Shops, Vehicle Repair
Test Video: Provided Model No.: YD05-001
Certification: CE Warranty Of Core Components: 1 Year
After Warranty Service: Video Technical Support, Online Support, Spare Parts Name: 0.5T One Stage Hydraulic Transmission Jack
Capacity: 500KGS Color: Red,blue, Customized Color Acceptable
Surface Treatment: Powder Coating MOQ: 20 PCS
Delivery Time: 15 Days After Received Deposit Packaging: Crate
Highlight:

Gearbox Support Hydraulic Transmission Jack

,

Foot Pedal Hydraulic Transmission Jack

,

0.5T One Stage Hydraulic Transmission Jack

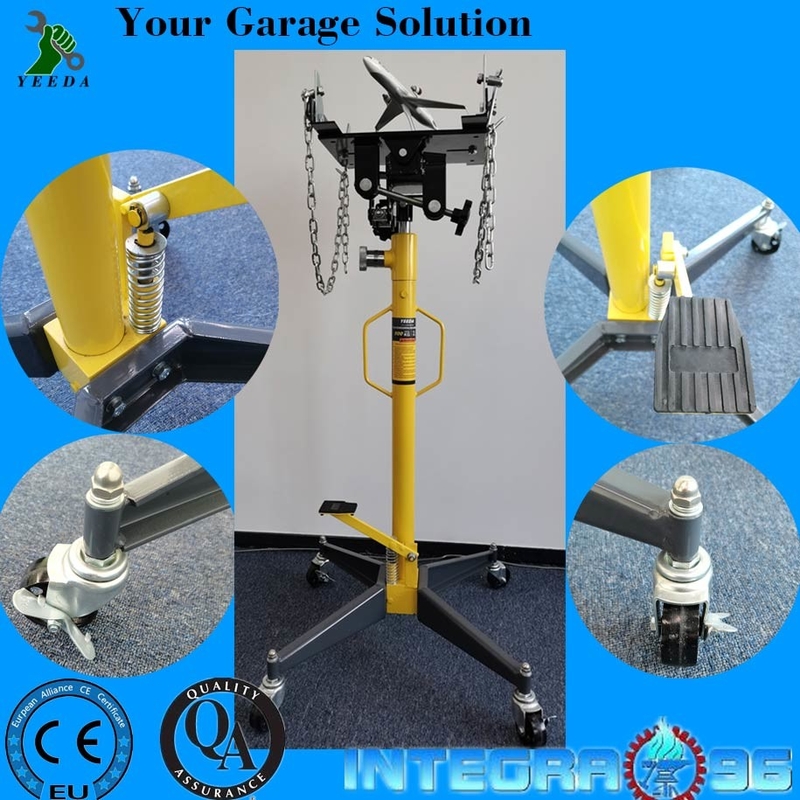

One Stage 0.5 Ton (500kg) Hydraulic Transmission Jack Vertical

Model No.: YD05-001 ,0.5 Ton One Stage Hydraulic Transmission Jack With Adaptor



Manufactured to exacting standards and suitable for general workshop applications. Model features dead man's handle for added safety and strong construction for durability. This economy hydraulic unit is slightly smaller than other models in the range. Can be fitted with Adjustable Gearbox Support - check specification in table.

Features

  • High speed lift to gearbox - just lift piston

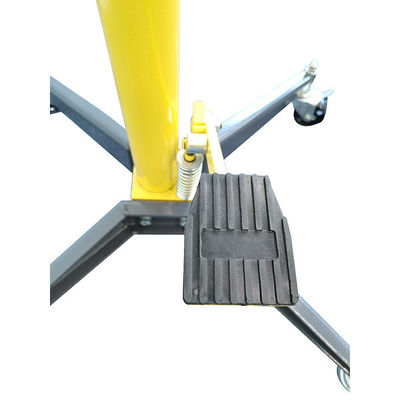

  • Foot pedal operation keeps hands-free

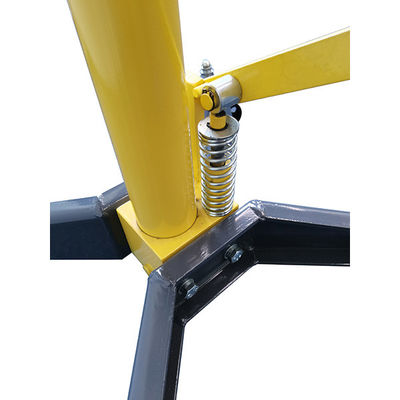

  • Spring loaded dead man's safety release control reduces the risk of inadvertent lowering

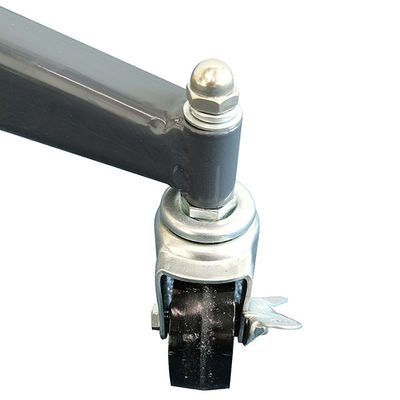

  • Highly manoeuvrable on castors
  • two wheels with brake function
  • Colour: Yellow+Gray+Black

Technical details

  • total dimensions (LxW): 70 x 65 x 127 cm
  • drive: hydraulic
  • working height min. and max.: 127 cm - 195 cm
  • stroke: 68 cm
  • gearbox mount platform (LxW): 36 x 27 cm
  • cross base (LxW): 70 x 65 cm
  • wheels diameter: 8 cm
  • backup chain (L): 80 cm
  • bearing capacity (max.): 500 kg
  • material: steel
  • Net weight: 37 kg
  • G.W.: 39 kg
  • Package Size: 1270 x 25 x 27mm

0.5T One Stage Hydraulic Transmission Jack Gearbox Support  Jack 0
