0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack

China Jiaxing Yeeda International Co.,Ltd certification
China Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack

0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack
0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack

Large Image :  0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack

Product Details:
Place of Origin: Zhejiang , China
Brand Name: YEEDA
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 20 PCS
Price: USD90.95/PCS
Packaging Details: Wood Box
Delivery Time: 15DAYS
Payment Terms: T/T
Supply Ability: 1000PCS/MONTH
Detailed Product Description
Name: 500KGS Hydraulic Transmission Jack Applicable Industries: Machinery Repair Shops, Vehicle Repair
Capacity: 500KGS Color: Red,blue, Customized Color Acceptable
Surface Treatment: Powder Coating Delivery Time: 15 Days After Received Deposit
Packaging: Crate Test Video: Provided
Certification: CE After Warranty Service: Video Technical Support, Online Support, Spare Parts

0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack

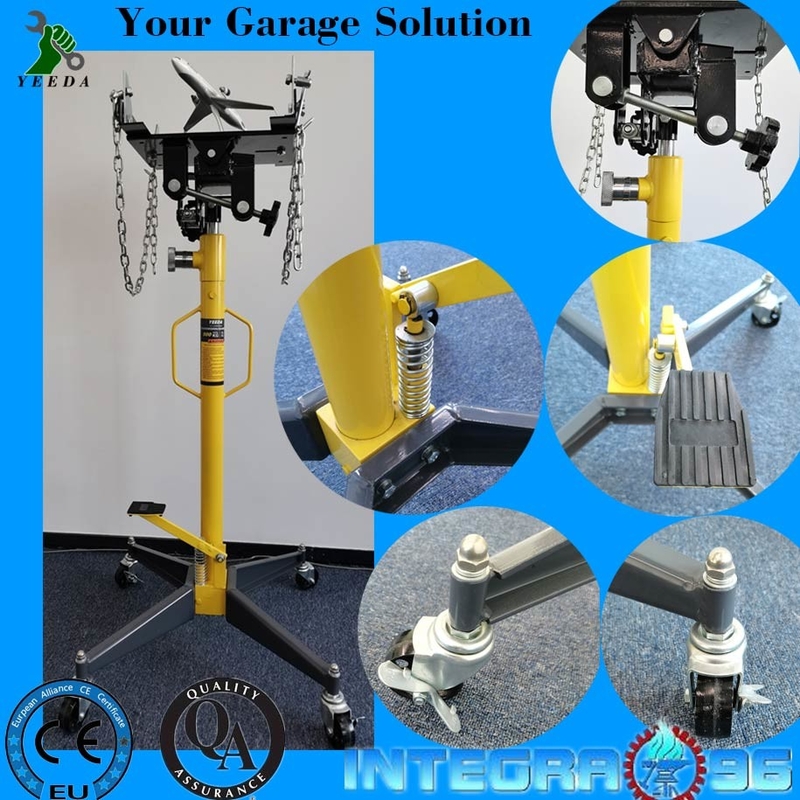

Compact, upright transmission jack with a maximum lift capacity of 500KGS .Built with the same heavy-duty materials as the larger models, the Hydraulic Transmission Jack allows you to safely and easily remove, transfer and install transmissions, transaxles and other drive-train components weighing up to half a ton. The unit features a built-in safety overload valve for your protection and a foot operated pump for hands free operation. Small storage area? No problem! The cross base (LxW): 70 x 65 cm makes this one of Ranger's most space efficient designs.



Highlights

  • lifting capacity of 0.5 tonnes
  • adjustable height
  • hydraulic lift by means of a foot pedal
  • lowering by means of a handwheel
  • the lowering speed is especially closely adjustable
  • backup chain for more safety and stability
  • retaining plate individually adjustable to the shape of the gear or transmission
  • stable, steerable wheels
  • two wheels with brake function
  • Colour: Yellow+Gray+Black

Technical details

  • total dimensions (LxW): 70 x 65 x 127 cm
  • drive: hydraulic
  • working height min. and max.: 127 cm - 195 cm
  • stroke: 68 cm
  • gearbox mount platform (LxW): 36 x 27 cm
  • cross base (LxW): 70 x 65 cm
  • wheels diameter: 8 cm
  • backup chain (L): 80 cm
  • bearing capacity (max.): 500 kg
  • material: steel
  • Net weight: 37 kg
  • G.W.: 39 kg
  • Package Size: 1270 x 25 x 27mm

0.5t Air Over Hydraulic Transmission Jack 500KGS Hydraulic Transmission Jack 0
