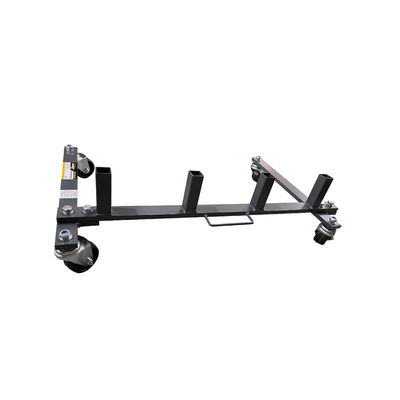

Storage Rack: 200LB Load, Holds 4 Dollies, Flat-Free Casters for Shop/4S/Logistics

Large Image : Storage Rack: 200LB Load, Holds 4 Dollies, Flat-Free Casters for Shop/4S/Logistics

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD10-011

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD10-011 200LB Go Jack Storage Rack	Load Rating:	200LB (approx. 91 Kg, Load Rating: 200Ib(91kg))
Compatible Dolly Tire Diameter:	15"-28" (approx. 38-71 Cm, Tire Diameter Capacity: 15"-28"(38cm-71cm))	Caster Specification (Casters Diameter):	4" In Diameter (approx. 10.2 Cm, Casters Diameter: 4”(10.2cm)), Made Of Flat-free Polymer Material
Dimension Parameters:	Stowed Dimensions: 21"×24" (approx. 53×61 Cm) Assembled Dimensions: 19"×31"×9" (approx. 48×78×23 Cm)	Main Material:	Heavy-duty Steel (3.5mm Thick, Surface Electrostatic Spray Anti-rust Treatment, No Rust In 130-hour Salt Spray Test)
Highlight:	heavy-duty storage rack for dollies , shop storage rack with flat-free casters , logistics rack with 200lb load capacity

YD10-011 200LB Go Jack Storage Rack

Specialized storage solution for 4 GoCart car dollies with organized storage and convenient transportation functions. Features 200LB load capacity, flat-free polymer casters, and heavy-duty steel construction.

Product Specifications

Parameter Category	Specific Value
Product Name	YD10-011 200LB Go Jack Storage Rack
Model No.	YD10-011
Load Rating	200LB (approx. 91 kg)
Compatible Dolly Tire Diameter	15"-28" (approx. 38-71 cm)
Caster Specification	4" diameter flat-free polymer casters with brake function
Dimensions	Stowed: 21"×24" (53×61 cm) Assembled: 19"×31"×9" (48×78×23 cm)
Main Material	3.5mm thick heavy-duty steel with electrostatic spray anti-rust treatment
Assembly Requirement	No tools needed; assembly time ≤10 minutes

Key Features

200LB Heavy-Load Support: Safely stores 4 standard GoCart dollies with 3.5mm thick steel frame and 8cm-high limit baffles.
Flat-Free Polymer Casters: 4" diameter casters with anti-slip texture (friction coefficient ≥1.3) and brake function for easy transportation.
Quick Assembly: Buckle-type design allows tool-free assembly in ≤10 minutes with included graphic manual.
Durable Construction: Heavy-duty steel with anti-rust coating passes 130-hour salt spray test for 7-9 year service life.

Application Scenarios

Auto Repair Shops

Centralizes storage of 4 dollies, increases workshop space utilization by 60%, and enables batch transportation to workstations.

4S Store Tool Rooms

Organizes multiple sets of dollies in compact 19"×31"×9" footprint with rust-proof protection for long-term storage.

Logistics Parks

Enables single-person transportation of 4 dollies (290LB total) with ≤40N rolling resistance, reducing transport time from 20 to 5 minutes.

Home Garages

Organizes 2-4 dollies in compact space with caster brakes to prevent displacement during vehicle entry/exit.

Frequently Asked Questions

Q: Can it store dollies with 29" tires?

A: Not recommended. For 29" tires, use YD10-012 model. Temporary solution requires additional rubber baffles for short-term storage only.

Q: Is multiple people needed for assembly?

A: No. Designed for one-person assembly (8-12 minutes) with lightweight components and intuitive buckle system.

Q: How to fix brake function if it fails?

A: Replace worn brake pads (≥3mm wear) or adjust spring tension. Contact manufacturer for caster replacement if needed.

Q: Will it fit in a car trunk?

A: Fits most trunks when stowed (21"×24"). For small trunks, fold rear seats or remove casters to reduce volume.
