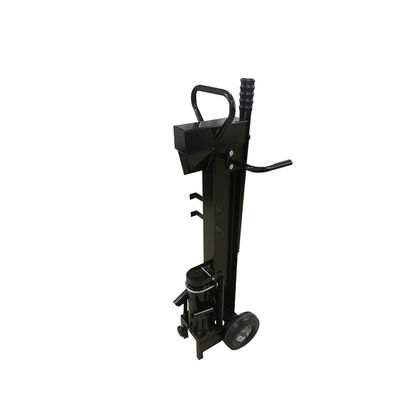

YD22-001A 12Ton Hydraulic Log Splitter 3pcs/min for Forest/Farm Wood Processing
Product Details
| Model: | YD22-001A | Product Type: | 12Ton Hydraulic Log Splitter, Specially Designed For Wood Splitting Scenarios. It Mainly Serves Forest Farms, Wood Processing Plants, Biomass Energy Enterprises, Family Farms, And Outdoor Campsites. |
|---|---|---|---|
| Core Performance Parameters: | Capacity: 12Ton, Can Easily Split Logs With Diameter ≤30cm And Length ≤60cm Splitting Efficiency Of Hardwood Is ≥3 Pieces Per Minute Adaptable Wood Specification: Compatible With Logs Within A "20-inch Cabinet" (approximately 50.8cm) Power Type: Hydraulic | Weight & Packaging: | Gross Weight: 52kg Net Weight: 48kg Package Size: 133×45×31cm |
| Safety & Durability Configuration: | Hydraulic Overload Protection Anti-Slip Workbench With Diamond-shaped Patterns Rust-Resistant Fuselage With IP54 Rating | ||
| Highlight |
12Ton hydraulic log splitter,forest wood processing log splitter,farm log splitter |
||
Product Description
| Parameter Category | Specific Description |
|---|---|
| Model | YD22-001A |
| Product Type | 12Ton Hydraulic Log Splitter, specially designed for wood splitting scenarios. It mainly serves forest farms, wood processing plants, biomass energy enterprises, family farms, and outdoor campsites. |
| Core Performance Parameters |
|
| Weight & Packaging |
|
| Safety & Durability Configuration |
|
Strong Splitting Force: The 12Ton hydraulic driving force can directly penetrate hardwood like oak with a diameter of 25cm, splitting it into 2-3 pieces in 3 seconds. The success rate of hardwood splitting is 98%.
Adaptable to Wood in 20-Inch Cabinets: The equipment is accurately compatible with log sizes within a "20-inch cabinet" (approximately 50.8cm), reducing log pretreatment time.
Hydraulic Automatic Splitting: No manual force required. Splitting can be completed in 3 simple steps, reducing labor intensity by 100%.
48kg Net Weight: The lightweight design allows for flexible movement in multiple scenarios, making it 20% lighter than traditional log splitters of the same tonnage.
Dual Safety Design: Features overload protection and anti-slip workbench, increasing safety factor by 60%.
Rust-Resistant and Durable: Electrostatic spraying coating is 80μm thick, with no paint peeling or rust after outdoor exposure. Hydraulic system maintains excellent performance after 1000 fatigue tests.
Process oak with diameter of 25-30cm, requiring batch processing (≥500 pieces per day). The 12Ton power is suitable for batch processing of hardwood, shortening the processing cycle by 70% and reducing labor costs by 80%.
Split pine with diameter of 15-20cm for winter fireplace heating. The lightweight and easy-to-operate design saves 67% of time compared with manual axes.
Split fir with diameter of 10-15cm in campsite for campfire heating. The portable design increases efficiency by 3 times compared with manual axes.
Pretreat birch with diameter of 20-25cm for biomass pellet processing. The batch processing efficiency increases production capacity by 2.6 times compared with traditional small log splitters.
A1: Splitting is not recommended, and overload protection will be triggered. The equipment is rated to adapt to logs with diameter ≤30cm. A log splitter with a tonnage of 15Ton or above is required for splitting 35cm hardwood.
A2: It is mostly caused by insufficient hydraulic oil, oil circuit blockage, or push rod jamming. Troubleshoot by checking the hydraulic oil level, cleaning the oil circuit blockage, or fixing push rod jamming.
A3: Two people can carry it easily through correct posture and auxiliary tools like ramp boards or crowbars, reducing physical consumption by 30-60%.
A4: Slight rust can be polished and repainted. For severe rust causing structural weakness, contact the manufacturer for part replacement. Preventive measures include regular maintenance and using waterproof covers.
