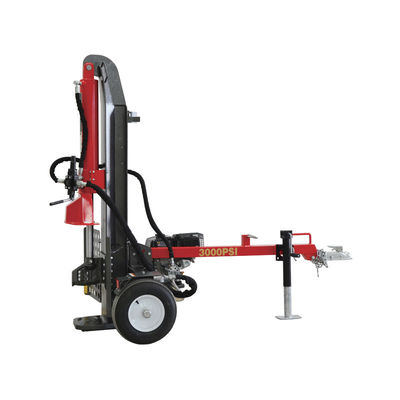

30Ton Horizontal/Vertical Log Splitter: 6.5HP, 15s Cycle for Large Forest/Facility Wood Work
Product Specifications
| Parameter Category |
Specific Description |
| Product Type |
30Ton Hydraulic Log Splitter with quick switch between horizontal and vertical modes. Designed for large-scale batch wood splitting in forest farms, wood processing plants, biomass energy enterprises, and municipal greening. |
| Core Performance Parameters |
- Rated Capacity: 30Ton, can split logs ≤50cm diameter and ≤62.2cm length
- Power Configuration: 6.5HP engine with two-stage 11 GPM hydraulic pump
- Cycle Efficiency: 15-second single cycle time, 200+ cycles/hour
- Wood Adaptation: Built-in log cradle holds logs ≤62.2cm, weight ≤80kg
|
| Dimensions & Weight |
- Net Weight: 272kg with 8mm thick high-strength steel construction
- Gross Weight: 320kg with packaging
- Packing Size: 1900×710×810mm
- Hydraulic System: 21-liter tank with 46# anti-wear hydraulic oil
|
| Safety & After-Sales |
- Automatic Reset Safety Valve: Protects hydraulic system from overpressure
- Expanded Operation Area: 30% larger platform for safer operation
- Warranty: 2-year limited warranty with lifetime technical support
|
Product Details
30Ton Strong Power + High Configuration
This heavy-duty log splitter delivers 30Ton splitting force with a Φ115mm oil cylinder and 600mm piston stroke, capable of penetrating high-density hardwood and wet wood with 40% higher efficiency than traditional models.
Second-Level Horizontal/Vertical Switching
Switch between modes in seconds to adapt to different log weights:
- Horizontal Mode: For logs ≤30kg, ideal for batch processing
- Vertical Mode: For logs 30-80kg, eliminates heavy lifting
High-Efficiency Cycling + Durable Design
- 15-second full cycle time with automatic reset
- 8mm thick cold-rolled steel construction with reinforcing ribs
- Chrome-plated piston rod (HRC50 hardness) and imported nitrile rubber seals
Application Scenarios
Batch Processing in Large Forest Farms
Process 35-50cm diameter hardwood (1200 pieces/day) with 140% higher efficiency than traditional models. Vertical mode handles 80kg logs with crane assistance.
Wet Wood Pretreatment for Biomass Energy
Process 25-40cm wet pine (2000 pieces/day) with 67% higher production capacity. Operates in temperatures as low as -10℃.
Municipal Greening Wood Treatment
Flexible horizontal/vertical switching adapts to multiple sites, processing 500 logs/day with 67% higher efficiency.
Wood Processing Plant Preprocessing
Split 20-35cm fir into standard sections (1800 pieces/day) with 80% higher efficiency than manual processing.
Frequently Asked Questions
Q1: Can this model split 55cm diameter hardwood?
A1: Not recommended. The 55cm hardwood exceeds the 30Ton rated capacity and may trigger overload protection. A 35Ton+ splitter is required.
Q2: What if the mode switch buckle gets stuck?
A2: Clean impurities, apply lithium-based grease, or check for buckle deformation. Severe cases may require replacement.
Q3: How to transport this 320kg equipment?
A3: Use forklift (≥500kg capacity) or crane with proper lifting equipment. Secure during transport to prevent damage.
Q4: How to handle high hydraulic oil temperature?
A4: Clean heat dissipation system, check oil level, and replace if oil is dark or used over 6 months.
