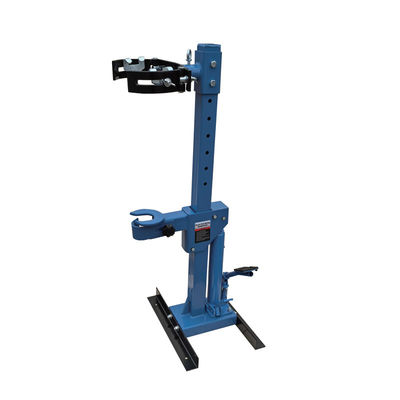

1Ton Hydraulic Spring Compressor: Foot-Operated, 102-160mm for Auto/Hardware Shops

Large Image : 1Ton Hydraulic Spring Compressor: Foot-Operated, 102-160mm for Auto/Hardware Shops

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD23-001

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Compressed Spring Diameter:	7.8" (20cm)	Compression Length:	Compression Length
Net Weight:	72.6LB (33kg)	Gross Weight:	77LB (35kg)
Package Size::	50.4"×11.8"×7.8" (128×30×20cm)
Highlight:	1Ton hydraulic spring compressor , foot-operated spring compressor , 102-160mm auto spring compressor

1Ton Hydraulic Spring Compressor: Foot-Operated, 102-160mm for Auto/Hardware Shops

Product Specifications

Common Parameters	Specific Description
Model No.	YD23-001
Product Type	1Ton Hydraulic Spring Compressor, specially designed for spring disassembly, assembly and compression operations. It mainly serves auto repair shops, car 4S stores, shock absorber repair workshops, and hardware accessory factories.

Core Common Configurations

1Ton Rated Load: Hydraulic drive outputs stable compression force for springs with diameter 102-160mm and length 210-570mm.
Foot-Operated Hydraulic Unit: Single-foot stepping operation with ≤30N force, 40% more labor-saving than ratchet type.
Plastic-Coated Yokes: Surface treatment increases friction coefficient to 0.8 and prevents spring surface damage.
Optional Air Pump: Doubles compression efficiency for high-frequency operations.

Dimensions & Weight

Compressed Spring Diameter: 7.8" (20cm)
Compression Length: 8.26"-22.45" (21-57cm)
Net Weight: 72.6LB (33kg)
Gross Weight: 77LB (35kg)
Package Size: 50.4"×11.8"×7.8" (128×30×20cm)

Product Advantages

1Ton Hydraulic Strong Power + Wide Adaptation Range

Stable 1Ton compression force handles small and medium-sized springs efficiently. The 21-57cm long stroke adapts to multiple specification needs without tool replacement.

Foot-Operated + Optional Air Pump

Foot-operated design frees both hands for assistance. Optional air pump doubles efficiency for high-frequency operations in auto repair shops.

Plastic-Coated Yokes + Lightweight

Plastic coating prevents spring slippage and damage. At only 33kg, the compressor is easily portable between workstations.

Application Scenarios

Automobile Shock Absorber Spring Replacement

Efficiently compresses springs from 380mm to 220mm in 15 seconds with no surface damage, saving 33% time compared to ratchet compressors.

In-Depth Shock Absorber Maintenance

With air pump installed, completes spring compression in 8 seconds for professional 4S store maintenance standards.

Spring Performance Testing

Tests 50 springs per day with precise length adjustment and no surface damage, 150% more efficient than manual tools.

Frequently Asked Questions

Q: Can the YD23-001 compress a spring with a diameter of 170mm?

A: Compression is not recommended as it exceeds the rated capacity and may cause equipment damage or safety risks.

Q: What if the foot pedal has no response during use?

A: Check hydraulic oil level, clean oil circuit blockage, or inspect foot pump seals following the troubleshooting steps.
