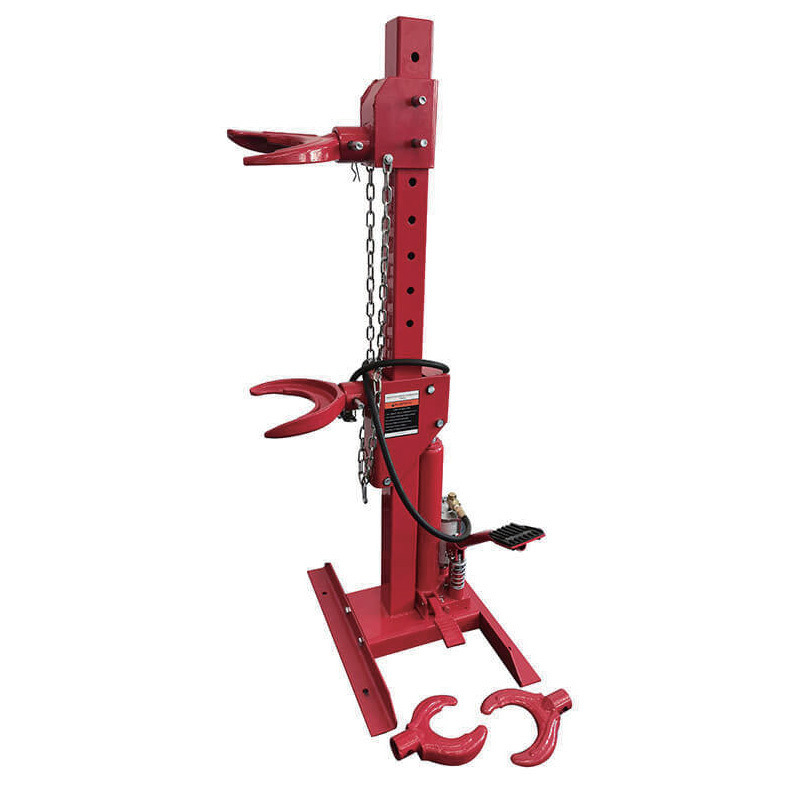

2200LBS Spring Compressor: Hand-Crank, 210-570mm for Auto Repair/Rescue
Professional Hydraulic/Air Spring Compressor (Model YD23-002)
Designed for automotive shock absorber spring disassembly and assembly, serving auto repair shops, 4S stores, and professional workshops. Solves common issues with traditional compressors including inaccurate positioning, difficult spring fixation, and low operation efficiency.
Product Specifications
| Parameter |
Description |
| Model No. |
YD23-002 |
| Load Capacity |
2200LBS (approx. 1Ton) |
| Spring Diameter Range |
≤400mm |
| Compression Length |
210-570mm |
| Drive Modes |
Hydraulic (default) and Air (0.7-1.0MPa) |
| Weight |
Gross: 36kg, Net: 32kg |
| Packing Size |
120*29*22cm |
Key Features
- 2200LBS Stable Load-Bearing: Dual-drive mode outputs uniform pressure for safe compression without jamming or rebound
- Hand Crank Precise Control: Manual adjustment with ≤5mm positioning error prevents spring damage from over-pressure
- Dual-Mode Drive: Hydraulic mode for air-source-free scenarios; Air mode doubles compression speed for batch operations

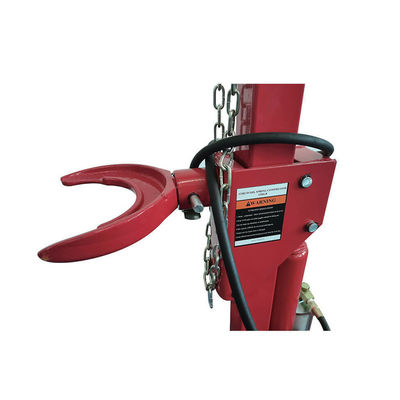

- Anti-Slip Spring Clamp: Diamond-pattern surface (friction coefficient ≥0.85) with soft rubber pad prevents slippage and surface damage
Performance Advantages
1. Strong Load-Bearing & Wide Adaptation Range
Handles difficult springs (e.g., SUV shock absorbers) with 2200LBS capacity. Processes high-strength springs with 99% success rate compared to 75% with traditional tools.
2. Precise Positioning & Efficient Operation
Hand crank enables fine adjustments (±2mm) for precision work. Air mode compresses springs in 9 seconds (vs. 18 seconds in hydraulic mode).
3. Safety & Portability
Anti-slip clamp with soft rubber protection prevents spring damage. Lightweight 32kg design allows easy transport by two people.
Application Scenarios
1. Auto Repair Shops
Efficient spring replacement for family cars (e.g., Toyota Corolla) with 37.5% faster operation than manual tools.
2. 4S Stores
Precision maintenance for high-end vehicles (e.g., BMW 3 Series) with 80% higher accuracy than standard compressors.
3. Special-Shaped Springs
Handles conical/stepped springs (e.g., Volkswagen Tiguan L) with adjustable 360° clamps.
4. Roadside Rescue
Hydraulic mode enables air-source-free operation for emergency repairs (e.g., Haval H6).
Frequently Asked Questions
Q1: Can it compress heavy-duty truck springs (420mm diameter)?
No - exceeds rated capacity (≤400mm). Requires ≥3000LBS compressor.
Q2: Air mode speed is unstable?
Check air pressure (0.7-1.0MPa), clean air pipes, or inspect air valve.
Q3: How to carry the 32kg equipment?
Use proper lifting posture, ramp boards, or lift hooks for easier transport.
Q4: Hand crank jamming?
Clean gears, apply lithium grease, or replace worn components.
