Straight Steel Ramps: 1600LBS/Pair, 183cm, Galvanized for Logistics/Construction

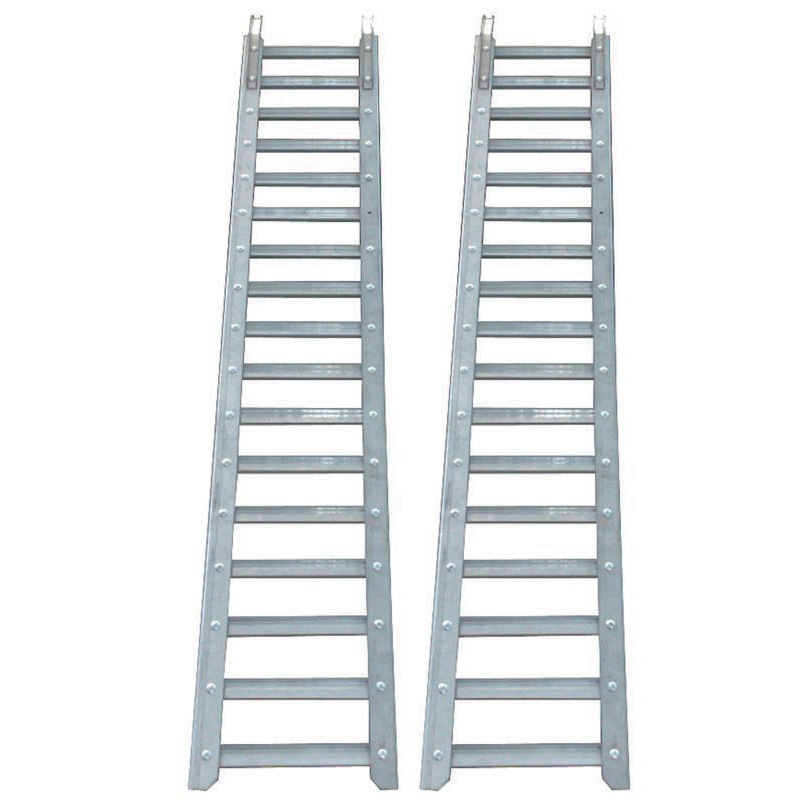

Large Image : Straight Steel Ramps: 1600LBS/Pair, 183cm, Galvanized for Logistics/Construction

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD25-002

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Load-Bearing Capacity:	Single Unit 800 Lbs (363kg), Paired 1600 Lbs (726kg)	Dimensions::	183cm (72") Length × 30cm (12") Width
Material::	Galvanized Stamped Steel (8μm Coating) With Raised Anti-slip Rungs	Durability:	1.2× Load Test (1920 Lbs) For 1 Hour Without Bending
Net Weight:	20.5kg/pair (10.25kg Per Unit)	Packaging:	1 Pair/carton (182×32×12cm)
Highlight:	steel motorcycle ramps 1600LBS capacity , galvanized steel ramps for construction , 183cm motorcycle lift bench ramps

YD25-002 Straight Steel Ramps: 1600LBS/Pair, 183cm, Galvanized for Logistics/Construction

Product Specifications

Parameter Category	Specific Description
Model	YD25-002
Product Type	Straight steel ramps for loading/unloading medium-heavy wheeled equipment (small trucks, engineering carts, large ATVs). Ideal for logistics stations, construction sites, outdoor camps, and agricultural operations.
Core Performance Parameters	Load-Bearing Capacity: Single unit 800 lbs (363kg), paired 1600 lbs (726kg) Dimensions: 183cm (72") length * 30cm (12") width Material: Galvanized stamped steel (8μm coating) with raised anti-slip rungs Durability: 1.2* load test (1920 lbs) for 1 hour without bending
Weight & Packaging	Net Weight: 20.5kg/pair (10.25kg per unit) Packaging: 1 pair/carton (1823212cm) Container Capacity: 1200 pairs/20ft container

Key Features

Enhanced Load Capacity: 33% stronger than standard ramps (1200 lbs → 1600 lbs)
Galvanized Construction: Passes 72-hour salt spray test with no rust
Straight Design: No folding joints for maximum rigidity and safety
Anti-Slip Rungs: 5mm raised profile improves traction by 50% vs flat ramps
Space-Saving Storage: Upright (0.038m²) or stacked (3 pairs ≤40cm) options

Application Scenarios

1. Logistics Station Operations

Efficiently load 1400 lbs cargo carts onto 80cm-high trucks. Complete 15+ daily cycles with 2-person handling, reducing labor costs by 50% versus manual lifting.

2. Construction Site Use

Stable performance on gravel surfaces for 1200 lbs concrete carts. Eliminates forklift rental costs ($300/day savings) with 1.5-minute loading cycles.

3. Outdoor Camp Transfers

Humidity-resistant solution for 1000 lbs ATVs. 32% lighter than cast iron ramps, enabling quick 30-second transfers between trailers and ground.

4. Agricultural Machinery

Mud-adaptive design handles 1500 lbs seeders. Saves 4 laborers versus manual methods while preventing chassis ground contact.

Frequently Asked Questions

Q: Can these ramps handle a 1700LBS tractor?

Not recommended. Exceeding the 1600LBS rating risks permanent deformation and safety hazards. For 1700LBS+ equipment, use 2000LBS+ rated ramps.

Q: How to maintain galvanized coating wear?

Sand rusted areas with 800-grit paper
Apply epoxy zinc yellow primer (2 thin coats)
Rinse after use and store upright in dry conditions

Q: Tips for easier two-person carrying?

Use reinforced handles at center of gravity
For 100m+ distances, use a folding cart
Secure in trucks with rope tie-downs

Q: Preventing mud sinkage?

Place on 40*30cm steel/plastic plates
Use 50cm ground stakes for deep mud
Pre-level ground when possible
