Tire Gauge w/Inflation Gun: 0-15bar/300PSI, Short Hose for Cars/Motorcycles/Bicycles

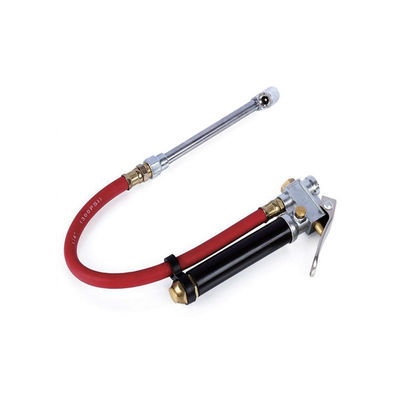

Large Image : Tire Gauge w/Inflation Gun: 0-15bar/300PSI, Short Hose for Cars/Motorcycles/Bicycles

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD31-004

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Working Pressure Range:	0-15 Bar / 0-220 Psi (compatible With Max. 300PSI Peak Pressure)	Interchangeable Gauge Scale:	Yes (supports Bar/psi Dual-unit Switching)
Air Inlet Specification:	G1/4" (standard Universal Interface)	Hose Length:	330mm (0.33 Meters)
Reader Unit Size:	60mm (dial Diameter)	Applicable Vehicles:	Cars, Motorcycles, Bicycles
Highlight:	tire gauge with inflation gun , tire gauge for cars motorcycles , tire gauge short hose

YD31-004 Multi-Vehicle Tire Air Pressure Gauge with Inflation Gun

Professional Tire Pressure Measurement and Inflation Tool for Cars, Motorcycles, and Bicycles

Product Specifications

Parameter Category	Specific Specification
Model No.	YD31-004
Working Pressure Range	0-15 bar / 0-220 psi (compatible with max. 300PSI peak pressure)
Interchangeable Gauge Scale	Yes (supports bar/psi dual-unit switching)
Air Inlet Specification	G1/4" (standard universal interface)
Hose Length	330mm (0.33 meters)
Reader Unit Size	60mm (dial diameter)
Applicable Vehicles	Cars, motorcycles, bicycles
Core Functions	Rapid tire pressure detection + precise tire inflation

Key Features

High-Pressure Compatibility: Supports up to 300PSI peak pressure for bicycle tires and emergency scenarios
Precision Measurement: Copper movement with ±1% accuracy in 0-15 bar range
Compact Design: 330mm short hose and 165mm overall length for easy storage
Durable Construction: Zinc alloy gun body and reinforced PVC hose withstand high-pressure use
Multi-Vehicle Support: Works with Schrader and Presta valve stems for cars, motorcycles, and bicycles

Technical Details

Structure & Materials

Gauge Movement: Copper precision movement with 60mm high-transparency PC dial
Short Hose: PVC reinforced high-pressure hose (6mm inner diameter, 10mm outer diameter)
Inflation Gun Body: Zinc alloy die-cast with chrome-plated rust-proof surface
Interface Components: G1/4" brass air inlet with ISO 228 standard threads

Operation Method

Tire Pressure Detection: 1-second reading with simultaneous bar/psi display
Tire Inflation: Short-hose design reduces gas residue for accurate pressure control
High-Pressure Adaptation: Built-in pressure buffer for short-term 300PSI inflation

Application Scenarios

Emergency Maintenance for Daily Commuting

Quickly check and adjust tire pressure before driving
Compact size fits in car armrest boxes
Precise measurement prevents uneven tire wear

High-Pressure Inflation for Bicycles

Supports up to 12 bar (174PSI) for road bikes
Fits in cycling backpack side pockets
Gradual inflation prevents tire blowout

Multi-Vehicle Service at Repair Stations

Single tool for cars, motorcycles, and bicycles
Compact storage on tool carts
Lightweight design reduces operator fatigue

Frequently Asked Questions

Q: Why does it support 300PSI when marked for 0-220PSI?

220PSI is the continuous working range, while 300PSI is short-term peak compatibility. The built-in buffer structure allows temporary high-pressure use without damage.

Q: What if the short hose can't reach inner tire valves?

Optional hose extension adapters (500mm/1000mm) are available, or simply turn the steering wheel to access inner valves.

Q: How to handle dial pointer not returning to zero?

Minor deviations (≤0.1 bar) can be manually adjusted using the calibration screw on the back of the dial.

Q: Will it work in low temperatures (-25℃)?

Yes, the hose and seals are low-temperature resistant. For best results, preheat the movement by pressing the switch 3-5 times before use.
