YD31-007 Tire Gauge W/Inflation Gun 0-15bar Short Hose For Cars/Motorcycles/Bicycles

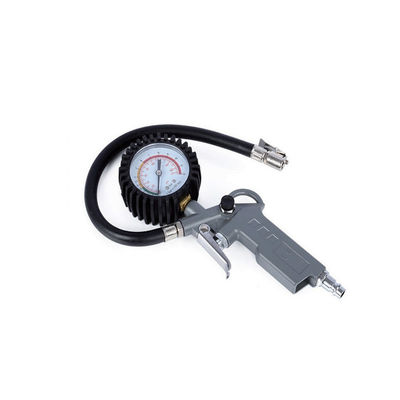

Large Image : YD31-007 Tire Gauge W/Inflation Gun 0-15bar Short Hose For Cars/Motorcycles/Bicycles

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD31-007

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Working Pressure Range:	0-15 Bar / 0-220 Psi (covers Regular Tire Pressure Needs Of Cars, Motorcycles, Bicycles, Etc.)	Interchangeable Gauge Scale:	Yes (supports Clear Switching Between Bar/psi Dual Units, No Additional Adjustment Required)
Air Inlet Specification:	G1/4" (standard Universal Interface, Supports Interface Replacement To Adapt To Different Air Sources)	Hose Length:	330mm (0.33 Meters, Portable Short-hose Design, Suitable For Small-space Storage)
Reader Unit Size:	60mm (dial Diameter, Large Size Improves Reading Clarity)	Applicable Vehicles:	Cars, Motorcycles, Bicycles, And Most Other Vehicle Types
Highlight:	tire gauge with inflation gun , short hose tire gauge for vehicles , tire pressure gauge

YD31-007 Tire Gauge with Inflation Gun: 0-15bar, Short Hose for Cars/Motorcycles/Bicycles

Product Specifications

Parameter Category	Specific Specification
Model No.	YD31-007
Working Pressure Range	0-15 bar / 0-220 psi (covers regular tire pressure needs of cars, motorcycles, bicycles, etc.)
Interchangeable Gauge Scale	Yes (supports clear switching between bar/psi dual units, no additional adjustment required)
Air Inlet Specification	G1/4" (standard universal interface, supports interface replacement to adapt to different air sources)
Hose Length	330mm (0.33 meters, portable short-hose design, suitable for small-space storage)
Reader Unit Size	60mm (dial diameter, large size improves reading clarity)
Applicable Vehicles	Cars, motorcycles, bicycles, and most other vehicle types
Core Functions	1-second rapid tire pressure detection + real-time precise tire inflation (integrated operation, no tool switching needed)
Interface Compatibility	Supports replacement of multiple interfaces such as G3/8" (accessories need to be purchased separately)

General Basic Parameters

Parameter Category	Specific Description
Product Positioning	Designed for daily commuting, short-distance travel, and family multi-vehicle maintenance scenarios. Solves storage issues of traditional long-hose tire pressure gauges and provides multi-vehicle adaptation.
Structure & Material	Gauge Movement: Copper precision movement with ±1% accuracy, 60mm high-transparency PC dial Short Hose: PVC reinforced hose rated ≥30 bar, suitable for -20℃ to 60℃ Inflation Gun Body: Zinc alloy die-cast with chrome-plated rust-proof surface Interface Components: G1/4" brass air inlet with industrial-standard thread accuracy
Operation Method	Tire Pressure Detection: Align gun nozzle with valve stem, press to seal, read dial within 1 second Tire Inflation: Connect to air source, press switch to inflate, release to check pressure Interface Replacement: Use special wrench to replace interface as needed

Key Features

Short-Hose Portability + Efficient Operation

330mm short-hose design for easy storage in tight spaces
Copper precision movement with ≤±0.025 bar accuracy in 0-15 bar range
60mm large dial with high-contrast scales for quick reading

Durable Materials + Multi-Scenario Adaptation

Zinc alloy gun body withstands 1-meter drops
Oil-resistant nitrile rubber sealing gasket for 500+ uses
Adapts to Schrader, mixed, and Presta valve stems with included spare gaskets

Humanized Design

280g lightweight design for comfortable one-handed operation
Push-type switch requires only 4N of force
Can be used as standalone pressure gauge without air source

Application Scenarios

Emergency Maintenance for Daily Commuting Car Owners

Fits in car armrest boxes (≤15*10*8cm)
Complete pressure check and inflation in under 1 minute
Prevents delays from low tire pressure

Short-Distance Cycling Maintenance

Adapts to bicycle Presta valves with included gaskets
Fits in cycling backpack side pockets (≤10cm diameter)
Prevents reduced efficiency from under-inflated tires

Community Repair Station Multi-Vehicle Service

Single tool serves cars, motorcycles, and bicycles
Fits in narrow tool cart shelves (≤15cm width)
Increases service efficiency by 60%

Frequently Asked Questions

Q1: Can the short hose reach inner tire valve stems?

A1: Yes, either use an optional hose extension adapter or adjust vehicle steering to access valve stems.

Q2: Why is there deviation from professional equipment readings?

A2: Ensure proper seal with valve stem and take multiple measurements for average. Product supports free calibration within 1 year.

Q3: How to replace aging gun nozzle sealing gasket?

A3: Purchase original 8*3mm gaskets, remove old gasket with screwdriver, press new gasket into groove.

Q4: Will the hose harden or pointer jam in cold weather (-25℃)?

A4: No, hose remains flexible and movement uses low-temperature grease. Thaw frozen surfaces with warm water if needed.
