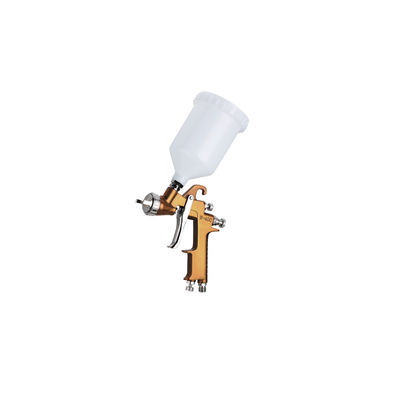

HVLP Spray Gun: 1.4/1.6/2.0mm Nozzles, 50PSI, 600mL Cup for Furniture/Auto/Decoration
Product Details
| Product Type: | HVLP (High Volume Low Pressure) Gravity Feed Spray Gun | Fluid Nozzle Size: | 1.4mm / 1.6mm / 2.0mm |
|---|---|---|---|
| Working Air Pressure: | 50 PSi | Cup Capacity: | 600 ML |
| Feed Type: | Gravity Feed | Air Inlet: | G1/4" |
| Highlight |
HVLP spray gun with multiple nozzles,HVLP spray gun for furniture painting,HVLP spray gun with 600mL cup |
||
Product Description
Professional-grade HVLP spray gun with 1.4mm/1.6mm/2.0mm nozzle options, 50PSI working pressure, and 600mL gravity feed cup. Ideal for furniture manufacturing, automotive refinishing, and decorative painting applications.
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD32-003 |
| Product Type | HVLP (High Volume Low Pressure) Gravity Feed Spray Gun |
| Fluid Nozzle Size | 1.4mm / 1.6mm / 2.0mm (3 caliber options for different viscosity coatings) |
| Working Air Pressure | 50 PSi (approx. 3.45 bar) |
| Cup Capacity | 600 mL (high-transparency design) |
| Feed Type | Gravity feed |
| Air Inlet | G1/4" standard interface |
- 1.4mm nozzle - For low-viscosity topcoats (clear coats, water-based paints)
- 1.6mm nozzle - For medium-viscosity coatings (nitrocellulose, acrylic paints)
- 2.0mm nozzle - For high-viscosity primers and industrial coatings
- Double-ring split air cap design for uniform particle distribution (≤40μm)
- Built-in high-precision pressure regulating valve (±1 PSi)
- 70% coating utilization rate (vs. 45% for traditional spray guns)
- Reduces refill frequency by 50% compared to 300mL cups
- High-transparency PC material for easy monitoring
- Thread + nitrile rubber sealing ring prevents leaks
- Gun Body: Aluminum alloy with integrated die-casting (780g), anodized surface
- Nozzle: 304 stainless steel (HRC52 hardness), precision ±0.01mm
- Cup Assembly: Impact-resistant PC material, 60° tilt angle operation
Bulk spraying of wooden doors, cabinets, and furniture components with nitrocellulose or water-based coatings.
Partial renovation of vehicle panels, including primer application and topcoat matching.
Wall painting and wooden door finishing for residential and commercial projects.
A: Fill to maximum 80% capacity (480mL) and maintain proper spraying angles (≤60° tilt).
A: Minimum 0.3m³/min for medium-to-large area spraying; 0.2m³/min only for small emergency jobs.
A: Check coating moisture content, adjust environment (20-25°C, <60% humidity), and reduce spray pressure to 45-48 PSi.
