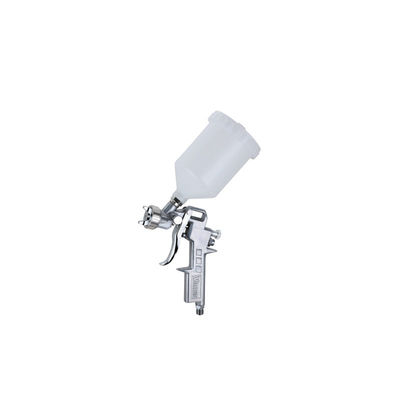

Economical Spray Gun: 1.3/1.5/1.8mm Nozzles, 50PSI, 600mL Cup for Renovation/Auto/DIY
Product Details
| Product Type: | Economical Conventional Gravity Feed Spray Gun | Fluid Nozzle Size: | 1.3mm / 1.5mm / 1.8mm (3 Caliber Options) |
|---|---|---|---|
| Working Air Pressure: | 50 PSi (approx. 3.45 Bar) | Cup Capacity: | 600 ML (high-transparency Design) |
| Feed Type: | Gravity Feed | Air Inlet: | G1/4" (standard Universal Interface) |
| Highlight |
spray gun with multiple nozzles,economical spray gun for renovation,600mL spray gun for auto DIY |
||
Product Description
An affordable, versatile spray gun with multiple nozzle sizes (1.3mm/1.5mm/1.8mm) designed for renovation, automotive, and DIY applications. Features 50PSI working pressure and 600mL capacity cup for efficient operation.
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD32-006 |
| Product Type | Economical Conventional Gravity Feed Spray Gun |
| Fluid Nozzle Size | 1.3mm / 1.5mm / 1.8mm (3 caliber options) |
| Working Air Pressure | 50 PSi (approx. 3.45 bar) |
| Cup Capacity | 600 mL (high-transparency design) |
| Feed Type | Gravity feed |
| Air Inlet | G1/4" (standard universal interface) |
| Carton Specification | 68.5*47.5*26cm (20 pieces per carton) |
- Gun Body: High-quality aluminum alloy (820g) with anodized surface for rust and wear resistance
- Fluid Nozzle: H59 environmental brass material with precision of ±0.02mm
- Cup Assembly: High-transparency PC cup (impact-resistant, solvent-resistant), 600mL capacity
- Pneumatic System: Built-in basic pressure regulating valve (precision ±2 PSi)
- 1.3mm Precision Nozzle: For low-viscosity clear coat and water-based wall paint (particles ≤40μm)
- 1.5mm Regular Nozzle: For medium-to-low viscosity coatings (efficiency 10-12㎡/hour)
- 1.8mm Industrial Nozzle: For medium-viscosity coatings (spraying thickness 25-35μm)
- Compatible with most air compressors (≥0.25m³/min displacement)
- Basic pressure regulation for quick start (range 45-55 PSi)
- 30% more efficient than low-pressure spray guns (≤40PSI)
- Reduces refueling frequency by 50% compared to 300mL cups
- High-transparency design for real-time paint level monitoring
- Lightweight aluminum alloy body (820g) for comfortable extended use
- Ideal for water-based wall paint (1.3mm nozzle)
- 600mL capacity covers approximately 12-15㎡ per fill
- 65% paint utilization rate (higher than industry average)
- 1.8mm nozzle for epoxy primer
- 1.5mm nozzle for acrylic topcoat
- Professional results at 1/3 the cost of specialized auto spray guns
- Beginner-friendly operation
- Compact size for easy storage
- Quick cleaning (2 minutes with appropriate solvent)
A: Typically caused by over-diluted paint or slow moving speed. Adjust viscosity to 15-18s and maintain 30-40cm/s spraying speed.
A: Features better atomization (≤50μm vs ＞80μm), durable materials (aluminum/brass vs plastic/zinc), and higher paint utilization (65% vs 40-50%).
A: Suitable for small-area emergencies with intermittent spraying. For large areas, ≥0.25m³/min is recommended.
