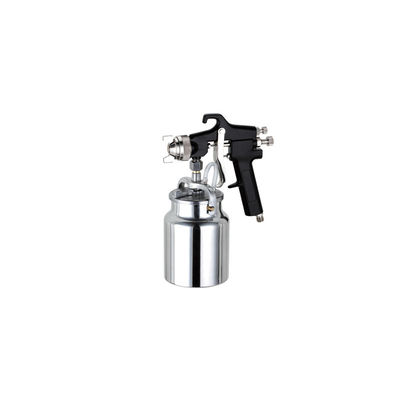

Economical Spray Gun: 1.8/2.0mm Nozzles, 50PSI, 1000mL Cup for Decoration/Hardware/DIY
Product Details
| Model No.: | YD32-007 | Fluid Nozzle Size: | 1.8mm / 2.0mm |
|---|---|---|---|
| Working Air Pressure: | 50 PSi (3.45 Bar) | Cup Capacity: | 1000 ML |
| Feed Type: | Suction Feed | Air Inlet: | G1/4" Standard Interface |
| Highlight |
economical spray gun with 1000mL cup,spray gun for decoration and DIY,1.8mm nozzle spray gun 50PSI |
||
Product Description
Professional spray gun designed for medium-to-large area, high-viscosity coating applications with 1.8mm/2.0mm nozzle options, 50PSI working pressure, and 1000mL suction feed cup.
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD32-007 |
| Fluid Nozzle Size | 1.8mm / 2.0mm |
| Working Air Pressure | 50 PSi (3.45 bar) |
| Cup Capacity | 1000 mL |
| Feed Type | Suction feed |
| Air Inlet | G1/4" standard interface |
- Large-caliber brass nozzles prevent clogging with high-viscosity coatings
- 1000mL transparent PC cup reduces refill frequency for bulk operations
- Suction feed system enables multi-angle spraying without backflow
- 50PSI optimal pressure balances atomization quality and coating adhesion
- Gun Body: High-strength aluminum alloy with anodized surface (980g weight)
- Nozzle: H59 environmental brass (±0.02mm precision)
- Cup Assembly: Impact-resistant PC with 360° rotatable silicone suction tube
- Pneumatic System: Built-in pressure regulator (±2 PSi precision)
- Select nozzle based on coating viscosity (1.8mm for medium, 2.0mm for high)
- Fill cup to 80% capacity with properly stirred coating
- Connect to air compressor (≥0.3m³/min) and adjust to 48-50 PSi
- Maintain 20-30cm spraying distance with 40-60cm/s movement speed
1.8mm nozzle for latex paint: 35㎡/hour coverage with 62% material utilization
2.0mm nozzle for thick paints: 60% faster than traditional spray guns
Beginner-friendly operation with household air compressors
Solution: Use 2.0mm nozzle, clean suction tube, and maintain 50-52 PSi pressure.
Solution: Use measuring cups or optional 300mL capacity-reducing liner.
Product Highlights
YD32-007 Economical Conventional Suction Feed Spray Gun Professional spray gun designed for medium-to-large area, high-viscosity coating applications with 1.8mm/2.0mm nozzle options, 50PSI working pressure, and 1000mL suction feed cup. Product Specifications Core Parameters Parameter Category ...
