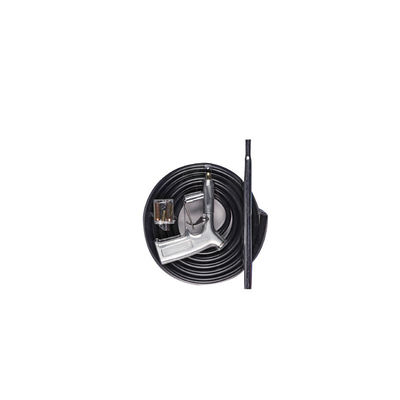

Sandblast Gun: 6mm Tungsten Nozzle, 80-120PSI, 500mL Hopper for Rust Removal/Texturing
Product Details
| Product Type: | Universal Pneumatic Sandblast Gun (dry Sandblasting Operations) | Working Air Pressure: | 80-120 PSi (5.52-8.27 Bar, Adjustable) |
|---|---|---|---|
| Max Air Pressure: | ≤150 PSi (10.34 Bar, Automatic Pressure Relief) | Sandblast Nozzle Diameter: | 6mm (tungsten Steel Material) |
| Abrasive Capacity: | 500 ML (high-transparency PC Hopper) | Feed Type: | Pressure-fed (uniform Sandblasting Without Interruption) |
| Highlight |
sandblast gun with tungsten nozzle,80-120PSI sandblast gun,sandblast gun for rust removal |
||
Product Description
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD32-010 |
| Product Type | Universal Pneumatic Sandblast Gun (dry sandblasting operations) |
| Working Air Pressure | 80-120 PSi (5.52-8.27 bar, adjustable) |
| Max Air Pressure | ≤150 PSi (10.34 bar, automatic pressure relief) |
| Sandblast Nozzle Diameter | 6mm (tungsten steel material) |
| Abrasive Capacity | 500 mL (high-transparency PC hopper) |
| Feed Type | Pressure-fed (uniform sandblasting without interruption) |
| Air Inlet | G1/4" (standard universal interface) |
| Gun Weight | 780g (aluminum alloy material) |
- Tungsten Steel Nozzle: HRC90+ hardness with 800-hour service life (5* more durable than stainless steel)
- Precision Control: 6mm fixed diameter maintains 12-18cm sandblasting width with ≤0.5μm roughness deviation
- Adjustable Pressure: 80-120PSI range for both heavy rust removal (2.5N impact force) and fine texturing
- Efficient Design: 500mL hopper enables 15-20 minutes continuous operation (50% fewer refills)
- Safety Features: Pressure relief valve activates at 150PSI; 100-mesh anti-clogging filter
- Abrasive Preparation: Use 80-120 mesh abrasives (quartz sand/glass beads), fill hopper to 80% capacity (~400mL)
- Pressure Adjustment: Connect to ≥0.5m³/min compressor; set 100-120PSI for rust removal, 80-90PSI for texturing
- Sandblasting Technique: Maintain 15-25cm distance at 45°-60° angle; move at 20-30cm/s with 30% overlap
- Maintenance: Clean nozzle/hopper with compressed air after use; store in dry environment
| Task | YD32-010 | Traditional Guns |
|---|---|---|
| 150cm² rust removal | 1 minute | 2 minutes |
| Car chassis rust removal | 1.5 hours | 3 hours |
| Abrasive utilization | 70%+ | 50% |
| Nozzle lifespan | 800 hours | 200 hours |
Process: 120PSI, 80-mesh quartz sand → 200cm² parts in 2 minutes each → 98% rust removal rate
Process: 100PSI (chassis) + 90PSI (wheels) → 1.5 hours/car (vs. 3 hours traditionally)
Process: 80PSI, 120-mesh glass beads → Ra2.0μm uniform texture → 100 badges in 2 hours
- Dry/sieve moist abrasives (60℃ for 30 minutes)
- Check hopper seal (tighten lid, replace rubber ring)
- Reduce pressure to 80-90PSI for soft materials
- Switch to 100-120 mesh fine abrasives
