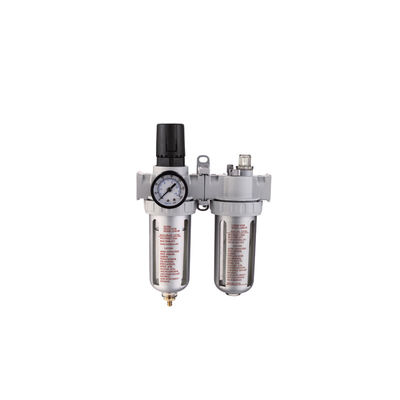

Pneumatic FRL: 40μm Filter, 10-120PSI Regulator for Factory/Auto/DIY Pneumatic Systems
Pneumatic FRL: 40μm Filter, 10-120PSI Regulator for Factory/Auto/DIY Pneumatic Systems
Pneumatic FRL: 40μm Filter, 10-120PSI Regulator for Factory/Auto/DIY Pneumatic Systems
Brand Name
YEEDA
PRODUCT MODEL
YD32-012
certificate
CE
country of origin
Zhejiang，China
MOQ
50pcs
payment method
T/T
Supply Capacity
500PCS/MONTH
Product Summary
YD32-012 Pneumatic Triple Unit (Filter/Regulator+Lubricator) Core Features: 40μm high-precision filtration for moisture, oil, and solid impurities removal Adjustable pressure range: 10-120 PSI (0.69-8.27 bar) Integrated lubricator with 120mL capacity for pneumatic component protection Multiple ...
Product Details
Highlight:
Pneumatic FRL filter regulator
,40μm pneumatic system filter
,10-120PSI pneumatic regulator
Product Type:
Pneumatic Triple Unit (Integrated Filter + Regulator + Lubricator)
Filter:
40μm High-precision Filtration
Regulator::
10-120 PSI Adjustable Range
Lubricator::
Automatically Atomizes Lubricating Oil
Max Pressure:
≤140 PSI (9.65 Bar) With Automatic Pressure Relief
Filtration Precision:
40μm (≥98% Efficiency)
Pressure Regulation Precision:
±2 PSI
Product Description
YD32-012 Pneumatic Triple Unit (Filter/Regulator+Lubricator)
Core Features:
- 40μm high-precision filtration for moisture, oil, and solid impurities removal
- Adjustable pressure range: 10-120 PSI (0.69-8.27 bar)
- Integrated lubricator with 120mL capacity for pneumatic component protection
- Multiple interface options: G1/4", G3/8", or G1/2"
- Modular design for easy maintenance and flexible installation
Product Specifications
1. Core Parameter Summary
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD32-012 |
| Product Type | Pneumatic Triple Unit (Integrated Filter + Regulator + Lubricator) |
| Functional Modules |
|
| Max Pressure | ≤140 PSI (9.65 bar) with automatic pressure relief |
| Filtration Precision | 40μm (≥98% efficiency) |
| Pressure Regulation Precision | ±2 PSI |
2. Structure & Material
- Filter Module: Polyester fiber filter element, 200mL transparent PC water cup with automatic drain valve
- Regulator Module: H59 environmental brass valve body, shock-proof pressure gauge (0-160 PSI range)
- Lubricator Module: 120mL transparent PC oil cup, Venturi tube atomization (5-10μm oil droplets)
- Overall Structure: Modular assembly, supports wall-mounted/pipeline installation
Key Advantages
1. 40μm High-Precision Filtration
- Simultaneously removes liquid and solid impurities ≥40μm
- Automatic drain valve activates when water reaches 1/3 cup volume
- Transparent PC water cup for easy visual monitoring
- Filter element can be cleaned by reverse blowing (3000+ hour service life)
2. 10-120PSI Wide-Range Pressure Regulation
- Covers requirements for various pneumatic equipment
- Oil-filled shock-proof pressure gauge (±1.5% precision)
- Anti-slip texture knob for precise pressure adjustment
- ±2 PSI output pressure fluctuation for stable operation
3. Oil Mist Lubrication System
- 90%+ lubrication efficiency with 5-10μm oil droplets
- Adjustable oil mist volume (1-5 drops per minute)
- Leak-proof sealing ring prevents oil leakage
- Extends pneumatic component service life by 2-3 times
Application Scenarios
1. Factory Pneumatic Production Lines
- Reduces cylinder failure frequency from 3/month to 1/quarter
- Extends cylinder service life from 1 year to 2.5 years
- Saves approximately 2,000 yuan/year in maintenance costs per production line
2. Auto Repair Shops
- Increases pneumatic wrench torque stability by 15%
- Eliminates paint contamination from oil in compressed air
- Reduces tool failure frequency from 2/month to 1/2 months
3. DIY Pneumatic Operations
- Prevents nail jamming in pneumatic nail guns
- Ensures smooth sanding without pressure fluctuation marks
- Extends tool service life from 6 months to 1.5 years
Frequently Asked Questions
Q1: Downstream equipment still rusts despite using the filter?
- Check if 40μm filtration is sufficient for your application
- Verify correct installation direction (IN-OUT markings)
- For high humidity (>70%), increase drainage frequency
Q2: Lubricator not discharging oil?
- Check oil level (should be above 1/4 capacity)
- Inspect for oil passage blockage
- Ensure pressure is above 10 PSI for proper atomization
Q3: Pressure drops after setting?
- Check regulator diaphragm for aging
- Inspect filter element for blockage
- Verify air compressor capacity matches equipment demand
Q4: Compatibility with small household air compressors?
- Fully compatible with 0.25m³/min compressors
- Select matching G1/4" interface model
- Recommended to manually drain after each use
