YD33-004 Tool Box: 2.5mm Aluminum, 1Ton Load, IP65+Dual Locks for Workshop/Repair/Engineering
Product Details
| Dimensions: | 1445mm (W) × 500mm (D) × 700mm (H) | Weight: | Net: 25.5kg; Gross: 28kg |
|---|---|---|---|
| Material: | 6061 Aluminum Alloy (tensile Strength ≥276MPa) | Load Capacity: | Internal: 1000kg (1 Ton); Top: 300kg |
| Sealing: | IP65 Rating (full EPDM Rubber Seal) | Locks: | 2 Keyed T-locks (brass Core, ≤0.05% Key Interchange Rate) |
| Highlight |
2.5mm aluminum tool box,1 ton load tool box,IP65 dual lock tool box |
||
Product Description

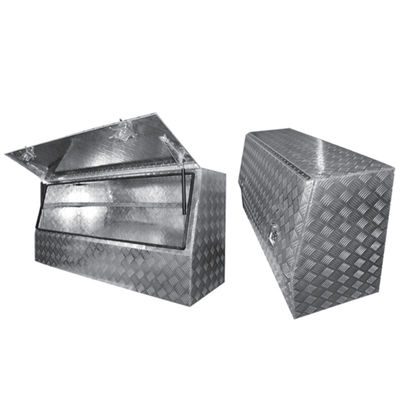

The YD33-004 1-Ton Load-Bearing Aluminum Alloy Tool Box is engineered for industrial-grade durability in demanding workshop, repair, and engineering environments. Featuring 2.5mm thick 6061 aluminum alloy construction, dual T-lock security system, and IP65-rated sealing, this heavy-duty tool box delivers exceptional load capacity (1000kg internal/300kg top) while maintaining relative lightweight portability.
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD33-004 |
| Dimensions | 1445mm (W) * 500mm (D) * 700mm (H) |
| Weight | Net: 25.5kg; Gross: 28kg |
| Material | 6061 aluminum alloy (tensile strength ≥276MPa) |
| Load Capacity | Internal: 1000kg (1 ton); Top: 300kg |
| Sealing | IP65 rating (full EPDM rubber seal) |
| Locks | 2 keyed T-locks (brass core, ≤0.05% key interchange rate) |
| Gas Struts | Dual heavy-duty (80kg each, 15,000 cycle lifespan) |
| Surface Treatment | Anodized coating (15-20μm thickness) |
- 2.5mm thick panels withstand 1-ton loads without deformation
- 40% lighter than equivalent steel tool boxes (25.5kg net weight)
- Anodized surface resists scratches, fingerprints, and UV degradation
- Passes 1.5m drop test with 50kg load (no panel depression or weld cracks)
- Two T-lock system (200% more pry-resistant than single-lock designs)
- Brass lock cores with stainless steel catches (rust-proof, ≥8 year lifespan)
- Full-circumference EPDM seal maintains IP65 rating (-40°C to 120°C)
- Prevents dust/water ingress in harsh workshop or outdoor conditions
- Dual 80kg gas struts provide synchronized lid support (95° opening angle)
- Slow-close mechanism (3cm/s) prevents tool damage and reduces noise
- Requires only 30N opening force - no tools needed for operation
- Redundant design maintains safety if one strut fails
- Centralizes storage of pneumatic wrenches (50kg each), large bearings, and test equipment
- IP65 sealing protects against coolant splashes and workshop contaminants
- Dual locks reduce tool loss - reported 100% theft prevention in field use
- Mobile storage for hydraulic pumps (80kg each), oil pipes, and maintenance tools
- Weatherproof design maintains dry conditions during outdoor use
- Anodized surface resists abrasion from contact with construction materials
- Organizes robot maintenance tools (60kg each) with precision instruments
- Dustproof sealing prevents metal particulate contamination
- Key-controlled access ensures only authorized personnel handle sensitive equipment
Solution: Check gas strut bolts for tightness (use 12mm wrench). If bolts are secure, one strut may need replacement. Avoid uneven lid loading during operation.
Solution: Gently sand affected areas (800-grit), apply aluminum anti-oxidant, and use maintenance wax quarterly for prevention.
Solution: Optional aluminum alloy partitions (300kg capacity each) can be installed without modification. Follow "heavy bottom/light top" weight distribution.
Solution: Yes - tilt at 60° angle during movement (requires 2-person coordination). Use steel plate ramp for thresholds >5cm.
