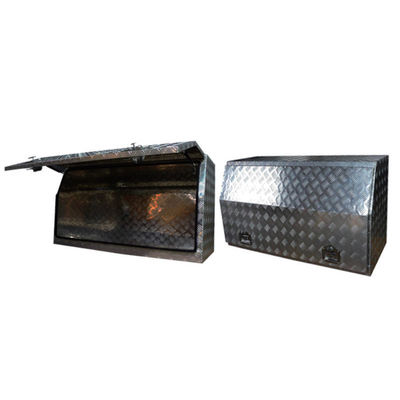

YD33-005 Tool Box: 2.5mm Alu, 1Ton Load, IP65+Front Door for Workshop/Repair/Engineering
Product Details
| Dimensions: | 1210mm (W) × 520mm (D) × 700mm (H) | Weight: | Net: 23kg; Gross: 25kg |
|---|---|---|---|
| Material: | 6061-T6 Aluminum Alloy (2.5mm Thickness) | Load Capacity: | Top: 250kg; Internal: 1000kg |
| Protection Rating: | IP65 (dustproof And Waterproof) | ||
| Highlight |
2.5mm aluminum tool box,1 ton load tool box,IP65 workshop tool box |
||
Product Description
Designed for workshops, repair stations, and engineering sites, this 2.5mm thick aluminum alloy tool box features a full front door design, 1-ton load capacity, and IP65-rated sealing for superior protection and accessibility.
| Parameter | Specification |
|---|---|
| Model Number | YD33-005 |
| Dimensions | 1210mm (W) × 520mm (D) × 700mm (H) |
| Weight | Net: 23kg; Gross: 25kg |
| Material | 6061-T6 aluminum alloy (2.5mm thickness) |
| Load Capacity | Top: 250kg; Internal: 1000kg |
| Protection Rating | IP65 (dustproof and waterproof) |
- Full Front Door Design: 110° opening angle with automatic locking gas struts for unobstructed access
- Industrial-Grade Construction: 2.5mm thick 6061-T6 aluminum alloy with checker plate surface
- Integrated Security: Brass-core T-lock handle with ≤0.05% key interchange rate
- Enhanced Protection: Full EPDM rubber seals (-40°C to 130°C temperature resistance)
- Durable Components: Gas struts rated for 12,000 cycles, lock mechanism for 8,000 cycles
The full front door opens to 110° with angled gas strut support, eliminating the need to bend over or work around obstructions. The door locks automatically when fully opened, even in unstable environments.
Constructed from 2.5mm thick 6061-T6 aluminum alloy with hard anodized finish (HV300 hardness), the box withstands 1.2m drop tests with 30kg loads without deformation. The checker plate top provides anti-slip surface (friction coefficient ≥0.8).
IP65-rated sealing with full-circumference 8mm EPDM rubber gaskets prevents dust and water ingress. The integrated T-lock handle combines security with convenient one-step operation.
Store up to 8 pneumatic wrenches (60kg each) plus bearings and testing equipment. The front door design improves retrieval efficiency by 65% compared to top-opening boxes.
Ideal for storing hydraulic breakers (70kg each) and maintenance tools. The 23kg weight allows easy relocation between work areas while maintaining IP65 protection in outdoor conditions.
Organize high-torque wrenches (50kg each) and transmission tools. The sleek design maintains professional appearance while secured storage reduces tool loss to zero.
A: This typically indicates gas strut failure or angle misalignment. Check for air leaks in the struts, verify the 45° installation angle, and ensure no excess weight is placed on the door.
A: Yes, adjustable aluminum alloy partitions (200kg capacity each) can be installed using the inner wall mounting holes. Plastic storage boxes (≤150mm height) work well for small parts organization.
A: The 1210×520×700mm dimensions easily fit in standard 1.3×1.5×2.2m elevators when placed width-wise. No disassembly required.
