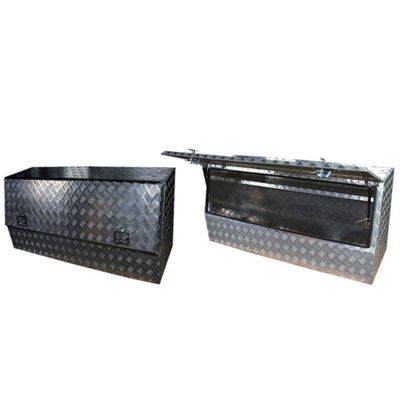

YD33-006 1-Ton Load-Bearing Aluminum Alloy Tool Box
Industrial-grade tool storage solution for heavy-duty applications
Designed for industrial workshops, heavy maintenance plants, and engineering sites, this 1-ton capacity tool box features 2.5mm thick 6061 aluminum alloy construction, IP65 sealing, and dual T-type locks for maximum security and protection.
Product Specifications
| Parameter Category |
Specific Specification |
| Model No. |
YD33-006 |
| Dimensions |
1200mm (W) * 500mm (D) * 700mm (H) |
| Weight |
Net Weight: 22kg; Gross Weight: 24kg |
| Material |
6061-T6 aluminum alloy (tensile strength ≥310MPa) |
| Load Capacity |
Top: 240kg; Internal: 1000kg (1-ton) |
| Protection Class |
IP65 (dustproof and waterproof) |
Key Structural Features
- 2.5mm thick aluminum alloy construction for superior durability
- Angled checker plate top with friction coefficient ≥0.85 for anti-slip performance
- Dual T-type locks with brass cores for enhanced security
- Full-circumference EPDM rubber seal for IP65 protection
- Heavy-duty gas strut for smooth, controlled opening/closing
- Hard anodized surface treatment for scratch and corrosion resistance
Product Advantages
1. Heavy-Duty Construction
The 2.5mm thick 6061-T6 aluminum alloy provides exceptional strength, capable of withstanding 1-ton internal loads without deformation. The box has passed 1.2m drop tests with 30kg weights, demonstrating 50% greater durability than standard aluminum tool boxes.
2. Enhanced Security & Protection
Dual T-type locks with brass cores offer superior anti-theft protection, while the IP65-rated sealing system prevents dust and water ingress. The EPDM rubber seal maintains integrity even in harsh environments.
3. Ergonomic Design
The heavy-duty gas strut provides smooth operation with opening force ≤25N, automatically locking at 90° for hands-free access. The lightweight aluminum construction (40% lighter than steel) allows for easy mobility by two people.
Application Scenarios
Heavy Machinery Factory Tool Storage
Ideal for storing multiple heavy pneumatic wrenches (60kg each), large bearings, and testing instruments. The 1-ton capacity allows organized storage while IP65 sealing protects against coolant splashes and workshop contaminants.
Engineering Site Maintenance
Perfect for mobile storage of hydraulic breakers, high-pressure oil pipes, and maintenance tools. The lightweight design enables easy movement between workstations, while the weatherproof construction performs reliably in outdoor conditions.
Auto 4S Shop Tool Management
Excellent solution for organizing high-torque wrenches, transmission tools, and engine accessories. The automatic lid locking allows efficient two-handed tool retrieval, while the professional appearance complements 4S shop environments.
Frequently Asked Questions
Q: The lid falls slowly after opening. What could be the cause?
A: This may indicate gas strut failure or loose installation screws. Check for air leaks, tighten all connections with a 10mm wrench, and ensure the lid isn't overloaded (max 20kg on lid).
Q: How should I handle oxidation spots on the surface?
A: Gently polish with 800-grit sandpaper, then apply aluminum-specific anti-oxidant. Avoid corrosive substances and consider quarterly applications of maintenance wax for prevention.
Q: Are divider accessories available for internal organization?
A: Yes, adjustable aluminum partitions (1200*500mm, 1.2mm thick) can be installed without box modification, supporting up to 200kg per partition. Plastic storage boxes are recommended for small parts.
Q: Will the box fit in standard freight elevators?
A: Yes, the 1200*500*700mm dimensions easily fit standard 1.3*1.5*2.2m freight elevators without disassembly. Position width parallel to the door for easiest access.
