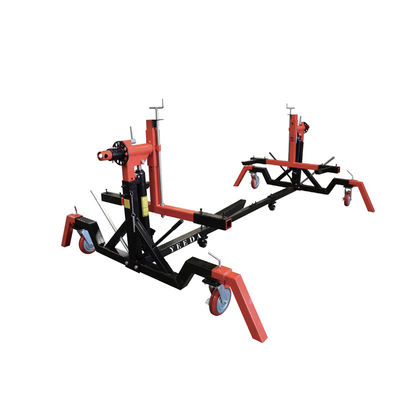

Automotive Rotisserie: 4.5k LBS, 360° Rotation, Dual Cylinders for Repair/Modification/ Restoration

Large Image : Automotive Rotisserie: 4.5k LBS, 360° Rotation, Dual Cylinders for Repair/Modification/ Restoration

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD42-002

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Type:	Hydraulic-driven Automotive Rotisserie	Rated Capacity:	4,500 LBS (2,025 Kg)
Lifting Height Range:	21" To 49.75" (53.34cm To 126.36cm)	Compatible Length:	121.7" To 260" (309.12cm To 660.4cm)
Width:	81.7" (207.52cm)	Shipping Weight:	523.6 LBS (238 Kg)
Highlight:	automotive rotisserie 360° rotation , automotive rotisserie 4.5k lbs capacity , automotive rotisserie dual cylinder restoration

YD42-002 Automotive Rotisserie: 4,500 LBS Capacity with 360° Rotation

Professional-grade hydraulic rotisserie designed for vehicle repair, modification, and restoration. Features dual hydraulic cylinders for stable lifting and 360° rotation capability for complete access to all vehicle surfaces.

Product Specifications

Parameter	Specification
Model Number	YD42-002
Type	Hydraulic-driven automotive rotisserie
Rated Capacity	4,500 LBS (2,025 kg)
Lifting Height Range	21" to 49.75" (53.34cm to 126.36cm)
Compatible Length	121.7" to 260" (309.12cm to 660.4cm)
Width	81.7" (207.52cm)
Shipping Weight	523.6 LBS (238 kg)

Core Features

Dual Hydraulic Cylinders - Synchronized lifting with ≤0.5mm error
360° Rotation Bearing - Manual rotation with ≤50N resistance
8-inch Locking Casters - Polyurethane wheels with ≥1,000 LBS capacity each
Durable Powder Coating - 60-80μm thickness with ≥72hr salt spray resistance
Overload Protection - Automatic pressure relief above 4,500 LBS

Key Advantages

1. Heavy-Duty Construction

Q235B carbon steel frame with 12mm thick critical components
Grade 8.8 high-strength bolts (50-55N*m torque)
≤0.3mm bracket deflection under full load

2. Enhanced Operation Efficiency

Adjustable-length brackets accommodate 121.7-260" wheelbases
Precision height markings (1cm accuracy) for exact positioning
Optional Rotisserie Leg Kit for additional stability during welding

3. Maintenance-Friendly Design

Waterproof double-lip bearing seals (6-month maintenance interval)
Lightweight 238kg frame with caster mobility
Tool-resistant powder coating eliminates surface damage

Application Scenarios

Body Restoration

Complete 360° access enables thorough rust removal and painting of all surfaces. Typical process time reduced by 1 day compared to fixed workstations.

Chassis Modification

Stable positioning at any angle simplifies welding and component replacement. Increases chassis modification efficiency by 40%.

Accident Repair

Precise straightening and welding access in confined spaces. Maintains 0.3mm straightening accuracy for structural repairs.

Frequently Asked Questions

Q: What causes uneven lifting between hydraulic cylinders?

A: Check hydraulic oil levels, bleed air from cylinders, and inspect control valves. Ensure both circuits have equal oil supply and no air pockets.

Q: How to reduce rotation resistance?

A: Clean and lubricate bearings with lithium grease, check for debris, and verify clamp tension isn't excessive.

Q: Vehicle compatibility requirements?

A: Verify weight ≤2,025kg, wheelbase 309-660cm, and proper mounting points. Special adapters available for unique configurations.

Tag:

Contact Person: Ms. Joyce Chou

Tel: 86-18668380852
