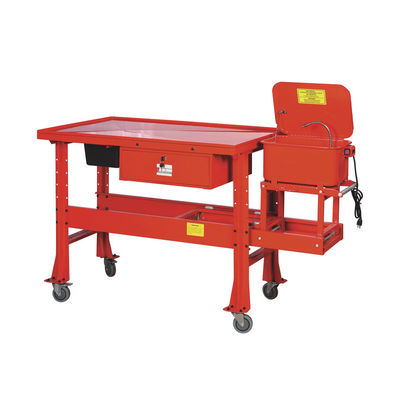

YD43-002 Combo Cleaning Table: 48"*23" Top, 3.5Gal Washer, 4" Casters for Auto/Agri/Construction
Industrial-Grade Combination Cleaning Workstation
The YD43-002 Combination Cleaning Table integrates a large work surface, professional parts cleaning system, tool storage, and mobile functionality for heavy-duty maintenance scenarios in automotive, agricultural, and construction industries.
Product Specifications
| Parameter Category |
Specific Specification |
| Model No. |
YD43-002 (Industrial-grade large combination cleaning table) |
| Product Type |
Mobile multi-functional cleaning workbench (non-electric manual type) |
| Main Material |
14-gauge thick steel plate (approx. 2.0mm thick, tensile strength ≥400MPa) |
| Core Tabletop Specifications |
- Size: 48" * 23" (121.92cm * 58.42cm)
- Leak-Proof Design: 3/4" (1.91cm) high rim
- Surface Treatment: Sandblasted with double-layer oil-resistant paint
|
| Cleaning System Configuration |
- 3.5-gallon (13.25L) polyethylene parts washer
- 8L detachable waste fluid collection box
- Manual soaking + brush cleaning method
|
| Tool Storage & Mobility |
- 36L heavy-duty tool drawer with steel ball slide rails
- 4-inch heavy-duty casters (2 fixed + 2 lockable swivel)
|
| Weight & Dimensions |
- Net weight: 86kg
- Overall dimensions: 143cm * 83cm * 62cm (L * W * H)
|
Performance Test Results
| Test Item |
Test Condition |
Test Result |
| Tabletop Load-Bearing |
100kg weight for 48 hours |
No depression or bending (≤0.3mm flatness error) |
| Leak-Proof Performance |
5L water at 5° inclination for 2 hours |
No fluid leakage |
| Caster Durability |
100kg load moved 100 meters |
No jamming or wear |
| Drawer Durability |
2000 cycles with 15kg load |
No jamming or decreased smoothness |
Key Features
14-Gauge Steel + Super-Large Tabletop
- High-strength structure with double-layer reinforcing ribs
- 3/4" high leak-proof rim (70% more reliable than welded rims)
- 48*23" work surface accommodates multiple large parts
- Rounded edges for operator safety
Flexible Mobility + Professional Cleaning
- 4-inch heavy-duty casters (≤100N push force required)
- Locking mechanism with ≥0.8 anti-slip coefficient
- 3.5-gallon acid/alkali-resistant parts washer
- 8L sealed waste fluid collection box
Convenient Storage & Operation
- 36L drawer with steel ball slide rails
- Adjustable partitions for tool organization
- No power required - safe for flammable cleaning agents
- Low maintenance cost with 5+ year service life
Application Scenarios
Automotive Engine Block Cleaning
Ideal for medium-sized repair shops handling engine overhauls (e.g., Mercedes-Benz E-Class):
Stable placement of 60kg engine blocks
Flexible movement to workstations
Complete cleaning within 5 hours
Agricultural Machinery Gearbox Maintenance
Perfect for tractor gearbox overhauls (e.g., John Deere):
Supports 80kg gearbox assemblies
Organized tool storage
8-hour complete service
Construction Machinery Hydraulic Cylinder Service
Excellent for excavator hydraulic maintenance (e.g., Sany Heavy Industry):
Accommodates 120cm-long cylinders
Outdoor operation capability
4-hour complete maintenance
Frequently Asked Questions
Tabletop shows slight inclination with heavy parts?
1. Check ground flatness with level meter
2. Ensure all casters are properly locked
3. Place heavy parts in center of tabletop
Parts washer filter screen frequently blocked?
1. Pre-clean parts with compressed air
2. Clean filter screen after each heavy part
3. Consider 1mm coarse filter replacement
How to determine part compatibility?
1. Max part size: 48"L * 23"W * 20"H
2. Max single part weight: 80kg
3. Use only pH 5-9 cleaning agents
Casters sticking or locking failing?
1. Clean bearings and apply lithium grease
2. Replace brake pads if worn
3. Monthly high-pressure cleaning recommended
