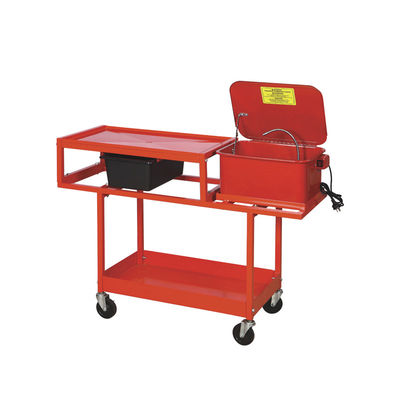

YD43-003 Combo Cleaning Table: 27.5"×16" Top, 3.5Gal Washer, for Auto/Agri/Hardware
Product Details
| Product Type: | Compact Multi-functional Cleaning Workbench | Main Material: | 14-gauge Thick Steel Plate |
|---|---|---|---|
| Size: | 27.5" × 16" (approx. 69.85cm × 40.64cm) | Leak-Proof Design: | 3/4" (approx. 1.91cm) High Rim |
| Surface Treatment: | Sandblasted With Oil-resistant Paint | Net Weight:: | 27kg |
| Highlight |
combo cleaning table with washer,27.5 inch cleaning table for auto,3.5 gallon washer for hardware |
||
Product Description
The YD43-003 Combination Cleaning Table is a lightweight industrial-grade solution that integrates parts cleaning, tool storage, and workbench functions. Designed for small automotive maintenance, agricultural machinery repair, and hardware parts processing, this compact unit combines durability with efficient workspace organization.
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD43-003 |
| Product Type | Compact multi-functional cleaning workbench (non-electric manual type) |
| Main Material | 14-gauge thick steel plate (approx. 2.0mm thick, tensile strength ≥400MPa) |
| Core Tabletop Specifications |
|
| Cleaning System Configuration |
|
| Tool Storage Function |
|
| Weight & Dimensions |
|
- High-strength structure with welded reinforcing ribs for 25% increased tensile strength
- 3/4" high rim prevents cleaning fluid leakage with 50% better reliability than post-attached rims
- Compact size (123*45*30cm) saves space in small repair shops
- Acid and alkali resistant polyethylene parts washer for professional cleaning
- 5L waste fluid box with sealed lid prevents odor volatilization
- Lightweight 27kg design for easy handling without power requirements
- 10.5L capacity tool drawer with silent slide rails (≤45dB noise)
- Durable materials reduce maintenance costs to 1/3 of plastic cleaning tables
- High container loading capacity (154 sets per 20-foot container)
| Test Item | Test Condition | Test Result |
|---|---|---|
| Tabletop Load-Bearing | 40kg weight placed for 24 hours | No depression, flatness error ≤0.2mm |
| Leak-Proof Performance | 2L water at 3° inclination for 1 hour | No fluid leakage |
| Corrosion Resistance | 10% neutral cleaning agent for 72 hours | No cracking or deformation |
| Drawer Durability | 1500 pull-out cycles with 3kg tools | No jamming, normal function |
- Batch cleaning of pistons, valves, and spark plugs
- Saves 40 minutes compared to traditional methods
- Prevents cleaning agent contamination on workshop floors
- Cleans 20+ bearings in batches
- No power required for outdoor field maintenance
- Reduces equipment procurement costs by 60%
- Processes 100 gears within 4 hours
- Improves product qualification rate from 95% to 99%
- Saves 1.5 hours compared to ground cleaning methods
- Check tabletop level (should be ≤3° inclination)
- Inspect rim for gaps and apply industrial sealant if needed
- Control fluid height (≤0.95cm above tabletop)
- Clean the filter screen every 50 parts
- Replace cleaning agent every 80 parts
- Pre-treat parts with compressed air to remove loose debris
- Maximum part size: 27.5" * 16" * 8"
- Maximum single part weight: 10kg
- Use only neutral/weakly alkaline cleaning agents (pH 5-9)
- Clean slide rail impurities with alcohol
- Apply lithium-based grease for lubrication
- Adjust misaligned limit buckles
