YD43-007 40Gal Dual-Tank Washer: 5.28GPM Dual Pumps, for Auto/Agri/Construction
Product Details
| Packaging Specification: | 1 Unit/carton (thick Plywood Wooden Box + EPE Foam Cushioning) | Weight:: | Gross Weight 45kg, Net Weight 42kg |
|---|---|---|---|
| Overall Dimension:: | 114×55×33cm (L×W×H) | Container Loading Capacity: | 145 Units In 20-foot Container, 290 Units In 40-foot Container |
| Tank Design: | Two Separated Sealed Tanks (Total Capacity 40 Gallons) | Solvent Capacity Range: | Max. 24 Gallons, Min. 12 Gallons |
| Highlight |
40Gal dual-tank washer for auto,5.28GPM dual pumps washer,washer for agri construction |
||
Product Description
| Parameter Category | Specific Specification |
|---|---|
| Model No. | YD43-007 (Industrial-grade dual-tank large parts washer) |
| Product Type | Electric dual-tank parts washer |
| Basic Parameters |
|
| Core Configuration of Cleaning System |
|
| Safety Structure |
|
| Applicable Scenarios |
|
| Test Item | Test Condition | Test Result |
|---|---|---|
| Dual-Pump Spray Stability | Operate dual pumps simultaneously for 2 hours | Spray pressure stable at 0.32-0.35MPa with no fluctuation |
| Fire Safety | Simulate high temperature of 130℃ | Fusible link breaks within 25 seconds, lids close simultaneously |
| Leak-Proof Performance | Fill both tanks for 48 hours | No leakage from the tanks, meeting leak-proof standards |
| Effectiveness of Overload Protection | Simulate an overload scenario | Motor powers off automatically within 3 seconds |
- Dual-Tank Partitioning: Different functional solvents can be injected separately (degreaser in left tank, rust inhibitor in right tank)
- Dual-Pump High-Pressure Spray: Total flow rate reaches 10.56 gallons/minute, spray pressure penetrates deep holes and gaps

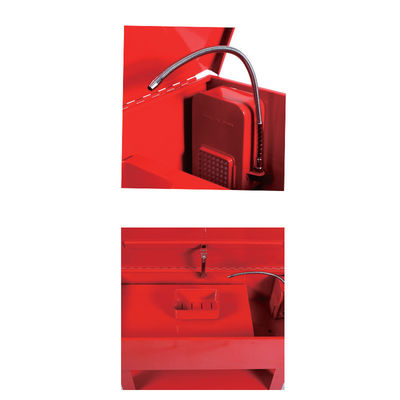

- Adjustable Spray Rods: Maximum length of 60cm, 360° rotatable nozzles
- Fusible Link Fire-Proof Lids: Automatically close at high temperature to block oxygen
- Motor Overload Protection: Automatically powers off when current exceeds rated value
- Welded Sealing Technology: No gaps at joints, solvent leakage ≤5ml/24h
- Thickened Material: 2.5mm thick cold-rolled steel plate with three layers of oil-resistant paint
- Parts Baskets: For storing small parts (capacity 10L each)
- Bottom Anti-Slip Pads: 5mm thick rubber (friction coefficient ≥0.8)
- Dual-Voltage Compatibility: 110V/240V versions available
- Inclined Tank Bottom Design: Easy sediment discharge without dumping
- Complete "cleaning-rust prevention" process within 3 hours
- Saves 2 hours compared to traditional single-tank method
- Oil stains and carbon deposits completely removed
- Process 2 crankshafts within 4 hours
- Saves 2.5 hours compared to single-tank operation
- No solvent leakage or motor overload risk
- Complete cleaning within 2.5 hours
- No residual impurities in cylinder barrels
- Single cleaning cost 70% lower than outsourcing
- Check for pump blockage at liquid inlet
- Confirm overload protection status
- Check line connection for looseness
- Replace middle gasket if aging
- Control part liquid carrying capacity during transfer
- Perform regular solvent replacement
- Part length ≤114cm, width ≤55cm, height ≤30cm
- Single part weight ≤50kg
- Use only neutral/weakly alkaline solvents
- Clean nozzles after each use
- Perform weekly maintenance with ultrasonic cleaner
- Install high-precision filter screen at liquid inlets
Product Highlights
