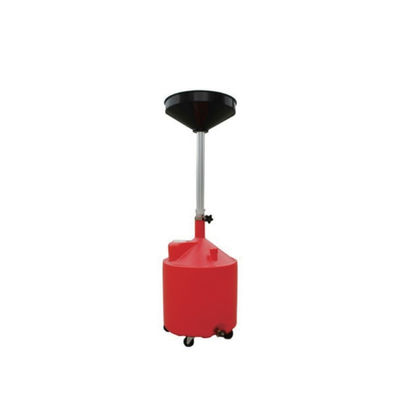

YD44-004 18Gal Heavy-Duty Oil Drainer: 37-72" Height, 3" Casters, for Trucks/Agri/Machinery
Product Details
| Model: | YD44-004 | Product Type: | HDPE Heavy-duty Mobile Waste Oil Drainer |
|---|---|---|---|
| Outer Packing Size: | 48×44.5×77.5cm | Shipping Weight: | 8kg |
| Temperature Range: | -30℃-80℃ | Medium:: | Waste Vehicle Oil |
| Highlight |
18-gallon heavy-duty oil drainer,oil drainer for trucks and machinery,oil drainer with 3-inch casters |
||
Product Description
| Parameter Category | Specific Specification |
|---|---|
| Model | YD44-004 (Industrial-grade heavy-duty mobile oil drainer, integrating extra-large capacity, ultra-high adaptability, and stable mobility) |
| Product Type | HDPE heavy-duty mobile waste oil drainer |
| Basic Parameters |
|
- Oil Storage System: 18-gallon capacity (approx. 75L), thickened HDPE material (5mm thick)
- Height Adjustment System: Adjustable from 37-72 inches with buckle-type locking
- Mobility System: 4 heavy-duty 3-inch casters with single load capacity ≥20kg
- Discharge System: 3/4-inch large-caliber HDPE valve for fast discharge
Designed for "large capacity + high adaptability + heavy load", the YD44-004 addresses key challenges in heavy-duty equipment oil change scenarios.
- Collects oil change volume of 3 heavy-duty trucks or 2 large tractors in one operation
- 3/4-inch valve discharges 75L of waste oil in 37 minutes (50% faster than standard valves)
- Clear capacity scale lines and 5cm safety height prevent overflow
- Adjustable height accommodates equipment from medium-duty trucks to mining excavators
- 3-inch casters handle gravel, mud, and uneven surfaces with minimal pushing force
- Brake system maintains stability even on 10° inclined surfaces
- 5mm thickened HDPE tank withstands 15kg impacts without cracking
- 40% lighter than metal oil drainers of same capacity (only 8kg)
- Compact storage dimensions (48*44.5*77.5cm) for workshop spaces
- Completes oil changes for 3 trucks in 2 hours (1 hour faster than standard drainers)
- 40-inch height perfectly aligns with truck chassis (100cm)
- Lightweight design allows easy movement by two personnel
- 72-inch height accommodates high-chassis tractors (180cm)
- 3-inch casters move smoothly on field gravel roads
- Collects 70L of waste oil from 2 tractors without mid-process dumping
- Install funnel extension ring to increase opening area by 30%
- Control oil drainage flow by adjusting valve opening
- Check tank capacity before collection to ensure sufficient space
- Clean valve interior with high-pressure water to remove impurities
- Replace silicone sealing ring if cracks or deformation are found
- Perform monthly lubrication with food-grade lubricating oil
Product Highlights
