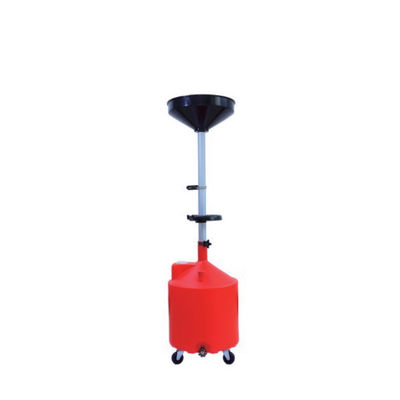

YD44-005 18Gal Oil Drainer: 37-76" Height, Tool Tray, 3" Casters, for Trucks/Agri/Machinery

china Jiaxing Yeeda International Co.,Ltd certification
china Jiaxing Yeeda International Co.,Ltd certification
I'm Online Chat Now

YD44-005 18Gal Oil Drainer: 37-76" Height, Tool Tray, 3" Casters, for Trucks/Agri/Machinery

YD44-005 18Gal Oil Drainer: 37-76" Height, Tool Tray, 3" Casters, for Trucks/Agri/Machinery
YD44-005 18Gal Oil Drainer: 37-76" Height, Tool Tray, 3" Casters, for Trucks/Agri/Machinery

Large Image :  YD44-005 18Gal Oil Drainer: 37-76" Height, Tool Tray, 3" Casters, for Trucks/Agri/Machinery

Product Details:
Place of Origin: Zhejiang,China
Brand Name: YEEDA
Certification: CE
Model Number: YD44-005
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: Carton Box or Crate
Delivery Time: 30-45DAYS
Payment Terms: T/T
Supply Ability: 500PCS/MONTH
Detailed Product Description
Model: YD44-005 Product Type: HDPE Heavy-duty Mobile Waste Oil Drainer With Tool Tray
Outer Packing Size:: 48*44.5*77.5cm Shipping Weight: 8.5kg
Temperature Range: -30°C To 80°C Medium:: Waste Vehicle Oil
Highlight:

18-gallon oil drainer for trucks

,

oil drainer with tool tray

,

heavy-duty oil drainer with casters

YD44-005 18 Gallon Heavy-Duty Mobile Oil Drainer with Tool Tray
Industrial-Grade Waste Oil Collection Solution for Trucks, Agricultural & Construction Machinery
Key Features:
  • 18-gallon (75L) high-capacity HDPE oil tank
  • Adjustable height range: 37-76 inches (94-193cm)
  • Integrated 4L tool tray with non-slip handle
  • 3-inch heavy-duty casters with brake locking
  • 3/4-inch large-diameter discharge valve
  • Temperature range: -30°C to 80°C
Product Specifications
Parameter Category Specific Specification
Model YD44-005 (Industrial-grade heavy-duty multi-functional mobile oil drainer)
Product Type HDPE heavy-duty mobile waste oil drainer with tool tray
Basic Parameters
  • Outer Packing Size: 48*44.5*77.5cm
  • Shipping Weight: 8.5kg
  • Temperature Range: -30°C to 80°C
  • Medium: Waste vehicle oil (engine oil, hydraulic oil, gear oil)
Core Structure Configuration
Oil Storage System
  • 18-gallon (75L) capacity HDPE oil tank (5mm thickness)
  • 15L capacity collection funnel with 16.5" diameter
  • Clear volume scales with 5cm safety height
Height Adjustment System
  • Aluminum alloy adjustable pipe (2" diameter)
  • Spring clip locking mechanism (no tools required)
  • Height range: 37-76 inches (94-193cm)
Mobility & Storage System
  • Four 3" heavy-duty swivel casters (load capacity ≥20kg each)
  • 4L capacity tool tray with non-slip handle
  • 3/4" HDPE discharge valve (5000+ cycles lifespan)
Performance Advantages
Large Capacity & Efficient Discharge
  • Handles oil changes for 3 heavy-duty trucks or 2 large tractors in single collection
  • 75L waste oil drains in 40 minutes (50% faster than standard valves)
  • Leak-proof silicone seals (≤1ml/24h leakage)
Ultra-High Adaptability
  • 76" maximum height accommodates mining excavators and combine harvesters
  • Stable spring clip locking prevents pipe movement during operation
Durable Construction
  • 5mm thickened HDPE tank withstands 15kg impacts
  • No discoloration or chalking after 4 years outdoor exposure
  • Full HDPE construction resists corrosion from oils and environmental factors
Application Scenarios
Mining Equipment Maintenance
  • Hydraulic oil changes for large excavators (e.g., Sany SY750H)
  • Stable operation on gravel terrain with 3" casters
Heavy-Duty Truck Repair Shops
  • Batch oil changes for multiple trucks (e.g., Jiefang J7)
  • Tool tray organizes wrenches, filters, and drain plugs
Agricultural Machinery Maintenance
  • Gear oil changes for large combine harvesters (e.g., Kubota PRO1108Q)
  • Muddy field operation with stable caster performance
Frequently Asked Questions
Spring Clip Maintenance

Clean impurities and lubricate to restore elasticity. Replace spring clip core if needed. Avoid adjusting beyond 37-76" range.

Tool Tray Organization

Use partitioned storage and anti-slip pads to prevent tool collision. Maximum 3kg load capacity.

Inclined Ground Movement

Plan flat paths when possible. Use two-person coordination for stability. Regularly check caster condition.

High-Viscosity Liquids

Not recommended for industrial gear oil (≥300cSt viscosity). Conduct small-scale tests if absolutely necessary.
