YD44-006 18Gal Oil Drainer: 37-72" Height, Iron Hand Pump, 3" Casters, for Trucks/Agri/Machinery

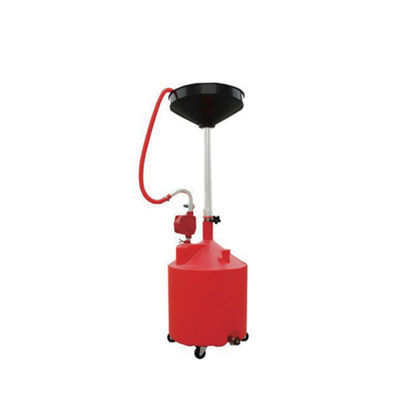

Large Image : YD44-006 18Gal Oil Drainer: 37-72" Height, Iron Hand Pump, 3" Casters, for Trucks/Agri/Machinery

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD44-006

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Outer Packing Size:	48×44.5×77.5cm	Shipping Weight:	11.8kg
Temperature Range::	-30℃-80℃	Medium:	Waste Vehicle Oil
Height Adjustment System:	Adjustable Range: 37-72 Inches Aluminum Alloy Pipe With Buckle-type Locking	Mobility & Oil Drainage System:	4 X 3-inch Heavy-duty Swivel Casters Iron Hand Pump With 100ml/stroke Displacement 3/4-inch Dual-mode Valve
Highlight:	18-gallon oil drainer with hand pump , iron oil drainer for trucks and machinery , oil drainer with 3-inch casters

YD44-006 18Gal Oil Drainer: 37-72" Height, Iron Hand Pump, 3" Casters, for Trucks/Agri/Machinery

Product Specifications

Parameter Category	Specific Specification
Model	YD44-006 (Industrial-grade heavy-duty mobile oil drainer with hand pump, integrating 18-gallon large capacity, fast oil drainage via hand pump, and ultra-high adaptability)
Product Type	HDPE heavy-duty mobile waste oil drainer with iron hand pump
Basic Parameters	Outer Packing Size: 48×44.5×77.5cm Shipping Weight: 11.8kg Temperature Range: -30℃-80℃ Medium: Waste vehicle oil (collection of strong acids, alkalis, and flammable/explosive liquids is prohibited)
Core Structure Configuration	Oil Storage System 18-gallon capacity (approx. 75L) 5mm thickened high-density polyethylene (HDPE) oil tank 16.5 inch diameter collection funnel Height Adjustment System Adjustable range: 37-72 inches Aluminum alloy pipe with buckle-type locking Mobility & Oil Drainage System 4 x 3-inch heavy-duty swivel casters Iron hand pump with 100ml/stroke displacement 3/4-inch dual-mode valve

Key Features

Iron Hand Pump + Dual-Mode Oil Drainage

100ml per stroke displacement - drains 75L in 12 minutes (3x faster than natural drainage)
Cold-rolled steel pump body with double-layer anti-rust coating
3/4-inch valve allows both pump-assisted and natural drainage modes

18-Gallon Capacity with Height Adaptability

Collects oil from 3 heavy-duty trucks or 2 large tractors in single operation
37-72 inch height range accommodates medium trucks to large harvesters
Buckle-locking system prevents pipe sliding during operation

Heavy-Duty Construction

3-inch casters with ≥25kg load capacity per wheel
5mm thickened HDPE tank withstands 18kg impacts
Full HDPE construction resists corrosion in extreme environments

Performance Testing

Test Item	Test Condition	Test Result
Hand Pump Drainage Efficiency	75L waste oil drainage via manual pumping	Completed in 12 minutes (6.25L/min) with no leakage
Height Adaptation Stability	72" height with 25L oil pour	No pipe shaking or oil spillage
Caster & Pump Stability	300m movement on gravel with full load + pumping	No jamming or displacement
Low-Temperature Resistance	-30℃ exposure then 80℃ oil drainage	No tank damage or drainage issues

Application Scenarios

1. Mining Equipment Maintenance

Power-free operation in remote mining areas
Handles 50L hydraulic oil changes for large excavators
3-inch casters navigate gravel terrain

2. Agricultural Machinery Maintenance

Batch oil changes for multiple tractors
Muddy field operation capability
Reduces dumping frequency by 50%

3. Explosion-Proof Truck Repair Shops

No electrical components - meets explosion-proof requirements
Efficient manual drainage in restricted environments
Compact design for workshop mobility

Frequently Asked Questions

Q1: Increased pump resistance or reduced oil discharge?

Clean pump body impurities with high-pressure water
Replace worn silicone sealing ring
Monthly lubrication with food-grade oil

Q2: Casters sinking in mud?

Install rubber anti-slip covers
Create temporary paths with boards/plates
Maintain steady pushing speed

Q3: Leakage at pump-tank connection?

Tighten connecting bolts
Replace aging sealing ring
Quarterly inspection and cleaning

Q4: Can it collect high-viscosity industrial gear oil?

Designed for ≤200cSt viscosity (vehicle oil)
≥300cSt gear oil may cause pump jamming
Small-dose testing recommended if necessary
