YD44-008 18Gal Oil Drainer: 37-76" Height, Iron Hand Pump, 3" Casters, for Trucks/Agri/Machinery

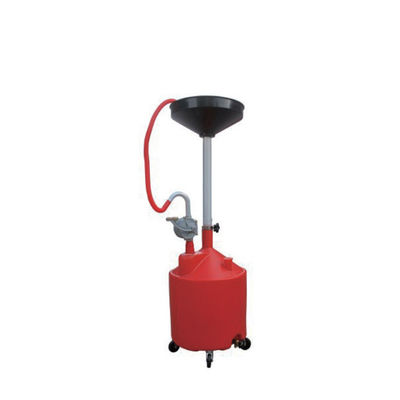

Large Image : YD44-008 18Gal Oil Drainer: 37-76" Height, Iron Hand Pump, 3" Casters, for Trucks/Agri/Machinery

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD44-008

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model:	YD44-008	Product Type:	HDPE Heavy-duty Mobile Waste Oil Drainer With Iron Hand Pump
Outer Packing Size:	48×44.5×77.5cm	Shipping Weight:	12.5kg
Temperature Range:	-30℃-80℃	Medium::	Waste Vehicle Oil (collection Of Strong Acids, Alkalis, And Flammable/explosive Liquids Is Prohibited)
Highlight:	18-gallon oil drainer with hand pump , iron oil drainer for trucks and machinery , oil drainer with 3-inch casters

YD44-008 18Gal Oil Drainer: 37-76" Height, Iron Hand Pump, 3" Casters, for Trucks/Agri/Machinery

Product Specifications

Parameter Category	Specific Specification
Model	YD44-008 (Industrial-grade heavy-duty mobile oil drainer with hand pump, integrating 18-gallon extra-large capacity, 76-inch ultra-high adaptability, and fast oil drainage via iron hand pump)
Product Type	HDPE heavy-duty mobile waste oil drainer with iron hand pump
Basic Parameters	Outer Packing Size: 4844.577.5cm Shipping Weight: 12.5kg Temperature Range: -30℃-80℃ Medium: Waste vehicle oil (collection of strong acids, alkalis, and flammable/explosive liquids is prohibited)

Core Structure Configuration

Oil Storage System: 18-gallon capacity (approx. 75L), 5mm thickened HDPE oil tank with 15L collection funnel
Height Adjustment System: 37-76 inch adjustable range, aluminum alloy pipe with buckle-type locking
Mobility System: 4x 3-inch heavy-duty casters with single load capacity ≥30kg
Oil Drainage System: Iron hand pump with 120ml/stroke displacement, 3/4-inch dual-mode valve

Durability Indicators

HDPE oil tank withstands 20kg vertical impact without cracking
No obvious discoloration after 5 years of outdoor exposure
Hand pump service life ≥12,000 presses
Casters maintain performance after 500m movement with full 75L load

Key Features

Iron Hand Pump + Dual-Mode Oil Drainage

120ml/stroke displacement drains 75L waste oil in 10 minutes (4x faster than natural drainage)
Cold-rolled steel pump body with double-layer anti-rust treatment
3/4-inch valve supports both fast pump drainage and natural gravity drainage modes

37-76 Inch Ultra-High Adaptability

Adjustable height range covers medium trucks to mining excavators
Buckle-type locking ensures stable positioning even during equipment vibration
5mm thickened HDPE construction resists impact and extreme temperatures

3-Inch Heavy-Duty Casters + 18-Gallon Capacity

30kg single caster load capacity handles complex terrain
18-gallon capacity collects oil from 3 heavy-duty trucks or 2 large tractors
Clear tank markings with 5cm safety height prevent overflow

Application Scenarios

Excavator Oil Change in Mining Equipment Maintenance Areas

Adapts to 190cm chassis height of mining excavators
Hand pump operation requires no power supply
3-inch casters move smoothly on gravel roads
Completes 60L oil change + drainage in 2 hours (saves 1.5 hours)

Batch Tractor Oil Change at Outdoor Agricultural Maintenance Points

18-gallon capacity reduces drainage frequency during batch operations
Operates in muddy field conditions without power supply
Increases batch oil change efficiency by 50%

Oil Change in Explosion-Proof Truck Repair Shops

Pure mechanical operation meets explosion-proof requirements
No electrical components or spark risks
Completes 3-truck oil change (66L) in 2.5 hours (saves 1 hour)

Frequently Asked Questions

Q1: When pressing the hand pump, the resistance suddenly increases or the oil discharge volume drops sharply. What is the reason?

This is typically caused by impurity blockage or piston seal wear. Solution steps:

Clean pump body with high-pressure water gun
Replace piston sealing ring if needed
Perform monthly lubrication and quarterly disassembly cleaning

Q2: When moving on muddy ground, the casters sink into the mud. How to solve this?

Install rubber anti-slip covers on casters
Lay temporary wooden board or steel plate paths
Maintain constant pushing speed without sudden stops

Q3: Leakage occurs at the connection between oil tank and hand pump after long-term use. How to handle?

Tighten connecting bolts
Replace silicone sealing ring if needed
Perform quarterly disassembly and cleaning

Q4: Can this collect high-viscosity liquids like industrial gear oil?

Designed for vehicle oil (viscosity ≤200cSt). For industrial gear oil:

Not recommended for long-term use
Conduct small-dose test first if necessary
May cause pump jamming and accelerated wear
