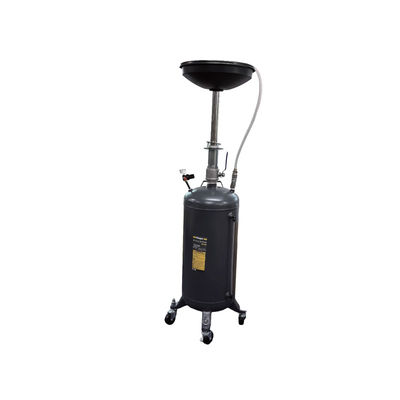

YD44-010 20Gal Pneumatic Oil Drainer: 52-83" Height, 16" Funnel, for Shops/Beauty/Lines
Product Details
| Package Size: | 48×48×115cm | G.W./N.W.:: | 41kg/28kg |
|---|---|---|---|
| Working Pressure:: | 0.4-0.8MPa Compressed Air | Medium: | Waste Vehicle Oil |
| MOQ: | 50 Units | ||
| Highlight |
20 gallon pneumatic oil drainer,pneumatic oil drainer with funnel,motorcycle lift bench oil drainer |
||
Product Description
| Parameter Category | Specific Specification |
|---|---|
| Model | YD44-010 (Industrial-grade pneumatic vacuum oil drainer, powered by compressed air, integrating 20-gallon large capacity, 83-inch ultra-high adaptability, and spark-free safety design) |
| Product Type | 20-gallon pneumatic vacuum heavy-duty mobile waste oil drainer with compressed air-driven vacuum oil suction |
| Basic Parameters |
|
- Oil Storage & Suction System: 20-gallon (75.7L) capacity, 1.5L/minute oil suction rate, 16-inch large-caliber funnel
- Height Adjustment System: 52-83 inch adjustment range, segment-type buckle locking
- Mobility & Safety System: 4 heavy-duty ball-bearing casters, spark-free design, 5-meter pneumatic hose
- Durability Configuration: 1.2mm thickened cold-rolled steel plate, copper valve body + nylon seals
| Test Item | Test Condition | Test Result |
|---|---|---|
| Oil Suction Efficiency | Suck 2L of 10W-40 engine oil under 0.6MPa | 2L in 80 seconds, no residue |
| Height Adaptation Stability | 83 inches height, suck 3L waste oil | No pipe shaking, 100% collection rate |
| Caster Load-Bearing | Move 100m with 100kg load on 10° incline | No deformation, pushing resistance ≤60N |
| Explosion-Proof Safety | 2 hours continuous operation | No sparks, meets GB 3836.1-2021 standard |
- Powered by 0.4-0.8MPa compressed air with 1.5L/minute oil suction rate
- Fully mechanical pneumatic structure with no electrical components
- Pressure safety valve prevents tank deformation
- Oil-resistant nitrile rubber sealing rings with ≤0.1L/min leakage rate
- 75.7L storage capacity for 4 family cars or 2 light trucks
- Transparent liquid level window for real-time monitoring
- 40.6cm funnel opening prevents spillage
- 5mm aperture filter screen for debris removal
- Compatible with family cars (52") to large SUVs (83")
- Stable segment-type buckle adjustment system
- 3-inch heavy-duty ball-bearing casters with ≥35kg load capacity
- Oil-resistant rubber wheels with anti-slip coefficient ≥0.95
- Complete oil change for 8 cars (40L) in 2.5 hours
- No sparks, meets explosion-proof requirements
- 16-inch funnel prevents spillage
- Handles 30L transmission oil per truck
- Compact 48*48cm base for narrow workspaces
- 0.8MPa pressure for high-viscosity oils
- Check compressed air pressure (0.4-0.8MPa required)
- Clear pipe and filter screen clogging
- Check liquid level protection status
- Tighten caster connection screws
- Polish brake pad contact surfaces
- Use rubber pads for auxiliary fixation
