Quality YD44-015 65L Multi-Func Oil Drainer: 0.6-1.6L/min, 1.85m Height, for Garages/Car Lines factory
<
Quality YD44-015 65L Multi-Func Oil Drainer: 0.6-1.6L/min, 1.85m Height, for Garages/Car Lines factory
>

YD44-015 65L Multi-Func Oil Drainer: 0.6-1.6L/min, 1.85m Height, for Garages/Car Lines

Brand Name: YEEDA
Model Number: YD44-015
Place of Origin: Zhejiang,China
Certification: CE
Minimum Order Quantity: 50pcs
Supply Ability: 500PCS/MONTH
Delivery Time: 30-45DAYS
Payment Terms: T/T
Standard Packaging: Carton Box or Crate

Product Details


Dimension: Main Equipment 79×45.5×53cm, G.W./N.W.: Main Equipment 25kg/23kg,
Medium: Waste Vehicle Oil MOQ: 99 Units
Material: 1.2mm Thickened Cold-rolled Steel Plate With Double-layer Anti-rust Treatment Safety: Fully Pneumatic Drive With No Electrical Components
Highlight

65L oil drainer for garages

,

multi-function oil drainer 1.6L/min

,

motorcycle lift bench oil drainer

Product Description

YD44-015 65L Multi-Func Oil Drainer: 0.6-1.6L/min, 1.85m Height, for Garages/Car Lines
Product Specifications
Core Parameter Summary
Parameter Category Specific Specification
Model YD44-05 (Industrial-grade multi-functional pneumatic vacuum oil drainer integrating oil suction, collection, and filling functions)
Product Type 65L multi-functional pneumatic vacuum mobile oil drainer
Basic Parameters
  • Dimension: Main equipment 79*45.5*53cm, accessories 47.5*38.5*58.5cm
  • G.W./N.W.: Main equipment 25kg/23kg, accessories 11kg/8kg
  • Medium: Waste vehicle oil (engine oil, transmission oil, hydraulic oil) and new oil products
  • MOQ: 99 units (20-foot container loading quantity)
Core Functional Parameters
  • Oil Suction System: 0.6-1.6L/min speed, 1.4m pipe length, 40-50L total capacity
  • Oil Storage & Metering: 65L main tank, 9L measuring cup (error ≤50ml)
  • Oil Filling System: 0.5bar discharging pressure, 1.9m pipe length
  • Mobility: Adjustable oil tray, 480*500mm footprint, 7-8bar working pressure
Durability & Safety
  • Material: 1.2mm thickened cold-rolled steel plate with double-layer anti-rust treatment
  • Safety: Fully pneumatic drive with no electrical components
  • Service Life: Pneumatic components ≥8000 hours, oil pipes ≥3 years
Performance Test Results
Test Item Test Condition Test Result
Oil Suction Efficiency 5L of 10W-40 engine oil at 7bar 3.1 minutes, 1.6L/min flow rate, no residue
Oil Filling Accuracy 5L new engine oil measurement 4.96L actual filling, 40ml error
Mobility Stability 300m movement with 65L load No shaking, ≤60N pushing resistance
Oil Level Display Step-by-step oil injection ≤100ml error, accurate display
Key Features
Three-in-One Function Integration
  • Low-Pressure Pneumatic Oil Suction: 0.6-1.6L/min speed, 1.4m reach pipe, spark-free operation
  • Large-Capacity Storage: 65L main tank + 9L visual measuring cup for precise metering
  • Flexible Oil Filling: Multi-size nozzles, 0.5bar low-pressure filling, 1.9m discharge pipe
Multi-Vehicle Adaptation
  • Adjustable oil tray fits all vehicle heights from sports cars to light trucks
  • Dual collection methods (gravity + negative pressure) for different oil discharge needs
  • Movable design with 1.2m turning radius for flexible workshop navigation
Durable Construction
  • 1.2mm thickened steel tank with double-layer anti-rust treatment
  • Oil-resistant rubber pipes and brass pneumatic components
  • Fully pneumatic design meets explosion-proof requirements
Application Scenarios
Auto Repair Shop Batch Oil Changes
  • Complete 6 car oil changes in 3 hours (5L suction + 4.5L filling per car)
  • No equipment switching needed between suction and filling operations
  • Precise measuring eliminates over/under-filling issues
Light Truck Maintenance in Car Beauty Centers
  • Handle 30L transmission oil changes for high-chassis vehicles
  • Compact 480*500mm footprint fits 2.5*3m workstations
  • Integrated tool tray holds maintenance tools for convenience
Automobile Production Line Oil Filling
  • Fill 5 new cars with 5L engine oil in 40 minutes
  • Pneumatic operation meets strict production line safety requirements
  • Precision metering ensures consistent oil volumes
Frequently Asked Questions
Q1: The oil suction speed slows down or can't handle high-viscosity gear oil?
  • Check compressed air pressure (adjust to 7-8bar)
  • Clean oil suction pipe and nozzle or switch to larger nozzle
  • Use gravity collection method if suction remains difficult
Q2: Oil splashes during filling or measuring cup inaccuracy?
  • Reduce filling pressure to 0.3-0.4bar
  • Calibrate measuring cup with 5L water test
  • Ensure proper nozzle fit for vehicle oil port
Q3: Casters get stuck or have high resistance?
  • Clean debris from wheel axle and grooves
  • Apply industrial lubricating oil to wheel axle
  • Replace worn casters if necessary
Q4: Can it handle antifreeze or brake fluid?
  • Not recommended due to material compatibility risks
  • If temporary use required, conduct small-dose test first
  • Thoroughly clean equipment after use

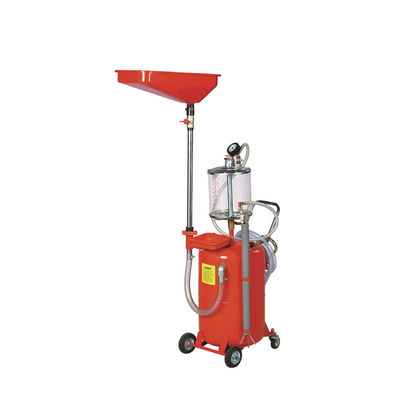

YD44-05 65L Multi-Functional Pneumatic Vacuum Oil Drainer in operation

Product Highlights

YD44-015 65L Multi-Func Oil Drainer: 0.6-1.6L/min, 1.85m Height, for Garages/Car Lines Product Specifications Core Parameter Summary Parameter Category Specific Specification Model YD44-05 (Industrial-grade multi-functional pneumatic vacuum oil drainer integrating oil suction, collection, and ...
