YD46-001 10Ton Oil Filter Crusher: 95% Oil Extraction, Air-Operated, for Shops/Yards

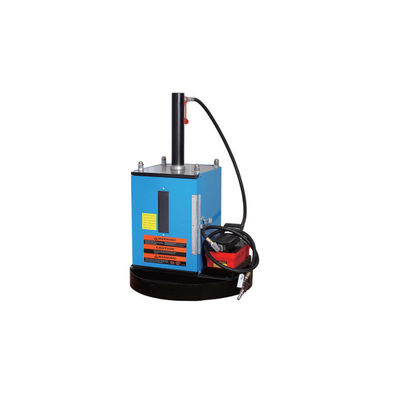

Large Image : YD46-001 10Ton Oil Filter Crusher: 95% Oil Extraction, Air-Operated, for Shops/Yards

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD46-001

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Crushing Capacity:	Removes Up To 95% Of Used Oil From Filters;	Operation Type:	100% Air-operated
Pressure:	10 Ton	Stroke::	300mm
Diameter:	240mm	Weight:	Net Weight 64kg / Gross Weight 69kg
Highlight:	10Ton oil filter crusher air-operated , oil filter crusher 95% oil extraction , oil filter crusher for shops yards

YD46-001 10Ton Oil Filter Crusher: 95% Oil Extraction, Air-Operated, for Shops/Yards

Product Specifications

Parameter Category	Specific Specification
Model	YD46-001 (Industrial-grade 10-ton oil filter crusher, 100% air-operated)
Product Type	10-ton hydraulic air-operated oil filter crusher
Basic Parameters	Crushing Capacity: Removes up to 95% of used oil from filters; compacts filters/cans to 10% of original size Operation Type: 100% air-operated (no electrical power required) Pressure: 10 Ton (high compaction force for tough filters) Stroke: 300mm (accommodates most standard oil filter sizes) Diameter: 240mm (fits filters/cans with diameter ≤240mm) Weight: Net Weight 64kg / Gross Weight 69kg Safety Features: Filter hatch air line cut-off; oil drain tray

Performance Test Results

Test Item	Test Condition	Test Result
Oil Extraction Efficiency	Crush a used oil filter (containing 250ml residual oil)	Extracts 237.5ml oil (95% extraction rate)
Compaction Effect	Crush a standard oil filter (original volume 1.2L)	Compacts to 0.12L (10% of original size)
Safety Function	Attempt to operate with the filter hatch open	Air line cuts off immediately; crusher does not start

Key Features

10-Ton High Pressure: Maximize Volume Reduction

Compacts used oil filters or small oil cans to just 10% of their original size
240mm diameter and 300mm stroke accommodate most standard oil filters

95% Oil Extraction: Recover Waste Oil & Reduce Pollution

Integrated oil drain tray collects up to 95% of residual oil
Prevents oil leakage and allows recovery of usable waste oil

100% Air-Operated & Safety-Focused

Safe for use in environments with flammable oil vapors
Filter hatch air line cut-off prevents operation when hatch is open

Application Scenarios

Automotive Repair Shop (Daily Filter Handling)

Processes 30 used oil filters daily in just 7.5 minutes
Saves storage space and eliminates oil stains

Fleet Maintenance Yard (Bulk Filter Crushing)

Processes 200 filters weekly in 3.5 hours
Reduces disposal costs and improves safety

Frequently Asked Questions

Q: The crusher fails to reach 10-ton pressure during operation. How to troubleshoot?

A: Check air compressor pressure (80-120PSI), inspect air lines for cracks, and examine hydraulic seals for wear or damage.

Q: Can the crusher handle large truck oil filters (diameter >240mm)?

A: No. The crusher is designed for filters with diameter ≤240mm and height ≤300mm.
