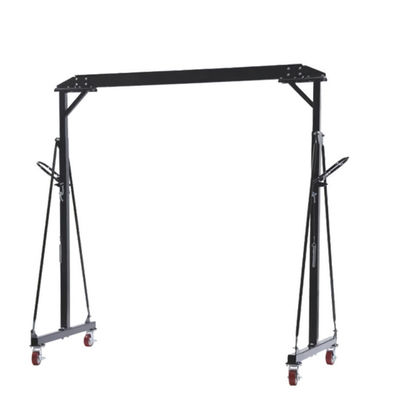

YD48-001 1Ton Adjustable Gantry Crane: 2.4-3.6m Ht, Wheels, for Shops/Warehouses/Sites

Large Image : YD48-001 1Ton Adjustable Gantry Crane: 2.4-3.6m Ht, Wheels, for Shops/Warehouses/Sites

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD48-001

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Height: Min.:	2395mm / Max. 3595mm	Post Width:	3595mm
Beam Size:	120×74×2200mm	Construction:	All-steel
Gear Number:	12	Casters:	4×5-inch Swivel Casters
Highlight:	1Ton adjustable gantry crane , gantry crane with wheels , warehouse gantry crane 3.6m

YD48-001 1Ton Adjustable Gantry Crane: 2.4-3.6m Ht, Wheels, for Shops/Warehouses/Sites

Product Specifications

Core Parameter Summary

Parameter Category	Specific Specification
Model	YD48-001 (Industrial-grade 1-ton adjustable gantry crane, all-steel construction)
Product Type	1-ton adjustable portable gantry crane with all-steel durability, height/width adjustability, and easy mobility
Basic Parameters	Lifting Capacity: 1 Ton (safe working load) Adjustable Dimensions: Height: Min. 2395mm / Max. 3595mm (adjustable in 100mm increments) Post Width: 3595mm (fixed post spacing) Beam Size: 120742200mm (high-strength beam) Structural Details: Construction: All-steel (anti-rust, impact-resistant) Gear Number: 12 (precise height adjustment) Casters: 4*5-inch swivel casters (2 with locking function)

Performance Test Results

Test Item	Test Condition	Test Result
Lifting Stability	Lift a 1-ton metal workpiece to max height (3595mm) and hold for 30 minutes	Beam no bending; auto-lock function keeps height stable; no load slippage
Mobility (Unloaded)	Move the disassembled crane (144kg) via casters on concrete floor for 50 meters	Casters roll smoothly; 2 people push with minimal effort; no wheel jamming
Height Adjustment	Adjust height from 2395mm to 3595mm (12 gear positions) with 500kg load	Adjustment is smooth; each 100mm increment locks securely; no sudden height drop

Product Features

All-Steel Construction: Durable & Safe for Heavy Lifting

Industrial-Grade Strength: High-quality steel construction with 120*74*2200mm reinforced beam withstands 1-ton rated loads without deformation
Built-In Safety: Auto-lock function secures height during adjustment; 2 locking casters prevent movement during loading/unloading

Flexible Adjustability: Adapt to Diverse Workspaces

Wide Height Range: Adjustable from 2395mm to 3595mm (100mm increments) fits various ceiling heights
Optimized Beam Design: 2200mm-long beam provides ample lifting space with stable load distribution

Portable & Easy to Use

Quick Assembly/Disassembly: 4 people can set up in 30 minutes; disassembled size 227*44*34cm for transport
Smooth Mobility: 5-inch swivel casters with rubber wheels enable easy repositioning when unloaded

Application Scenarios

Workshop Machinery Maintenance

Lift and move 800kg motors in 3.2m ceiling workshops. Adjustable height matches workspace; mobility reduces manual labor; all-steel build ensures safe lifting.

Warehouse Material Handling

Move 500kg metal pallets to 2.8m-high shelves. Narrow post width fits 3.5m aisles; adjustable height matches shelf requirements.

Construction Site Equipment Transport

Move 900kg concrete mixers from trucks to job sites. Mobile design adapts to uneven ground; max height fits truck loading requirements.

Frequently Asked Questions

Can the crane be used to lift loads heavier than 1 ton?

No. The crane's rated lifting capacity is strictly 1 ton - overloading will cause structural damage and pose severe safety risks. Always check the load weight before lifting.

The casters get stuck on uneven ground. How to fix this?

Solutions: 1) Clear debris from caster wheels 2) Ensure relatively flat ground (slope ≤5°) 3) Apply industrial lubricating oil to caster axles to reduce friction.

How to maintain the all-steel structure to prevent rust?

1) Wipe steel surface after each use 2) Apply anti-rust paint to any coating chips 3) Store disassembled crane in dry, ventilated warehouse when not in use.
