Motorcycle Fuel Injector Tester & Cleaner – For Moto Repair, Multifunctional, Precise

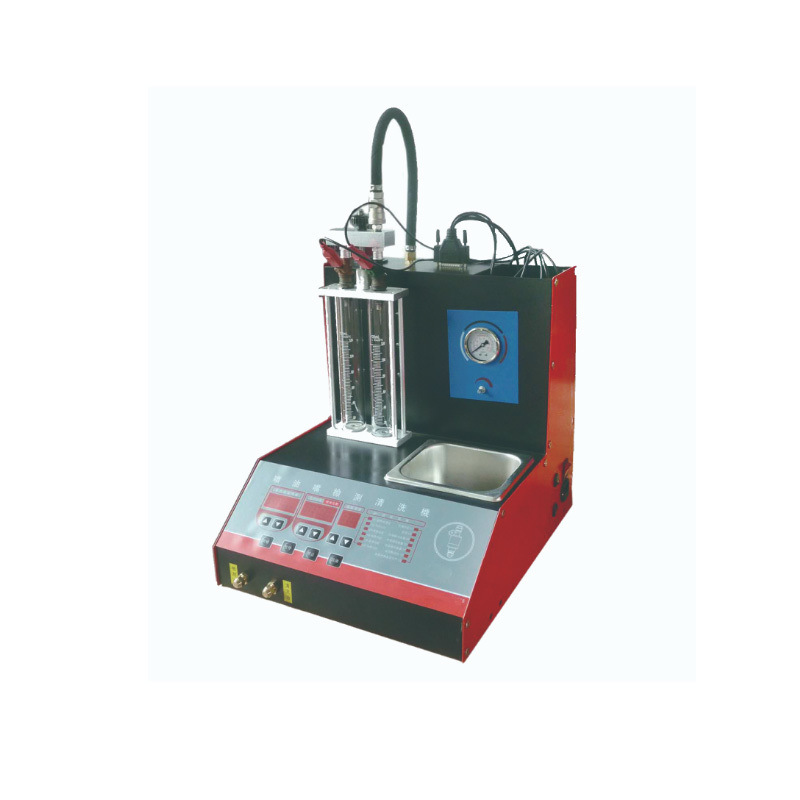

Large Image : Motorcycle Fuel Injector Tester & Cleaner – For Moto Repair, Multifunctional, Precise

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD84-006

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Voltage:	AC220V/110V 50Hz	Tank Capacity:	2L
Test Tube Capacity:	125CC	Ultrasonic Frequency:	28KHZ
Rotation Speed:	0~15000r/min (step: 100r/min)	Time Counting Range:	0~9900 Sec (step: 50 Sec, Adjustable)
Oil Pump Pressure:	1.8kg/cm²---10kg/cm²; Fuel Flow: 4.5 L/min
Highlight:	motorcycle fuel injector tester , multifunctional fuel injector cleaner , precise moto repair tool

Motorcycle Fuel Injector Tester & Cleaner – For Moto Repair, Multifunctional, Precise

Product Specifications

Category	Details
Model No.	YD84-006
Voltage	AC220V/110V 50Hz
Operation Temperature	-10°C ~40°C
Tank Capacity	2L
Test Tube Capacity	125CC
Ultrasonic Frequency	28KHZ
Rotation Speed	0~15000r/min (step: 100r/min)
Time Counting Range	0~9900 sec (step: 50 sec, adjustable)
Oil Pump Pressure	1.8kg/cm²---10kg/cm²; Fuel Flow: 4.5 L/min
Dimension (Carton)	554552cm (0.129cbm)
Weight	25kgs

Product Features

Comprehensive Testing Modes: Supports idling test (1500r/min), medium speed test (9000r/min), high speed test (15000r/min), accelerating test, shifting speed test, leakage testing, idling spray value test, and medium and high speed spray value test.
Effective Cleaning: Features ultrasonic cleaning with a built-in 2L ultrasonic cleaning tank. It also enables reverse flush and free dismantle cleaning for thorough injector cleaning.
User-Friendly Design: Equipped with an LED display facility for clear operation and monitoring. It has an easy operating system with an adjustable heating function and automatic oil drain for convenience.
Precise Performance Testing: Can test the shortest cycle of fuel injector on and off, as well as leakage, block, pulverization of fuel injectors, spray angles, spraying amount, and spraying uniformity.

Application Scenarios

Motorcycle Repair Shops: Ideal for repair shops to test and clean motorcycle fuel injectors, ensuring optimal engine performance and fuel efficiency.
Motorcycle Service Centers: Perfect for service centers that provide professional motorcycle maintenance services, helping to diagnose and resolve fuel injector-related issues.
Motorcycle Workshops: Well-suited for workshops focused on motorcycle repair and tuning, as it supports thorough fuel injector testing and cleaning.
Motorcycle Enthusiasts' Garages: Can be used by motorcycle enthusiasts who prefer to maintain their bikes themselves, allowing for precise fuel injector testing and cleaning.

Frequently Asked Questions

Q: Can this system be used for other vehicles besides motorcycles?

A: This system is specifically designed for motorcycle fuel injectors. For other vehicles, dedicated testers and cleaners for those vehicle types are recommended.

Q: How to adjust the heating function?

A: The heating function can be adjusted via the control panel. Follow the instructions in the user manual to set the desired temperature for optimal cleaning.

Q: What is the ultrasonic frequency and how effective is it?

A: The ultrasonic frequency is 28KHZ, which provides effective cleaning for motorcycle fuel injectors by removing deposits and contaminants.

Q: How often should motorcycle fuel injectors be tested and cleaned?

A: It is recommended to test and clean motorcycle fuel injectors every 10,000 to 15,000 miles or as per the motorcycle manufacturer's guidelines, depending on usage and fuel quality.
