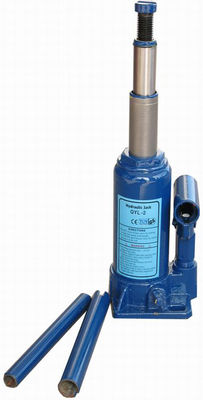

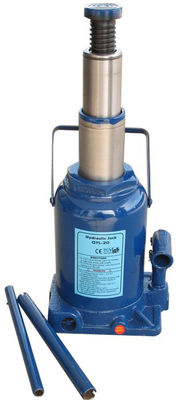

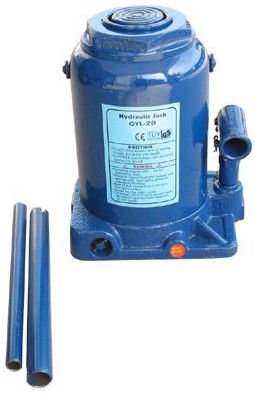

2 Stage High Lift 2T To 30T Double Ram Hydraulic Bottle Jack
Product Details:
Place of Origin: | Zhejiang , China |
Brand Name: | YEEDA |
Certification: | CE |
Model Number: | YD18-001----YD18-009 |
Payment & Shipping Terms:
Minimum Order Quantity: | 50PCS |
---|---|
Packaging Details: | Carton Box |
Delivery Time: | 45 Days |
Payment Terms: | T/T |
Supply Ability: | 3000PCS/MONTH |
Detail Information |
|||
Model NO.: | YD18-001----YD18-009 | Name: | Hydraulic High Lift Double Ram Bottle Jack |
---|---|---|---|
Type: | Hydraulic | Color: | Normal In Red And Blue, And Can Be Customized |
Surface Treatment: | Powder Coating | MOQ: | 50PCS |
Delivery Time: | 10 Days After Received Deposit | Use: | Workshop,industrial |
Certification: | CE | Payment: | 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight |
Highlight: | 2 Stage Double Ram Hydraulic Bottle Jack,30T Double Ram Hydraulic Bottle Jack,2T High Lift Double Ram Bottle Jack |
Product Description
Manual Hydraulic High Lift Double Ram Bottle Jack use in mechanical work
This Hydraulic High Lift Double Ram Bottle Jack is designed for lifting heavy-duty machinery, industrial construction equipment and other objects that need a low profile start and an extended reach.
Features:
- 2T to 30T double ram Bottle Jack ,Extension screw allows low pickup height adjustment and maximum lift height
- Dual-stage hydraulic cylinder lifts large loads on a smaller footprint
- Constructed of high-grade steel and built to exacting standards for quality and durability
- Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
- Paint is oil-, grease- and dirt-resistant for easy cleanup
- High-quality, large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
Technical Specification:
Model | Capacity | Min.H (mm) | Lifting H (mm) | Adjust.H (mm) | N.W. (kg) |
YD18-001 | 2 | 165 | 98+92 | 55 | 2.8 |
YD18-002 | 4 | 150 | 80+80 | 35 | 4 |
YD18-003 | 6 | 154 | 80+80 | 40 | 5 |
YD18-004 | 8 | 156 | 80+80 | 40 | 6 |
YD18-005 | 10 | 225 | 140+145 | 50 | 8.5 |
YD18-006 | 12 | 230 | 140+145 | 50 | 10 |
YD18-007 | 16 | 232 | 140+145 | 50 | 12 |
YD18-008 | 20 | 235 | 140+145 | 50 | 15.5 |
YD18-009 | 30 | 250 | 140+140 | / | 22 |
