1.5Ton Aluminum Hydraulic Floor Jack

Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack

Large Image : Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack

Product Details:

Place of Origin:	Zhejiang , China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD21-006

Payment & Shipping Terms:

Minimum Order Quantity:	20PCS
Packaging Details:	Carton Box
Delivery Time:	45 Days
Payment Terms:	T/T
Supply Ability:	1000PCS/MONTH

Contact Now

Detailed Product Description

Model NO.:	YD21-006	Name:	Clutch Jack
Color:	Normal In Red And Blue, And Can Be Customized	Surface Treatment:	Powder Coating
MOQ:	20PCS	Delivery Time:	30 Days After Received Deposit
Use:	Transport Clutches And Flywheels	Certification:	CE
Payment:	1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight
Highlight:	24inch Heavy Duty Clutch Jack , 300LBS Heavy Duty Clutch Jack , 300LBS Truck Clutch Jack

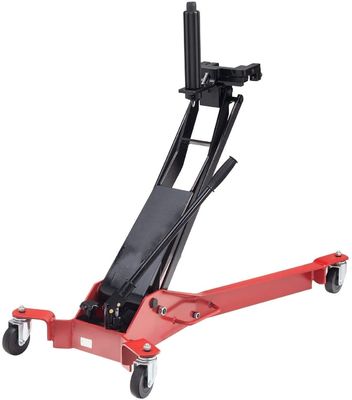

YD21-006 /300 LBS Heavy Duty Clutch Jack -Transport clutches and flywheels

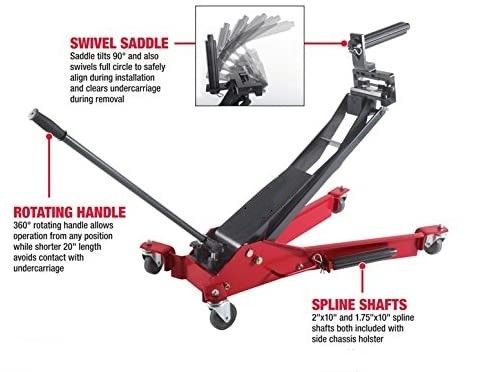

300-pound heavy-heavy duty clutch jack comes standard with both two spline shafts, both included with a side chassis holster. Its swivel saddle tilts 90 degrees and also swivels full-circle to safely align during installation and clear undercarriage during removal. A wide, 24-inch width ensures stability during use, and a 360-degree rotating handle allows operation from any position, while short 20-inch handle length avoids contact with undercarriage.

Features:

Clutch/flywheel removal and installation becomes a one man job.
Tilting saddle enables clutch to be positioned in either horizontal position for clearing underneath truck or vertical position for installation and removal.
Adjustment bolt on saddle aligns clutch and flywheel.
Spline shaft rotates 360 degrees, turns left and right for clutch and engine alignment. 2” and 1-3/4” spline shafts included.
Conveniently located release valve and 360 degree rotating pump handle allow jack to be operated in any work position.

Technical Specification:

Model No.		YD21-006
Weight Capacity		300LB (136KGS)

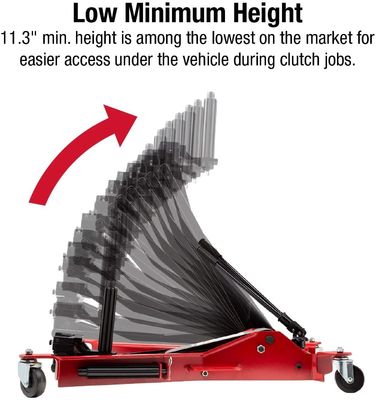

Min Height		11.34"(288mm)
Max Height		38.58"(980mm)
G.W.		136lb(62kg)
N.W.		132lb(60kg)
Package size		42"x28"x8.6"(1070x710x220mm)

Tilting Saddle 24inch 300LBS Heavy Duty Clutch Jack 0
