| Model NO.: | YD21-007---YD21-010 | Name: | Economic Toe Jack |
|---|---|---|---|
| Color: | Normal In Red And Blue, And Can Be Customized | Surface Treatment: | Powder Coating |
| MOQ: | 20PCS | Delivery Time: | 30 Days After Received Deposit |
| Use: | Lift Heavy Plant Or Machinery | Certification: | CE |
| Payment: | 1) T/T, 30% Deposit, 70% Against B/L Copy. 2)L/C At Sight | ||
| Highlight: | Toe Hydraulic Lifting Jack,5Ton Hydraulic Lifting Jack,Heavy Duty 10 Ton Hydraulic Toe Jack |
||

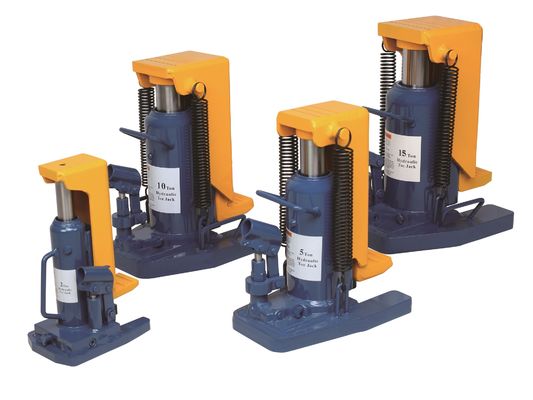

YD21-007/ Economic Toe Jack
Designed for lifting loads with very low minimum clearances (foot) or high clearances (head)
Ideal for house moving, machinery installation and application at shipyard, bridge building or plant construction sites
Great companion tool for machinery skates
Convenient swivel socket for easy operation in any direction on 5 and 10 ton models
Safety valve for overload protection
Features :
Technical Specification:
| Model No. | YD21-007 | YD21-008 | YD21-009 | YD21-010 | ||||||||||
| Toe Capacity | 4,400LB (2,000KGS) | 11,000LB (5,000KGS) | 22,000LB (10,000KGS) | 33,000LB (15,000KGS) | ||||||||||
| Head Capacity | 6,600LB (3,000KGS) | 13,200LB (6,000KGS) | 30,800LB (14,000KGS) | 44,000LB (20,000KGS) | ||||||||||
| Min./Max Toe Height | 0.7"(17mm) / 5.2"(132mm) | 1.06"(27mm) / 5.8"(147mm) | 1.22"(31mm) / 6.9"(176mm) | 1.22"(31mm) / 7.7"(196mm) | ||||||||||
| Min / Max Head Height | 9.2"(235mm)/13.8"(350mm | 11.5"(293mm)/16.25"(413mm) | 12.8"(327mm)/18.6"(472mm) | 13.58"(345mm)/20"(510mm) | ||||||||||
| Toe Size | 2"x2"(50x50mm) | 2.95"x2.2"(75x57mm) | 3.3"x2.36"(84x60mm) | 3.9"x2.75"(100x70mm) | ||||||||||
| Base Size | 7"x5"(178x125mm) | 10.6"x7.2"(270x183mm) | 11.3"x9.4"(287x240mm) | 11.8"x9.8"(300x250mm) | ||||||||||
| N.W./G.W. | 18.7/23lb(8.5/10.5kg) | 49.5/52.8lb(22.5/24kg) | 82.5/85.8lb(37.5/39kg) | 106.7/110lb(48.5/50kg) | ||||||||||
| Package Size | 9"x7"x9.8"(230x170x250mm) | 12.6"x9"x12.6"(320x230x320mm) | 13.4"x11.4"x14.2"(340x290x360mm) | 14.7"x11.8"x16"(374x300x405mm) |
