Multi Type Heavy Duty Rotational Hydraulic Toe Lift Jack
Product Details:
| Place of Origin: | Zhejiang , China |
| Brand Name: | YEEDA |
| Model Number: | YD21-011---YD21-013 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20PCS |
|---|---|
| Packaging Details: | Carton Box or Plywood Crate |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/MONTH |
|
Detail Information |
|||
| Certification: | CE | Delivery Time: | 30 Days After Received Deposit |
|---|---|---|---|
| Model NO.: | YD21-011---YD21-013 | Name: | Industrial Toe Jack |
| Color: | Normal In Red And Blue, And Can Be Customized | Surface Treatment: | Powder Coating |
| MOQ: | 20PCS | Use: | Lift Heavy Plant Or Machinery |
| High Light: | Multi Type Hydraulic Toe Lift Jack,Rotational Hydraulic Toe Lift Jack,Heavy Duty Hydraulic Lifting Jack |
||
Product Description

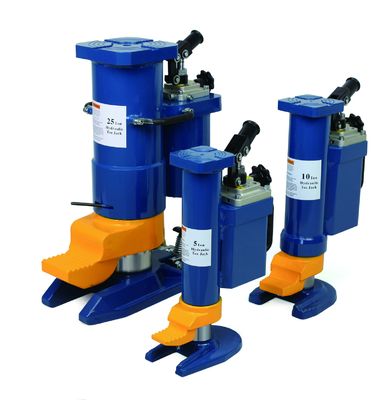

YD21-011/ Multi-Type Heavy Duty Hydraulic Rotational Industrial Toe Jack Lifting Gear
- A compact, well constructed jack that can be used in any position, with the housing revolving 360 degrees
- The lowering speed can be accurately adjusted and the jack is protected against overloading
Features :
- Stable reversed ram structure
- Suitable for lifting railway, machine, or other heavy appliance
- Housing revolves 360 degrees
- Internal device for controlled descend rate
- Safety valve for protecting from overload
- Removable pump lever
- Meet ANSI/ASME PALD 2009 standards
Technical Specification:
| Model No. | YD21-012 | YD21-013 | YD21-014 | ||||||||
| Toe Capacity | 11,000LB (5,000KGS) | 22,000LB (10,000KGS) | 33,000LB (15,000KGS) | ||||||||
| Head Capacity | 13,200LB (6,000KGS) | 30,800LB (14,000KGS) | 44,000LB (20,000KGS) | ||||||||
| Min./Max Toe Height | 1.06"(27mm) / 5.8"(147mm) | 1.22"(31mm) / 6.9"(176mm) | 1.22"(31mm) / 7.7"(196mm) | ||||||||
| Min / Max Head Height | 11.5"(293mm)/16.25"(413mm) | 12.8"(327mm)/18.6"(472mm) | 13.58"(345mm)/20"(510mm) | ||||||||
| Toe Size | 2.95"x2.2"(75x57mm) | 3.3"x2.36"(84x60mm) | 3.9"x2.75"(100x70mm) | ||||||||
| Base Size | 10.6"x7.2"(270x183mm) | 11.3"x9.4"(287x240mm) | 11.8"x9.8"(300x250mm) | ||||||||
| N.W./G.W. | 49.5/52.8lb(22.5/24kg) | 82.5/85.8lb(37.5/39kg) | 106.7/110lb(48.5/50kg) | ||||||||
| Package Size | 12.6"x9"x12.6"(320x230x320mm) | 13.4"x11.4"x14.2"(340x290x360mm) | 14.7"x11.8"x16"(374x300x405mm) |
