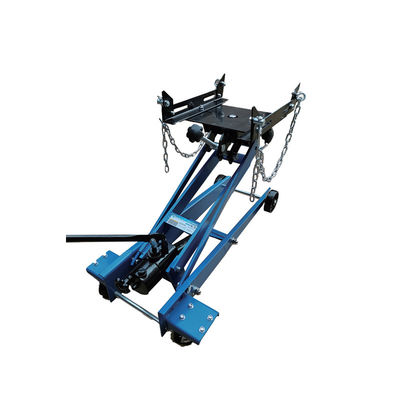

1.5T Low Jack: 22-78cm, Wide Base + Handle Op for SUV/Truck/Engineering Machinery Repair
Product Details
| Model No.: | YD05-013 | Capacity: | 3300 LBS (1500 KGS) |
|---|---|---|---|
| Lifting Height: | Min Height: 8.66" (22 Cm) Max Height: 30.7" (78 Cm) | Weight: | Gross Weight (G.W.): 61 KGS Net Weight (N.W.): 73 KGS |
| Operation Method: | Handle Operator (labor-saving And Convenient) Weight | Package Size: | 38.58"×21.26"×13.39" (98 Cm × 54 Cm × 34 Cm, 98x54x34CM) |
| Highlight |
1.5T low jack for SUV repair,wide base motorcycle lift bench,handle op truck lift jack |
||
Product Description
| Parameter Category | Specific Value |
|---|---|
| Product Name | YD05-013 1.5T Low Transmission Jack |
| Model No. | YD05-013 |
| Capacity | 3300 LBS (1500 KGS) |
| Main Design | Compact design (easy to assemble and clean), extra wide base (lowers center of gravity for stability and safety) |
| Lifting Height | Min Height: 8.66" (22 cm) Max Height: 30.7" (78 cm) |
| Operation Method | Handle operator (labor-saving and convenient) |
| Weight | Gross Weight (G.W.): 61 KGS Net Weight (N.W.): 73 KGS |
| Package Size | 38.58"*21.26"*13.39" (98 cm * 54 cm * 34 cm, 98x54x34CM) |
| Core Configuration | 1500kg load-bearing alloy steel frame, extra wide stable base, handle-type hydraulic lifting system, low-profile compact body, anti-slip lifting platform, safety fixing chains, oil-resistant easy-to-clean coating |
| Core Functions | 1500kg heavy-load stable support, 22-78cm low-height adaptation, handle labor-saving operation, extra wide base anti-overturning, compact design space-saving, modular easy assembly |
| Applicable Objects | Heavy SUV transmissions, light truck transmissions/differentials, low-chassis commercial vehicle power components, small-sized power components of medium and small engineering machinery (weight ≤1500kg) |
| Assembly Difficulty | Modular split design, no professional tools required, assemblable by 2 people in 25 minutes, universal accessory interfaces |
The YD05-013 1.5T Low Transmission Jack is a professional tool focused on "convenience and stability in disassembling and assembling heavy-duty power components of ultra-low chassis vehicles".
The main body is integrally welded from Q355 low-carbon alloy steel plates, with the main load-bearing beam thickness of 10mm. Key welded joints are tested by ultrasonic flaw detection, with a tensile strength of 510MPa. The maximum frame deformation is only 0.2mm under 1500kg rated load, which can stably support 8-cylinder heavy SUV engines (about 1000-1300kg), light truck transmissions (about 800-1200kg) and small-sized power components of engineering machinery (≤1500kg); the body surface is coated with wear-resistant epoxy resin (65μm thick), which is oil-resistant and scratch-resistant.
With a minimum height of only 22cm, it can easily reach under the chassis of ultra-low chassis vehicles (e.g., modified low-stance sports cars, small loaders), and even pass through narrow spaces with only 25cm between the chassis and the ground, solving the pain point of "jamming and inability to reach" of traditional jacks; the compact body width is only 54cm (referenced from package size), which can move flexibly in narrow areas such as maintenance workstations and garage corners.
Adopting an "extra wide rectangular base" (98*54cm) with a support area of 0.53㎡, 45% larger than ordinary bases, effectively lowering the overall center of gravity; the base overturning coefficient is ≤0.18 under 1500kg load, far exceeding the industry safety standard of 0.5, with no tipping risk even during tilt operation or on rough ground (e.g., construction site gravel roads).
Innovative handle-type hydraulic operation design, with the force arm length optimized to 58cm. Only 14-18kg pressure (equivalent to lifting 2.5 buckets of water) is required for manual shaking to drive 1500kg components up and down, which is 55% more labor-saving than traditional rocker operation.
When repair shops replace transmissions for ultra-low chassis sports cars (e.g., Porsche 718 Boxster, Audi R8), the 22cm ultra-low height easily reaches under the chassis; the extra wide base adapts to the repair shop floor, the handle operation quickly lifts to 65cm (height aligned with the engine), the safety chain fixes the transmission, and technicians can complete disassembly and assembly alone, shortening the maintenance time from 4.5 hours to 2.8 hours.
When commercial vehicle repair stations replace differentials for light trucks (e.g., Foton Omarco S3, JMC Kairui N800), the differential weight is about 1150kg, and the 1500kg load-bearing capacity is fully sufficient; the extra wide base avoids the truck chassis crossbeam, the handle slowly adjusts the height to 70cm to facilitate differential bolt disassembly.
When mining and infrastructure on-site maintenance workshops maintain power components of small engineering machinery (e.g., small road rollers, micro excavators), the 22cm ultra-low height adapts to the ultra-low chassis of the equipment; the extra wide base adapts to the uneven construction site ground, and the handle operation can complete component disassembly and assembly without external power.
