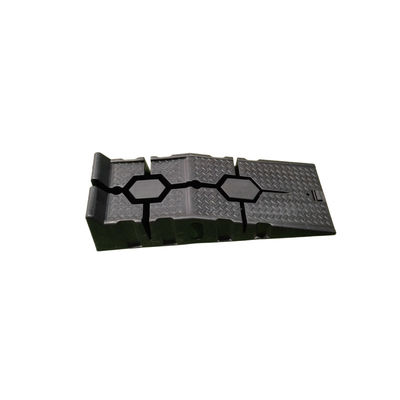

Heavy-Duty Plastic Ramps: 4400LB Load, 17° Incline for Home/Shop/Self-Driving Vehicle Care

Large Image : Heavy-Duty Plastic Ramps: 4400LB Load, 17° Incline for Home/Shop/Self-Driving Vehicle Care

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD10-005

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Name:	YD10-005 Heavy-Duty Plastic Car Ramps	Product Type:	Heavy-duty Vehicle Maintenance Ramps
Load Capacity (Pair):	4,400LB (2,000kg)	Weight Parameters:	Net Weight Per Ramp: 19LB (8.6kg) Gross Weight Per Ramp: 23LB (10.6kg)
Packaging Specification:	1 Piece Per Carton	Shipping Dimensions:	37"×11.8"×13.8" (950×300×350mm)
Highlight:	heavy-duty plastic ramps with 4400lb load , motorcycle lift bench with 17° incline , self-driving vehicle care ramps

Heavy-Duty Plastic Ramps: 4400LB Load, 17° Incline for Home/Shop/Self-Driving Vehicle Care

Product Specifications

Parameter Category	Specific Value
Product Name	YD10-005 Heavy-Duty Plastic Car Ramps
Model No.	YD10-005
Product Type	Heavy-duty vehicle maintenance ramps (suitable for trucks, SUVs, trailers, family cars)
Load Capacity (Pair)	4,400LB (2,000kg)
Weight Parameters	Net Weight per Ramp: 19LB (8.6kg) Gross Weight per Ramp: 23LB (10.6kg)

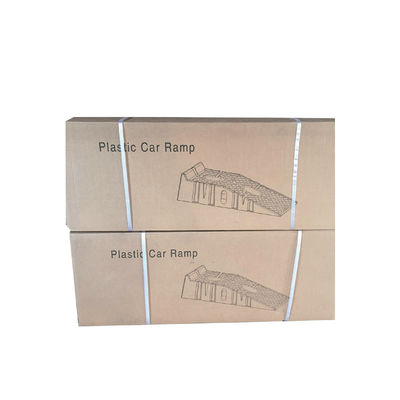

Packaging Specification	1 piece per carton
Shipping Dimensions	37"11.8"13.8" (950300350mm)

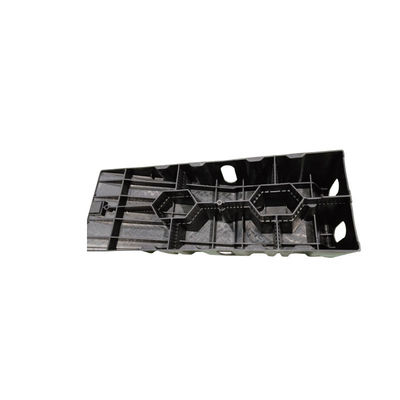

Core Design	17° incline angle, CoreTRAC non-skid base, rugged structural design
Main Material	Heavy-duty reinforced plastic (impact strength ≥20kJ/m², temperature resistance range: -30℃~85℃, waterproof grade IP65)
Applicable Vehicles	Family cars, SUVs, light trucks, trailers (tire width ≤265mm, curb weight ≤2,000kg)

Product Features

2-Ton Heavy-Duty Load-Bearing: Can bear 4,400LB (2,000kg) when used in pairs. Made with 5 layers of reinforced plastic with 350N*m torsional strength.
17° Incline Angle: Gentle design prevents chassis scraping on low-clearance vehicles (≥100mm chassis height).
CoreTRAC Non-Skid Base: Friction coefficient ≥1.5 with 600cm² contact area for stable operation on oily or wet surfaces.
Lightweight & Durable: Only 8.6kg per ramp with IP65 waterproof rating and -30℃~85℃ temperature resistance.

Application Scenarios

Home DIY Oil Change and Maintenance

Place ramps on garage floor for smooth vehicle access. No additional jack needed for oil filter replacement, reducing maintenance time from 60 to 30 minutes.

Light Vehicle Inspection in Small Auto Repair Shops

One pair can handle 15 light vehicle inspections daily, increasing efficiency by 50% compared to traditional jacks.

Emergency Maintenance for Outdoor Self-Driving

Waterproof material and non-skid base suitable for muddy roads, enabling emergency chassis checks without returning to urban areas.

Vehicle Storage Support in Home Garages

Use vertical space under ramps for toolboxes and car wash supplies, improving garage storage utilization.

Frequently Asked Questions

Q1: Can these ramps be used for medium-sized SUVs with a curb weight of 2.1 tons?

Not recommended. The 2,000kg limit should not be exceeded. For heavier vehicles, choose the YD10-006 model (3,000kg capacity).

Q2: How to save trunk space when carrying these ramps?

Stack ramps with non-skid surfaces facing each other and use elastic bands to secure. Place tool bags in the gap between stacked ramps.

Q3: How to restore non-skid texture when worn?

Lightly sand with 800-mesh sandpaper or apply rubber anti-skid agent. Replace ramps if texture depth is ≤2mm.

Q4: Are these ramps effective on icy/snowy ground?

Additional measures needed: place coarse sacks/sandpaper under ramps, sprinkle snow-melting salt, and avoid slopes >5°.
