4-50 Ton Hydraulic Tools ZG 1/4" Inlet For Auto / Engineering / Agriculture

Large Image : 4-50 Ton Hydraulic Tools ZG 1/4" Inlet For Auto / Engineering / Agriculture

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD14-008-013

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Product Type:	Hydraulic-driven Tools For Straightening, Disassembling, And Supporting Metal Parts	Core Configuration:	Built-in Hydraulic Oil Storage (360-1200ML), Single-acting Hydraulic Principle, ZG 1/4" Standard Interface
Structural Features:	High-strength Alloy Body With Anti-rust Treatment, Compact Size For Narrow Spaces	Packaging:	68×14×14cm Carton With Buffer Foam, MOQ 100 Units
Applications:	Auto Repair, Engineering, Agricultural Machinery, Heavy Machinery Maintenance
Highlight:	4-50Ton hydraulic tools , ZG 1/4 inch inlet hydraulic tools , hydraulic tools for auto engineering agriculture

4-50Ton Hydraulic Tools: ZG 1/4" Inlet for Auto/Engineering/Agriculture

Product Overview

The YD14-008~YD14-013 Hydraulic Tool Series provides a complete solution for straightening, disassembling, and supporting metal parts across various load requirements from 4-ton light-duty to 50-ton ultra-heavy-duty applications.

Key Specifications

Parameter	Description
Product Type	Hydraulic-driven tools for straightening, disassembling, and supporting metal parts
Core Configuration	Built-in hydraulic oil storage (360-1200ML), single-acting hydraulic principle, ZG 1/4" standard interface
Structural Features	High-strength alloy body with anti-rust treatment, compact size for narrow spaces
Packaging	68×14×14cm carton with buffer foam, MOQ 100 units
Applications	Auto repair, engineering, agricultural machinery, heavy machinery maintenance

Model Comparison

Model	Capacity	Oil Capacity	Weight	Material	Seal Performance

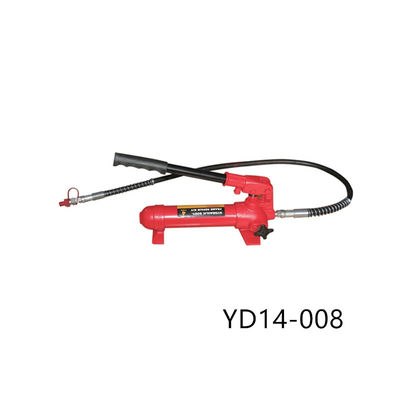

YD14-008	4 Ton	360ML	5.5kg/6.5kg	45# quenched steel ram, 20# seamless steel cylinder	NBR seals, 500 operations

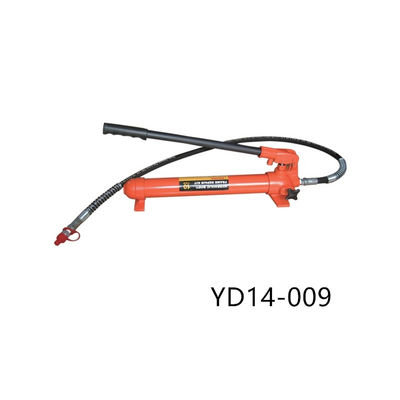

YD14-009	10 Ton	670ML	6.5kg/7.5kg	Alloy steel ram, 45# seamless steel cylinder	NBR seals, 800 operations

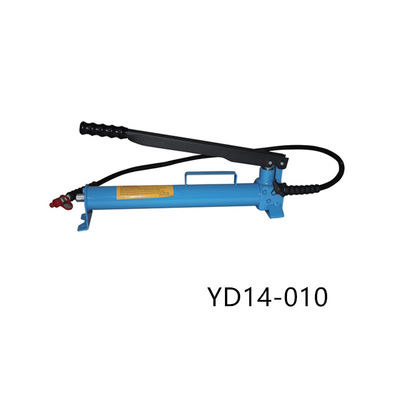

YD14-010	15 Ton	690ML	7.8kg/8.8kg	Alloy steel ram, 45# seamless steel cylinder	FKM seals, 1000 operations
YD14-011	20 Ton	790ML	8.0kg/9.0kg	Special alloy steel ram, 50# seamless steel cylinder	FKM seals, 1200 operations

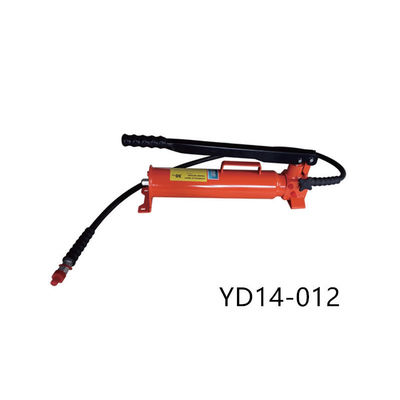

YD14-012	30 Ton	900ML	9.0kg/10kg	Chromium alloy steel ram, 50# seamless steel cylinder	FKM seals, 1500 operations

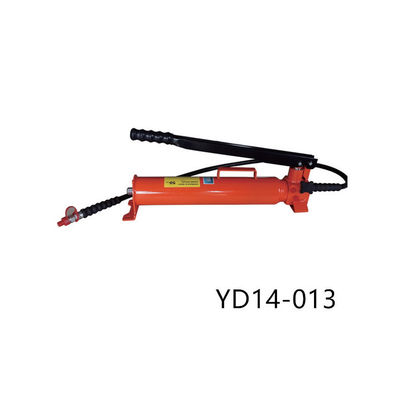

YD14-013	50 Ton	1200ML	11kg/12kg	Ultra-high-strength alloy steel ram, 60# seamless steel cylinder	FKM seals, 2000 operations

Key Features

6-Grade Load Capacity for Precise Coverage

Light-Duty (4-10 Ton): For family cars and small agricultural machinery
Medium-Duty (15-20 Ton): For heavy trucks and engineering equipment
Heavy-Duty (30-50 Ton): For large engineering vehicles and heavy machinery

Universal Interface + Compact Design

ZG 1/4" standard interface compatible with most hydraulic pumps
Compact 68×14×14cm size for operation in narrow spaces

High-Strength Materials + Durable Seals

Rams with tensile strength up to 1200MPa
FKM seals for up to 2000 operations without leakage

Application Scenarios

Light Truck Frame Straightening (YD14-009)

Select 10 Ton model for narrow chassis spaces

Connect to hydraulic pump and apply 10-ton load

Complete straightening in 20 minutes with ≤0.3mm error

Loader Connecting Arm Disassembly (YD14-011)

Use 20 Ton model for high-pressure operations

Align ram with pin and apply 20-ton force

Complete disassembly in 15 minutes with 100% success rate

Frequently Asked Questions

Q: Do all models need dedicated hydraulic pumps?

A: No - ordinary hydraulic pumps with matching pressure and ZG 1/4" interface can be used. Ensure pump capacity meets tool requirements.

Q: Is the 11kg YD14-013 safe for 50-ton loads?

A: Yes - ultra-high-strength materials and optimized structure ensure safety. Maximum recommended load is 45 tons (90% of rated capacity).

Q: What if the tool can't build pressure?

A: Check for interface leaks, insufficient oil, or seal issues. Clean connections, refill oil, or replace seals if necessary.

4-50 Ton Hydraulic Tools ZG 1/4" Inlet For Auto / Engineering / Agriculture 0

4-50 Ton Hydraulic Tools ZG 1/4" Inlet For Auto / Engineering / Agriculture 1

4-50 Ton Hydraulic Tools ZG 1/4" Inlet For Auto / Engineering / Agriculture 2

4-50 Ton Hydraulic Tools ZG 1/4" Inlet For Auto / Engineering / Agriculture 3

4-50 Ton Hydraulic Tools ZG 1/4" Inlet For Auto / Engineering / Agriculture 4

4-50 Ton Hydraulic Tools ZG 1/4" Inlet For Auto / Engineering / Agriculture 5
