YD17-001~010 2-50Ton Hydraulic Jacks: Overload Protection, 2-Piece Handle for Cars/Trucks/Engineering

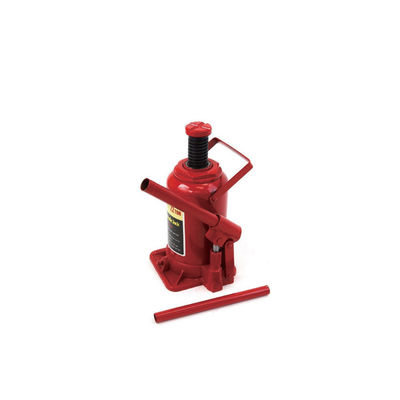

Large Image : YD17-001~010 2-50Ton Hydraulic Jacks: Overload Protection, 2-Piece Handle for Cars/Trucks/Engineering

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD17-001-010

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model:	YD17-001	Capacity:	2
Min.H(mm):	150	Lifting H (mm):	80
AdjustH (mm):	55	Max.H(mm):	285
Highlight:	2-50Ton hydraulic jacks with overload protection , hydraulic jacks for cars and trucks , 2-piece handle hydraulic jacks

YD17-001~010 2-50Ton Hydraulic Jacks: Overload Protection, 2-Piece Handle for Cars/Trucks/Engineering

Model	Capacity	Min.H(mm)	Lifting H (mm)	AdjustH (mm)	Max.H(mm)	N.W (kg)
YD17-001	2	150	80	55	285	2.2
YD17-002	3-4	158	90	60	308	2.8
YD17-003	5-6	195	125	60	380	3.7
YD17-004	8	197	125	60	382	4.2
YD17-005	10	205	125	60	390	5.4
YD17-006	12	205	125	60	390	6.2
YD17-007	15-16	210	125	60	395	6.8
YD17-008	20	225	140	60	425	9.4
YD17-009	30-32	245	145	/	390	13
YD17-010	50	245	140	/	385	19

Product Specifications

Basic Information & Common Parameters

Parameter	Description
Product Type	Manual hydraulic jack for static lifting scenarios including vehicle maintenance, equipment support, and component overhaul
Core Configuration	Overload protection system (10% above rated capacity), large stable base (25% larger area), notched anti-slip saddle, detachable two-piece handle
Working Principle	Manual hydraulic pump operation with pressure range of 25-50MPa (varies by model)
Structural Material	Cylinder: 20#-60# seamless steel pipe (depending on load capacity) Base: 3-8mm cold-rolled steel plate with reinforcing ribs Saddle: Chrome-plated alloy structural steel
Applicable Scope	Family cars, SUVs, light trucks, engineering equipment, and industrial machinery

Key Parameter Comparison by Model

Model	Capacity	Min. Height	Lifting Height	Max. Height	Net Weight	Handle Force
YD17-001 (2T)	2 Ton	150mm	80mm	285mm	2.2kg	≤30N
YD17-002 (3-4T)	3-4 Ton	158mm	90mm	308mm	2.8kg	≤35N
YD17-010 (50T)	50 Ton	245mm	140mm	385mm	19kg	≤70N

Product Features

Full Coverage of 10-Grade Loads

Lightweight Models (2-4T): Portable for car emergencies (2.2-2.8kg)
Medium Models (5-16T): Ideal for auto shops and small equipment
Heavy-Duty Models (20-50T): For engineering and heavy equipment

Triple Safety Protection

Overload protection system prevents cylinder bursting
Large base with notched saddle for anti-slip stability
High-strength materials resist deformation under heavy loads

User-Friendly Operation

Two-piece handle for space-saving storage and flexible operation
Optimized height design for various vehicle types
Lightweight construction for easier handling

Application Scenarios

Car Emergency Tire Replacement (YD17-001)

2.2kg jack easily lifts family cars (1.5-2T) for quick tire changes with built-in safety protection.

Truck Chassis Maintenance (YD17-005)

10T capacity with 125mm lift height provides stable support for light truck maintenance.

Generator Installation (YD17-007)

15-16T capacity with anti-slip features for safe equipment installation.

Loader Overhaul (YD17-010)

50T capacity with high-pressure resistant cylinder for heavy machinery maintenance.
