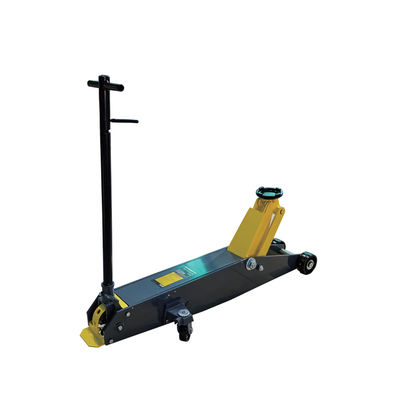

Series 2T/3T/5T/10T Quick Lift Long Stroke Hydraulic Jacks For Heavy Trucks / Engineering

Large Image : Series 2T/3T/5T/10T Quick Lift Long Stroke Hydraulic Jacks For Heavy Trucks / Engineering

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD20-001-005

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Model:	YD20-001	Capacity:	2T (2000kg)
Min. Height:	140mm	Max. Height:	800mm
Weight:	60kg	Key Applications:	Medium SUVs, Light Trucks
Highlight:	heavy truck quick-lift jack , long stroke engineering jack , 2T Hydraulic Jacks And Lifts

YD20 Series Long Chassis Service Jacks (2T/3T/5T/10T)

Professional-grade quick-lift hydraulic jacks designed for heavy-duty vehicles and engineering equipment maintenance, featuring long stroke capabilities and enhanced safety systems.

Core Features & Specifications

Feature	Description
Product Type	Multi-tonnage long chassis service jacks (2T/3T/5T/10T) for heavy-duty vehicle and equipment maintenance
Quick Lift System	Foot-operated pedal reduces lifting preparation time by 60% compared to manual pumping
Mobility	Rear swiveling casters (80mm diameter, polyurethane) for precise positioning
Safety Features	Dual safety valves (overload protection + bypass valve) and anti-slip saddle (≥150*100mm)
Handle Design	One-piece 1200mm high-strength steel pipe for reduced operating force

Model Comparison

Model	Capacity	Min. Height	Max. Height	Weight	Key Applications
YD20-001	2T (2000kg)	140mm	800mm	60kg	Medium SUVs, light trucks
YD20-002	3T (3000kg)	140mm	660mm	60kg	Heavy SUVs, small equipment
YD20-003	3T (3000kg)	140mm	620mm	70kg	Light trucks, agricultural machinery
YD20-004	5T (5000kg)	110mm	560mm	90kg	Medium-duty trucks
YD20-005	10T (10000kg)	170mm	570mm	130kg	Heavy-duty trucks, cranes

Technical Advantages

Efficient Lifting System

Quick-lift pedal: 1-2 presses raise saddle to chassis contact (vs. 10-15 pumps on traditional jacks)
800mm maximum stroke: Provides 60cm+ working clearance (1.3* standard jacks) for comfortable maintenance
Reduces gearbox maintenance time by 50% compared to conventional jacks

Heavy-Duty Construction

Tonnage-specific reinforcement: 10-16mm steel construction with ≤0.3mm deflection under load
Dual safety valves: Overload protection (110% capacity) + bypass valve prevents cylinder bursts
10T model features 16mm steel with ≥500MPa weld strength for extreme conditions

Precision Engineering

180° swiveling casters enable ≤5mm positioning accuracy
Long chassis design (up to 169cm) maintains ≤0.5mm verticality during lifts
Wear-resistant components provide 2* service life of standard jacks

Application Scenarios

Auto Repair Shop - 3T SUV Gearbox Maintenance

Equipment: YD20-002 (3T capacity)

Process: Quick-lift pedal positions saddle in 20 seconds → 660mm lift provides ample workspace → Stable support for 2.5-hour maintenance

Result: 50% faster than conventional jacks with improved technician comfort

Engineering Team - 5T Truck Chassis Inspection

Equipment: YD20-004 (5T capacity)

Process: 110mm minimum height fits low chassis → Dual valves ensure safety during 3-hour work → Sealed system prevents dust ingress

Result: 30% time savings vs. standard 5T jacks requiring additional leveling

Frequently Asked Questions

Q: Can the 5T model lift 5.5T loads?

A: No - the overload protection will activate at 5.5T. For 5.5T loads, use the YD20-005 (10T) model to ensure safety and prevent frame damage.

Q: What if the quick-lift pedal stops working?

A: Check hydraulic oil level first, then inspect for oil circuit blockages or spring failure. Add oil, clean components, or replace springs as needed.

Q: How to move the 130kg 10T model?

A: Use forklifts/pallet trucks for transport. For positioning, two-person operation (one pushes body, one guides casters) reduces effort by 50%.
