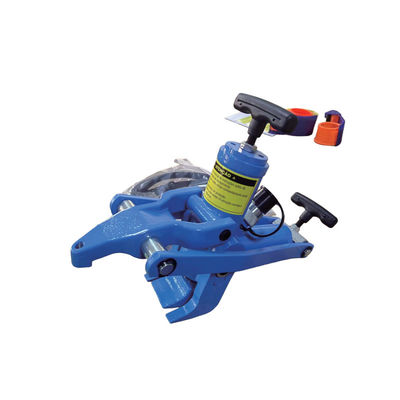

10Ton Combi Bead Breaker: 10,000LBS Force for Truck Tire/Rim Separation (127mm Range)
Product Details
| Model No.: | YD21-005 | Product Type: | Combi Bead Breaker For Heavy-duty Vehicle Tire Disassembly/assembly (trucks, Lorries). Ideal For Auto Repair Shops, Logistics Parks, Truck 4S Stores, And Fleet Maintenance. |
|---|---|---|---|
| Core Performance: | Weight Capacity: 22,000LBS (10,000KGS/10Ton) Max. Working Range: 5" (127mm) Working Force: 10,000LBS (≈44.5kN) | Weight & Packaging: | Gross Weight: 31LBS (14kg) Net Weight: 28.6LBS (13kg) Packaging: 1 Unit/carton (15"×15"×6") |
| Core Configuration: | No-Attachment Design - Ready For Immediate Use Self-Retracting Function - Automatic Pressure Head Retraction High-Strength Alloy Pressure Head (HRC50+ Hardness) Air Hydraulic Pump Compatible (pump Not Included) | Applicable Scope: | Single-piece, Two-piece, And Three-piece Rims (2-hole, 5-hole, 10-hole Flanged Type), 7.50X16 Size Tires, And All Tubeless Truck Tires/rims. Not Applicable To Five-piece Earth Mover Giant Wheels. |
| Highlight |
10Ton combi bead breaker,truck tire bead breaker 10000LBS,127mm bead breaker for rims |
||
Product Description
| Parameter Category | Specific Description |
|---|---|
| Model No. | YD21-005 |
| Product Type | Combi bead breaker for heavy-duty vehicle tire disassembly/assembly (trucks, lorries). Ideal for auto repair shops, logistics parks, truck 4S stores, and fleet maintenance. |
| Core Performance |
|
| Weight & Packaging |
|
| Core Configuration |
|
| Applicable Scope | Single-piece, two-piece, and three-piece rims (2-hole, 5-hole, 10-hole flanged type), 7.50X16 size tires, and all tubeless truck tires/rims. Not applicable to five-piece earth mover giant wheels. |
High-pressure hydraulic structure delivers 10,000LBS force for instant tire bead separation (3-5 seconds vs. 15-20 minutes manually). Attachment-free design reduces setup time from 10 minutes to 30 seconds.
12mm thick cold-rolled steel frame (≥900MPa tensile strength) with alloy pressure head ensures durability under heavy loads. Self-retracting function enhances safety during operation.
5" (127mm) range accommodates various tire sizes without adjustments. At just 13kg net weight, it's 28% lighter than comparable 10Ton bead breakers for easy mobility.
Maintain 7.50X16 tubeless truck tires with 150% faster operation (8 minutes vs. 20 minutes manually). No fatigue after 25+ tires/day.
Emergency tire changes completed in 12 minutes (60% faster than traditional tools). Lightweight design enables quick deployment.
Safe for new-style wheels with no rim damage. Alloy pressure head prevents scratches, improving service quality.
Batch replacement of 10 trucks' snow tires in 3 hours (167% efficiency gain). Mobile-compatible for continuous operation.
A: No. Exceeds 10Ton capacity limit and risks equipment damage/safety hazards.
A: Check: 1) Interface connection, 2) Air pump pressure (0.8MPa), 3) Hydraulic oil level, 4) Pressure relief valve position.
A: Use mobile cart, proper lifting posture (legs, not back), or slide along truck side.
A: Mild wear: Sand and grease. Moderate: Replace head (5-minute process). Severe: Immediate replacement required.
