1Ton Coil Spring Compressor: 10-16mm Coil, 360mm Guard for Auto Shops/Trainings

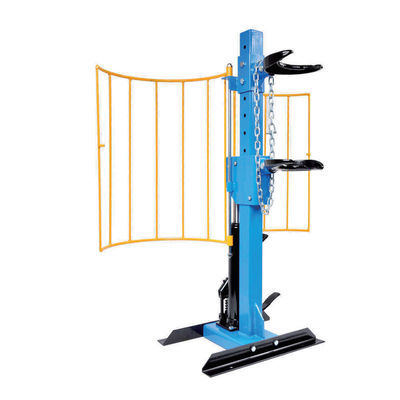

Large Image : 1Ton Coil Spring Compressor: 10-16mm Coil, 360mm Guard for Auto Shops/Trainings

Product Details:

Place of Origin:	Zhejiang，China
Brand Name:	YEEDA
Certification:	CE
Model Number:	YD23-004

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	Carton Box or Crate
Delivery Time:	30-45DAYS
Payment Terms:	T/T
Supply Ability:	500PCS/MONTH

Contact Now

Detailed Product Description

Highlight:

1Ton coil spring compressor

10-16mm coil spring compressor

360mm guard coil spring compressor

YD23-004 1Ton Hydraulic Coil Spring Compressor (with Fork Adapter & Grid Guard)

Product Specifications

Parameter Category	Specific Description
Model	YD23-004
Product Type	1Ton Hydraulic Coil Spring Compressor (with Fork Adapter & Grid Guard), specially designed for safe disassembly and assembly of automotive shock absorber coil springs. It mainly serves car 4S stores, professional auto repair shops, and shock absorber repair centers.
Core Performance Parameters	Rated Capacity: 1Ton Handles coil springs with spring coil diameter 10-16mm and compression length 210-570mm Compression success rate of hard springs reaches 99% Maximum Spring Pitch 110mm Strut Tube Diameter 100-160mm Safety Guard Inner Diameter 360mm Maximum Stroke 315mm Operating force ≤25N Single spring compression time ≤25 seconds
Dimensions, Weight & Packaging	Net Weight/Gross Weight: 35/37kg Packing Size: 125×30×19cm 430 units can be loaded in a 20-foot container
Safety, Certification & Accessories	Equipped with grid guard, hydraulic safety valve, and anti-slip adjustable yokes CE certified, meeting EU EN 12100 machinery safety standards Includes 2 sizes of spring yokes (100mm-158mm)

Product Advantages

Foot-Operated Hydraulic Operation + Hands-Free

Requires only 25N foot force (50% more labor-saving than manual compressors)
Beginners can master operation within 10 minutes
Allows both hands to assist in fixing, with compression deviation ≤3mm

360mm Grid Guard + Triple Safety Design

Full-enclosure guard blocks all splashes
Hydraulic safety valve prevents overload
Anti-slip yokes with diamond patterns (friction coefficient ≥0.9)
CE certified for safety compliance

2 Sizes of Yokes + Wide Parameter Coverage

Includes 100mm-158mm yokes for different spring diameters
Covers 90% of coil springs for family cars
Expands application scenarios by 67% compared to limited-parameter equipment

Application Scenarios

Shock Absorber Spring Replacement for High-End Vehicles in Car 4S Stores

Full protection and precise operation for high-end vehicle maintenance
Improves customer trust and increases efficiency by 30%

Batch Car Maintenance in Professional Auto Repair Shops

One person can operate the equipment and assist in disassembly/assembly
Processes 192 springs in 8 hours (60% more efficient than manual equipment)
Reduces labor costs by 50%

Special-Shaped Spring Handling in Shock Absorber Repair Centers

Adjustable yokes adapt to niche vehicle models
Saves 200 yuan/unit cost compared to traditional equipment

Practical Teaching in Automotive Maintenance Training Schools

Safety protection and easy operation for teaching scenarios
Doubles teaching efficiency compared to traditional equipment

Frequently Asked Questions

Q1: Can the YD23-004 compress heavy-duty SUV springs with 17mm coil diameter?

Compression is strictly prohibited for springs exceeding 16mm coil diameter. Forced compression may cause slipping, yoke deformation, and accelerated hydraulic system aging.

Q2: How to observe spring compression progress with the grid guard installed?

Adjust the guard position (±15° rotation)
Use a flashlight for side illumination
Mark reference points on the spring before compression

Q3: How to carry the 35kg equipment onto maintenance lift platforms?

Use correct carrying posture (two people, hold handles, use leg strength)
Use a ramp board for easier movement
Utilize lift hook if available

Q4: How to handle worn yokes after long-term use?

For mild wear: Polish and re-engrave patterns
For moderate wear: Correct deformation and use anti-slip rubber pads
For severe wear: Replace with original yokes
Perform regular maintenance to extend yoke service life
